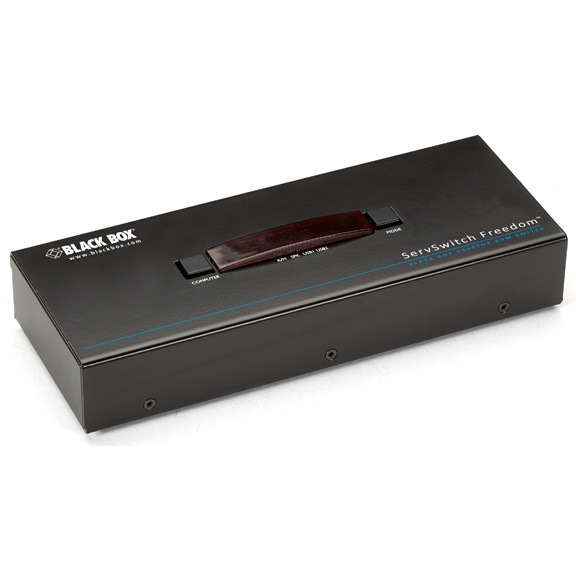

ServSwitch Freedom

Switching between four separate computer systems is as simple as moving a mouse from one monitor to another.

KV0004A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Ideal for command and control centers.
  • Makes for speedy switching between monitors from a tradeshow floor.


  • Description

    ServSwitch Freedom


    Quick Facts

  • Ideal for command and control centers.
  • Makes for speedy switching between monitors from a tradeshow floor.

  • Further Details

  • A flexible, 4-port professional-grade switch for simplifying USB keyboard/mouse access to multiple computers.
  • Switch ports by moving your mouse from monitor to monitor.
  • Enables a single user to switch between four monitors and attached CPUs, and share USB peripherals between them.
  • Features two independent USB 2.0 channels for switching between high-speed USB 2.0 peripherals.
  • Supports "quick-fire" switching via hotkeys, a mouse, or front-panel
  • Features stereo audio.

  • The ServSwitch Freedom™ enables a single USB keyboard/mouse user to easily access information and control operations across four USB computer systems and monitors, saving time and money.

    With the ServSwitch Freedom, you can perform functions that ordinarily would require four separate keyboard/mouse sets—freeing up valuable desktop space and simplifying your work. The Freedom works as if you had an extended desktop on a single computer. Instead, you have four PCs, and all you need to do is configure your screen layout. Switching ports is as simple as moving your mouse cursor over the screens' X and Y borders.

    It's ideal for professionals in command and control applications, such as those in finance on a trading room floor. Not only can users switch between several computers just by moving the mouse, but they can also simultaneously access a mix of USB peripherals, including high-speed USB 2.0 devices.

    When properly configured, the switch has two switched USB Type A ports for the USB 2.0 peripheral connectivity, in addition to its four USB Type B ports for computer channels and two USB Type A ports for USB keyboard/mouse connections.

    The keyboard/mouse, audio, and the two individual USB channels can be collectively or separately switched through to each computer system. You can, for instance, create e-mails on one system, listen to audio on a second system, print from a third computer, and scan documents on another—all at the same time.

    Even better, there's no need to install any software on the connected computers, so setup is simplified and you won't create any security issues in the process—a real concern in government, healthcare, and banking environments.

    In addition, the ServSwitch Freedom works with all known software and operating systems, including Windows®, Linux®, Mac®, Sun™, UNIX®, and NetWare® systems.

    NOTE: Linux®, Mac®, Sun™, UNIX®, and NetWare® systems only support single-head applications, as the drivers do not work with these operating systems.

    What's included:
  • (1) ServSwitch Freedom
  • (1) power adapter with (1) power cord
  • (4) self-adhesive rubber feet
  • Safety guide

  • Technical Specifications for ServSwitch Freedom:

    Approvals CE, RoHS
    Hardware Compatibility All computers with USB interfaces
    User Controls (1) Computer button to change computer channels; (1) Mode button to determine which peripherals are switched
    Connectors CPU/server side: (4) computer channels, each with (1) USB Type B, (1) 3.5-mm stereo audio jack;
    User console: (2) USB Type A (keyboard/mouse), (1) 3.5-mm stereo audio jack;
    User console switched USB: (2) USB 2.0 Type A (emulated USB for HID devices; supports USB 2.0 devices in low-, full-, and high-speed modes);
    RS-232 control/flash upgrade: (1) RJ-45 (modular 10P10C)
    Power External: Input: 100-240 VAC, 50-60 Hz, autosensing;
    Output: 5 VDC, 2.5 amp
    Dimensions 1.6"H x 9.1"W x 3.4"D (4.1 x 23 x 8.6 cm)
    Weight 1.75 lb. (0.8 kg)

    What's included:
    • (1) ServSwitch Freedom
    • (1) power adapter with (1) power cord
    • (4) self-adhesive rubber feet
    • (1) software CD
