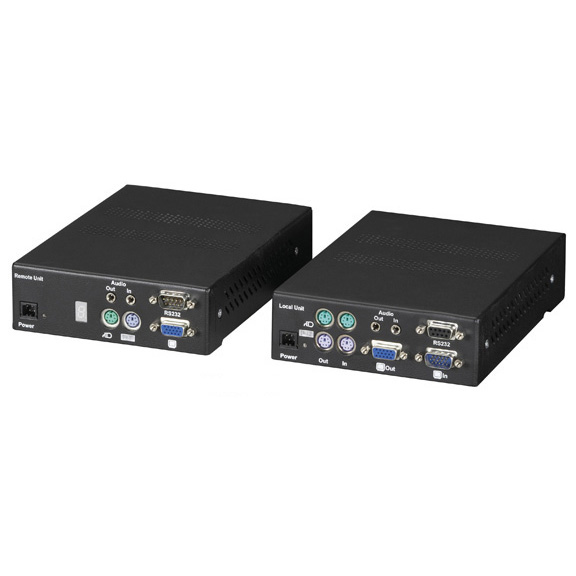

ServSwitch Fiber Optic KVM Extender with Serial and Bidirectional Stereo Audio

Extend KVM signals up to 1 kilometer (0.6 mi.) over multimode fiber with serial and bidirectional audio.

ACS335A-AS

Extended Double Diamond™ Warranty Available (3 Additional Year)

Product Highlights

  • Use your computer at two locations.
  • Resolution up to 1280 x 1024.


  • Further Details

  • Fiber optic cable makes this extender perfect for industrial settings and environments with EMI/RFI.
  • Can handle one serial device requiring hardware handshaking or three 2-wire serial devices requiring TX/RX only. It also transmits bidirectional stereo audio.
  • Connect a set of speakers and a microphone to its receiver unit for multimedia capability.

  • The ServSwitch™ Fiber Optic KVM Extender with Serial and Bidirectional Stereo Audio enables you to send KVM signals from a PC computer up to 1 kilometer (0.6 mi.) to your workstation. But this extender has more going for it than how far it transmits signals. Much more.

    First, your data is secure. Fiber cable doesn't radiate signals and is extremely difficult to tap. If the cable is tapped, it will leak light and cause the entire connection to go down. Fiber cable is immune to lightning strikes, power surges, and EMI/RFI. That makes this extender perfect for electrically noisy and industrial settings.

    The extender enables dual access for a single user. You can have a monitor, keyboard, and mouse connected directly to the computer on the transmitting end of the link and a KVM console on the receiving end.

    The extender enables the transmission of full-duplex serial signals up to 19.2 kbps as well as bidirectional stereo audio signals. Its serial port enables you to connect either one serial device requiring hardware handshaking or—using breakout cable—up to three simple 2-wire serial devices (TX/RX only). Connect a set of speakers and a microphone to its receiver unit for multimedia capability.

    Resolution (Maximum) 1280 x 1024 at 75 Hz
    CE Approval Yes
    Connectors Local unit: Keyboard and mouse: (4) 6-pin mini DIN F;
    Monitor: (1) HD15 M, (1) HD15 F;
    Interconnect: (5) ST;
    Audio: (2) 3.5-mm jacks;
    Serial: (1) DB9 F;
    Remote unit: Keyboard and mouse: (2) 6-pin mini DIN F;
    Monitor: (1) HD15 F;
    Interconnect: (5) ST;
    Remote unit also includes: Audio: (2) 3.5-mm jacks;
    Serial: (1) DB9 M
    Power 90-240 VAC, 47-63 Hz, autosensing, external, with IEC 320 connector and cord
    Size 1.7"H x 7.1"W x 5.2"D (4.3 x 18 x 13.2 cm)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.
