KVM > IP Enabled

click photo to enlarge

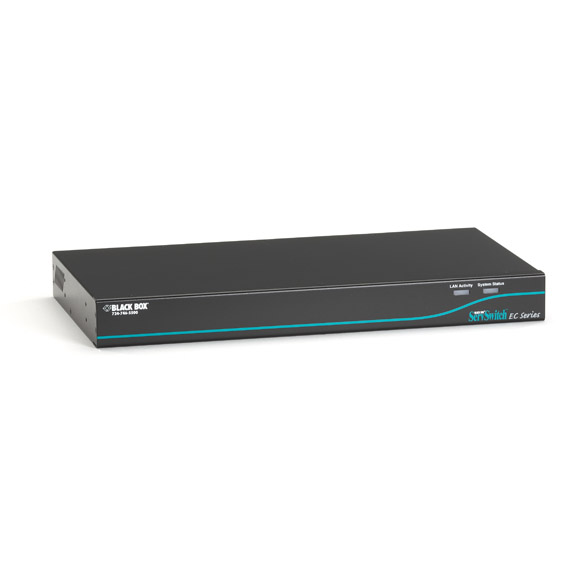

KV9416A

Photo may show similar product

Other views

ServSwitch EC with Built-In IP for PS/2 and USB Servers and USB Consoles, 16-Port

Economical KVM switching using IP for USB consoles.

KV9416A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Access up to 16 servers across any IP network.
  • Local maximum resolution of 1600 x 1200 at 85 Hz.
  • Connect remotely via VNC Client or Java enabled Web browser.

  • Description

    ServSwitch EC with Built-In IP for PS/2 and USB Servers and USB Consoles, 16-Port


    Quick Facts

  • Access up to 16 servers across any IP network.
  • Local maximum resolution of 1600 x 1200 at 85 Hz.
  • Connect remotely via VNC Client or Java enabled Web browser.

  • Further Details

  • Supports USB-style keyboard and mouse.
  • VNC connection opens automatically after login.
  • Dual-function Reset button enables you to reset power or reset everything back to the defaults.
  • Exclusive IP-On-Screen Display (OSD) feature makes setup simple. Simply press the IP Setup button to bring up the IP-OSD.
  • The system administrator can now personalize preference settings for each user.
  • SNMP manageable.
  • Can be used with any Java™ enabled Web browser.
  • Features 16 bits of color depth.
  • Different sizes of screen snapshots are now available.
  • Flash upgradable.
  • Also available in 4- and 8-port models.
  • RoHS compliant.

  • Overcome KVM distance limitations at an economical price by using your Ethernet network and the ServSwitch™ EC with Built-In IP for PS/2 and USB Servers and USB Consoles.

    The switch enables you to use your Web browser to easily and securely access and control remote servers across any TCP/IP network as if they were local. You can even use the Internet to manage servers from home or the road. And with the new dual-function Reset button, you can perform a power reset or reset all settings back to the defaults.

    Remote or local switching is made easy.
    The switch is compatible with any Java-enabled Web browser. Just open the browser, enter the IP address of the switch, and select the server you wish to access. What’s more, this ServSwitch EC is also fully compatible with Virtual Network Computing (VNC) viewers, and a VNC connection opens automatically after login. You can also switch from a local workstation using on-screen menus or hotkeys.

    The ServSwitch EC with Built-In IP for PS/2 and USB Servers and USB Consoles doesn’t skimp on security either. You get all the features you’re looking for such as SSL encryption, SSH tunneling, and RADIUS authentication.

    Setup is now even simpler.
    Simply press the IP Setup button to bring up the new IP On-Screen Display (OSD) feature. It leads you step by step through the setup process without the need to study the manual.

    Following setup, on-screen menus enable you to set up password-protected user accounts. Because different user accounts may have different preferences, you can now personalize preferences for each user. Users (other than the administrator) can’t make changes to the system but can access the Web interface and log into the VNC console. You can also set user accounts to time out after they’ve gone unused for a specified amount of time.

    Additionally, the switch features an internal firewall that, when enabled, causes the ServSwitch EC to only accept logins from listed hosts.

    When a new firmware version is released, it’s easy to upgrade the flash memory. Check your firmware version and update via easy on-screen menus.

    The ServSwitch EC with Built-In IP for PS/2 and USB Servers and PS/2 Consoles integrates easily into your SNMP-managed network. Just use the SNMP menu to configure the switch to be recognized and managed using industry-standard SNMP software.

    You can connect an equal-size or smaller ServSwitch EC slave unit to a master unit ServSwitch EC with IP. A 16-port master switch can connect to both 16- and 8-port slave units. Once connected, all units automatically configure themselves as master or slaves. The 16-port unit can support up to 136 servers when you cascade 8 16-port slave units.

    The 16-port model is rackmountable in only 1U of rack space. Rackmounting hardware is included.


    What’s included:
  • (1) ServSwitch EC with Built-in IP
  • (1) AC power adapter with card
  • (1) USB cable
  • (1) DB9 RS-232 null-modem serial cable
  • (1) set of foot pads
  • (1) 19" rackmount kit with (1) package of screws
  • User’s manual


  • For an on-line remote demo, contact ServSwitch Central™ at 724-746-5500 or by clicking “Talk to an Expert.”


    Technical Specifications for ServSwitch EC with Built-In IP for PS/2 and USB Servers and USB Consoles, 16-Port:

    Resolution (Maximum) — 1600 x 1200 at 85 Hz
    CE Approval — Yes
    Connectors — All: Monitor: (1) HD15 F;
    Keyboard: (1) USB Type A;
    Mouse: (1) USB Type A;
    Ethernet: (1) RJ-45;
    Serial RS-232 (DTE): (1) DB9 M
    (16) HD15 F server ports; 1-R port (for serial device management with KV9-SRL)
    Indicators — LEDs: (1) Link Activity, (1) System Status, (1) Ethernet Activity, (1) System Okay
    Power — 115 VAC, 60 Hz, external
    Size — 1.75"H (1U) x 15.9"W x 8.7"D (4.4 x 40.4 x 22.1 cm)
    For an on-line remote demo, contact ServSwitch Central™ at 724-746-5500 or by clicking “Talk to an Expert.”

    This product works with:
  • ServSwitch EC USB CPU Cables (EHN9000U)
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for ServSwitch EC with Built-In IP for PS/2 and USB Servers and USB Consoles, 16-Port:


    Connect your ServSwitch EC with Built-In IP for PS/2 and USB Servers and USB Consoles, 16-Port with:

    Accessory: EHN9000U-0006

    ServSwitch EC USB Server Cable, 6-ft. (1.8-m)

    ServSwitch EC USB Server Cable, 6-ft. (1.8-m)

    Accessory: EHN9000U-0010

    ServSwitch EC USB Server Cable, 10-ft. (3.0-m)

    ServSwitch EC USB Server Cable, 10-ft. (3.0-m)

    Accessory: EHN9000U-0015

    ServSwitch EC USB Server Cable, 15-ft. (4.5-m)

    ServSwitch EC USB Server Cable, 15-ft. (4.5-m)
