KVM > Server Room/Enterprise KVM

click photo to enlarge

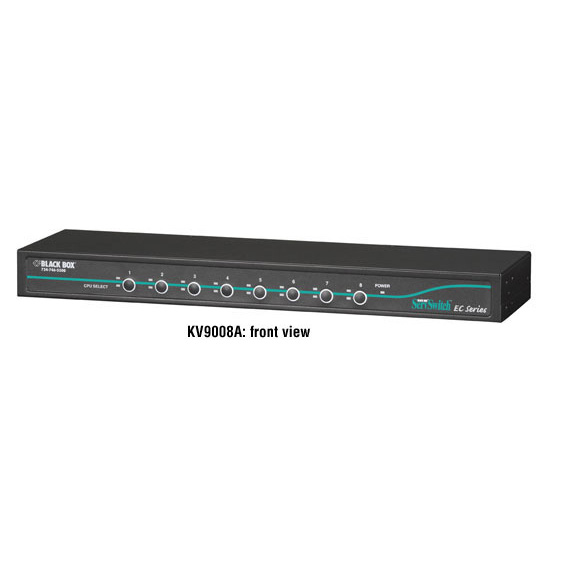

KV9008A

Photo may show similar product

Other views

  • KV9008A
  • KV9008A

ServSwitch EC for PS/2 Servers and Consoles, 8-Port

Control multiple PS/2 servers from your desktop.

KV9008A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Cascade up to 64 servers.
  • Save rack space—only 1U high.
  • Hardware/software transparent and operating system independent for even the most unique networks.


    • Description

    ServSwitch EC for PS/2 Servers and Consoles, 8-Port


    Quick Facts

  • Cascade up to 64 servers.
  • Save rack space—only 1U high.
  • Hardware/software transparent and operating system independent for even the most unique networks.

    • Further Details

  • Autoscan selects servers sequentially and programming function eliminates unused servers from scan.
  • Resolutions up to 1920 x 1440.
  • System settings and computer names stored in nonvolatile memory.
  • Hot-pluggable keyboard and mouse ports.
  • Password protected for added security.
  • Hotkey functions save time and enable quick access.
  • Plug-and-play configuration.
  • DDC2B compatible.
  • Assign unique names to servers.
  • Saves and stores keyboard settings while switching.


    • Our ServSwitch™ EC for PS/2 Servers and Consoles is the perfect—and practical—way to manage multiple PS/2 servers and consoles where usable space is at a premium. Take a look at what this series has to offer!

    Multiply.
    If you set up these units in a cascade configuration, you can rapidly expand and contract system capabilities as your demands change. Cascade up to 64 servers with the 8-port model. Best of all, this ServSwitch EC is plug-and-play, so you can add or subtract servers almost as quickly as you can plug and unplug cables.

    Simplify.
    A simple yet well-designed on-screen display makes these units very easy to use. You can choose names for each server that make sense to you and for your application. Then, you can identify and select each server with those same naming conventions.

    You can monitor the status of each server and use the programmable autoscan function to select your servers sequentially. And you don’t waste time—the autoscan feature filters unused servers from the list automatically so you don’t have to deal with unnecessary information.

    System settings and name entries are stored in nonvolatile memory so you don’t have to worry about a sudden power surge or shutdown wiping out your information.

    The ServSwitch EC also saves your keyboard settings for each server and restores them when you come back to that particular machine.

    Quantify.
    Most of all, this ServSwitch provides tangible results when it comes to network management.

    You save space by eliminating the need for monitors, keyboards, and mice for each server you have. Likewise, you lose the significant costs associated those kinds of redundant purchases.

    Most importantly, you increase control and efficiency by centralizing the management of multiple servers with the same or different platforms—and with network management, that’s the real bottom line.

    NOTE: Master units can only cascade to slave units that have the same or fewer number of ports.

    This product works with:
  • ServSwitch CPU Cables for EC Series and DT Low Profile Series, PS/2, 6- and 10-ft. (EHN70001)
  • ServSwitch CPU Cables for EC Series, PS/2, 15- and 30-ft. (EHN9000P)
    Questions? Contact our FREE Tech Support.


    • Technical Specifications for ServSwitch EC for PS/2 Servers and Consoles, 8-Port:

    Distance (Maximum) — 30 ft. (9.1 m)
    Operating Systems Supported — Windows® 98/Me/XP, Windows NT®, Windows 2000
    Resolution (Maximum) — 1920 x 1440
    User Controls — (8) port selection buttons
    CE Approval — Yes
    Connectors — Server: (8) HD15 F;
    Console: Keyboard: (1) 6-pin mini DIN F;
    Mouse: (1) 6-pin mini DIN F;
    Monitor: (1) HD15 F
    Indicators — LEDs: Per port: (1) computer ready (green), (1) computer selected (red)
    Power — 115 VAC, 60 Hz, external
    Size — 1.75"H (1U) x 17.3"W x 7"D (4.4 x 43.9 x 17.8 cm)
    NOTE: Master units can only cascade to slave units that have the same or fewer number of ports.

    This product works with:
  • ServSwitch CPU Cables for EC Series and DT Low Profile Series, PS/2, 6- and 10-ft. (EHN70001)
  • ServSwitch CPU Cables for EC Series, PS/2, 15- and 30-ft. (EHN9000P)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    • Resources for ServSwitch EC for PS/2 Servers and Consoles, 8-Port:


    Connect your ServSwitch EC for PS/2 Servers and Consoles, 8-Port with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A One year warranty is included.

    Extended Two years for one Warranty Available


    Protect your purchase with an additional Two years for oneDouble Diamond™ warranty!
    Cost: $35.70

    Extended Three years for two Warranty Available


    Protect your purchase with an additional Three years for twoDouble Diamond™ warranty!
    Cost: $71.39

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    The most complete product warranty exclusively from Black Box

    The Double Diamond™ Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most products come with a one- or two-year warranty. Some products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life! Standard Warranty features are as follows:

    Worry-Free Purchases

    If your new Black Box® brand products are accidentally damaged, you're covered with this no-questions asked warranty. FREE

    Coverage

    Double Diamond™ is the standard warranty that comes with your new Black Box® brand product. Most products come with a one- or two-year warranty.

    Lifetime Guarantees

    Many products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life.

    Fast Service

    During the warranty period, Black Box® Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Extra Coverage

    Extend your warranty or protect a previously purchased Black Box® brand product* for an additional year for only 10% of the current retail price! And when you do, we give you the second year of extended coverage free! FREE Tech Support Hotline. No cost. No contracts. No kidding!

    No-Risk 45-Day Return Policy

    If it's not right, send it back.
    (Excludes custom built products)

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! Forget It.
    Tech Support Hotline 100% FREE! $$$
