KVM > Server Room/Enterprise KVM

click photo to enlarge

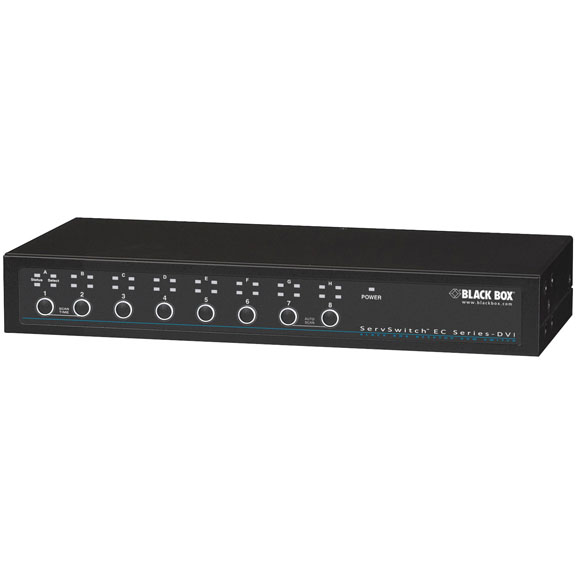

KV9516A

Photo may show similar product

Other views

ServSwitch EC for DVI + USB Servers and DVI + USB Console, 16-Port

Manage and control up to 16 DVI and USB servers from your desktop.

KV9516A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Manage up to 16 servers with this simple plug-and-play KVM switch.
  • Resolutions up to 1920 x 1200.
  • Perfect for small server rooms.
  • 16-port DVI (single link) and USB KVM switch with USB/DVI console.

  • Description

    ServSwitch EC for DVI + USB Servers and DVI + USB Console, 16-Port


    Quick Facts

  • Manage up to 16 servers with this simple plug-and-play KVM switch.
  • Resolutions up to 1920 x 1200.
  • Perfect for small server rooms.
  • 16-port DVI (single link) and USB KVM switch with USB/DVI console.

  • Further Details

  • Unit is 2U high.
  • Supports Microsoft® IntelliMouse® (Pro).
  • Operating system independent and transparent to all applications.
  • Switch with hotkeys, manually, or use autoscan, which selects servers sequentially.
  • Hot-pluggable keyboard/mouse ports.
  • Plug-and-play configuration.
  • DDC2B compatible.


  • Tight quarters.
    Ideal for applications where you have a limited amount of space, the 2U-high 16-port DVI switch can be used on the desktop or mounted in a rack or cabinet.

    Choice in switching.
    Switch between servers using front-panel buttons or hotkeys. Or if you select the autoscan function for automatic switching, the ServSwitch EC will scan and switch between servers, one by one, at an interval that you determine. When autoscan detects any keyboard or mouse activity, it suspends the scanning until activity stops and then resumes with the next computer in sequence.

    Set it and forget it.
    System settings are stored in nonvolatile memory so you don’t have to worry about a power outage wiping out your information. The ServSwitch EC also saves your keyboard settings for each server and restores them when you come back to that machine.

    Check it.
    The front panel includes port LEDs, which light with the corresponding active port when you switch between servers.

    Digital quality.
    With video enhancement technology that ensures superb quality and resolutions up to 1920 x 1200, the ServSwitch EC is DDC2B compatible, so you can use it with the latest digital monitors. What’s more, the switch is operating-system independent and transparent to all applications.

    What’s included:
  • (1) ServSwitch EC
  • (1) universal power supply, 12 VDC, 4.0 A output
  • (1) 6-ft. power cable
  • Set of (4) foot pads
  • (2) mounting brackets
  • Assortment of screws
  • User’s manual

  • Technical Specifications for ServSwitch EC for DVI + USB Servers and DVI + USB Console, 16-Port:

    Autoscan Intervals — 3, 8, 15, and 30 seconds
    Cable Length (Maximum) — At console: 15 ft. (4.5 m);
    At PC ports for USB server: 15 ft. (4.5 m)
    Operating Systems Supported — Windows® 98/Me/Windows XP®, Windows NT®, Windows 2000, Windows Vista®, Windows 7, Mac OS®
    Resolution (Maximum) — 1920 x 1200
    User Controls — (8) dual-function selection buttons
    CE Approval — Yes
    RoHS — Yes
    Connectors — Server: (16) DVI-I (digital only), (16) USB Type B F;
    Console: Keyboard/Mouse: (2) USB Type A F;
    Monitor: (1) DVI-I F (digital only)
    Indicators — LEDs: (2) per port, (1) power per unit
    Power — External power supply: Input; 100–240 VAC, 50–60 Hz; Output: 12 VDC, 4A
    Size — 2.6"H (2U) x 17.25"W x 9"D (6.6 x 43.8 x 22.9 cm)
    Weight —8.4 lb. (3.8 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for ServSwitch EC for DVI + USB Servers and DVI + USB Console, 16-Port:

    Manuals

    • ServSwitch EC for DVI + USB Servers and DVI + USB Console
      (Version 1)


    Connect your ServSwitch EC for DVI + USB Servers and DVI + USB Console, 16-Port with:

    Accessory: EHN900024U-0006

    ServSwitch DVI Cable, 6-ft. (1.8-m)

    ServSwitch DVI Cable, 6-ft. (1.8-m)
