ACS2209A-R2-SM

Photo may show similar product

Other views

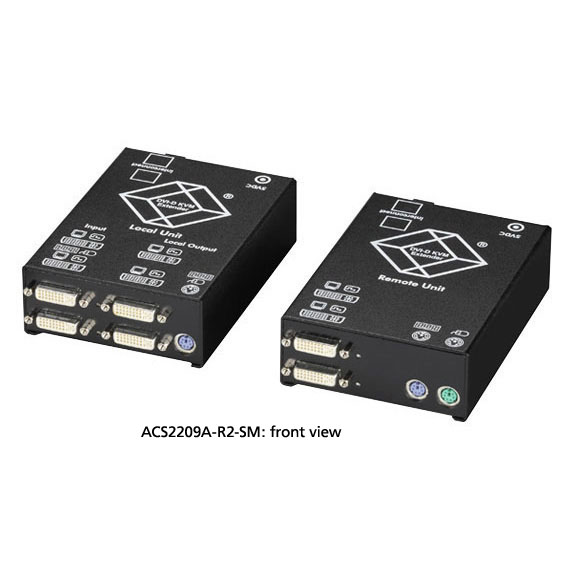

ServSwitch™ Dual DVI Fiber Optic KVM Extender, PS/2, Single-Mode

Connect up to two DVI-D monitors to your computer and at a remote KVM console.

ACS2209A-R2-SM

Extended Double Diamond™ Warranty Available (3 Additional Year)

Product Highlights

  • Brings versatile KVM extension capability to your DVI-D video application!
  • Transmits keyboard, mouse, and DVI-D video signals up to 6.2 miles (10 km) over single-mode fiber!


  • Further Details

  • Provides dual access for a single user. You can connect a monitor, keyboard, and mouse to the computer and have a KVM console on the remote end. Use your computer at either location!
  • Enables you to connect up to two DVI-D monitors to the computer and at the remote KVM console.

    Our ServSwitch™ Dual DVI Fiber Optic KVM Extender for PS/2® enables you to send keyboard, mouse, and DVI-D video signals up to 6.2 miles (10 km) over single-mode fiber.

    This extender is built for computers with dual video heads. It enables you to connect up to two DVI-D monitors directly to the computer on the transmitting end of the link and two DVI-D monitors at the receiving KVM console. It works with a PS/2 keyboard and mouse over fiber.

    With more monitors connected to your computer, you can put a different application on each monitor. And if you have an application that uses lots of small windows, you can expand it across both monitors to provide more work space. Now that's versatility!

  • Distance (Maximum) Over 9-µm single-mode: 6.2 mi. (10 km)
    Operating Environment Temperature: 41 to 113° F (5 to 45° C);
    Humidity: Up to 80% noncondensing
    Resolution (Maximum) 1600 x 1200 @ 60 Hz
    CE Approval Yes
    Connectors Local unit: Keyboard and mouse: (1) 6-pin mini DIN F; Monitor: (4) DVI-D F; Interconnect: (2) RJ-45;
    Remote unit: Keyboard and mouse: (2) 6-pin mini DIN F; Monitor: (2) DVI-D F; Interconnect: (2) RJ-45
    Power 90-240 VAC, 47-63 Hz, autosensing, external, with IEC 320 connector and cord
    Size Local and remote units: 1.6"H x 4"W x 5.6"D (4.1 x 10.2 x 14.2 cm) each
    Weight Local and remote units: 1.3 lb. (0.6 kg) each


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.

    Manuals

    • DVI-D Fiber KVM Extender Single and Dual Head
      Installation and User Guide

    Product Data Sheets

    Black Box Explains


    Accessory: ACS2009A-R2

    ServSwitch Single DVI CATx KVM Extender, PS/2

    ServSwitch Single DVI CATx KVM Extender for PS/2

    Accessory: ACS4001A-R2

    ServSwitch Single DVI CATx KVM Extender, USB

    ServSwitch™ Single DVI CATx KVM Extender, USB

    Double Diamond Warranty
    Extended Double Diamond™ Warranty Available (3 Additional Year)
    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    The ServSwitch™ Dual DVI Fiber Optic KVM Extender, PS/2, Single-Mode comes with a standard 2 Year warranty already included.

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!*

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product** for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Warranty subject to certain exclusions and limitations
    ** Certain products may not be eligible.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.
