KVM > Extenders

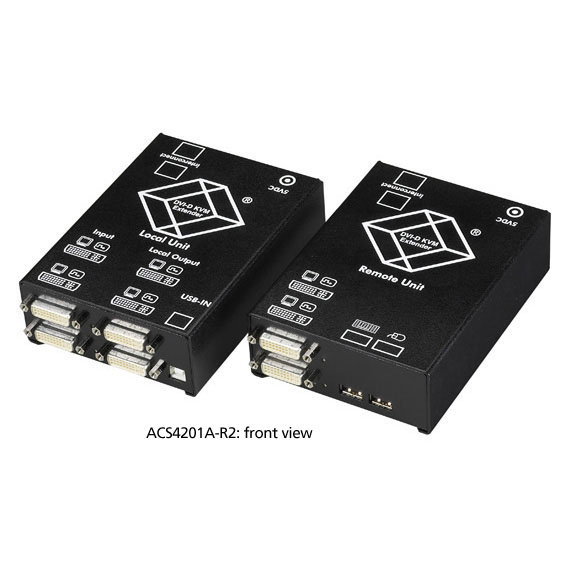

click photo to enlarge

ACS4201A-R2

Photo may show similar product

Other views

ServSwitch Dual DVI CATx KVM Extender, USB

Transmit keyboard, mouse, and DVI-D video signals up to 400 feet over CATx cable.

ACS4201A-R2

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Now supports 1920 x 1200 resolution with adaptive 18/21-bit color depth.
  • Brings dual DVI KVM extension capabilities to your DVI-D video applications.
  • Enables dual access for a single user. Connect a monitor, keyboard, and mouse to the computer and have a KVM console on the remote end. Use your computer at either location!

  • Description

    ServSwitch™ Dual DVI CATx KVM Extender, USB


    Quick Facts

  • Now supports 1920 x 1200 resolution with adaptive 18/21-bit color depth.
  • Brings dual DVI KVM extension capabilities to your DVI-D video applications.
  • Enables dual access for a single user. Connect a monitor, keyboard, and mouse to the computer and have a KVM console on the remote end. Use your computer at either location!

  • Further Details

  • Uses inexpensive CAT5/5e/6 cable.


  • With ServSwitch™ Dual DVI CATx KVM Extender, USB, you can send your keyboard, mouse, and DVI-D video signals up to 400 feet (122 m) over CAT5, CAT5e, or CAT6 cable. This new version has 1920 x 1200 resolution at 60 Hz and adaptive 18/21-bit color depth. It also features more memory for firmware and 256-byte DDC.

    This USB extender works with a USB keyboard and mouse. Connect a keyboard, mouse, and up to two DVI-D monitors directly to the computer on the transmitting end of the link and a KVM console with up to two DVI-D monitors on the receiving end. This method of dual access enables you to use your computer at either location.

    This KVM extender is built for today’s computers with dual video heads—you can connect up to two DVI-D monitors directly to the computer on the transmitting end of the link and two DVI-D monitors at the receiving KVM console.

    Imagine what you can do with more monitors connected to your computer. You can put a different application on each monitor to eliminate tedious switching between applications. Or if you have an application that uses lots of small windows, you can expand it across both monitors to provide more work space.
    What's included:
  • DVI-D CATx KVM Extender pair (local unit and remote unit)
  • (2) 5V DC universal power supplies
  • (2) power cords
  • (2) DVI-I video cables
  • USB cable
  • Questions? Contact our FREE Tech Support.


    Technical Specifications for ServSwitch Dual DVI CATx KVM Extender, USB :

    Distance (Maximum) — 24 AWG: 400 ft. (121.9 m);
    26 or 28 AWG: 200 ft. (60.9 m)
    Operating Environment — Temperature: 41 to 113° F (5 to 45° C);
    Humidity: Up to 80% noncondensing
    Resolution (Maximum) — 1920 x 1200 at 60 Hz
    CE Approval — Yes
    Connectors — Local unit: Keyboard and mouse: (1) USB Type B F; Monitor: (4) DVI-D F; Interconnect: (2) RJ-45;
    Remote unit: Keyboard and mouse: (2) USB Type A F; Monitor: (2) DVI-D F; Interconnect: (2) RJ-45
    Power — 90–240 VAC, 47–63 Hz, autosensing, external, with IEC 320 connector and cord
    Size — Local and remote units: 1.6"H x 4"W x 5.6"D (4.1 x 10.2 x 14.2 cm) each
    Weight — Local and remote units: 1.3 lb. (0.6 kg) each


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for ServSwitch Dual DVI CATx KVM Extender, USB :

    Product Data Sheets

    Software

    • ServSwitch Brand KVM Extender Software

    Black Box Explains


    Connect your ServSwitch Dual DVI CATx KVM Extender, USB with:
