KVM > Extenders

click photo to enlarge

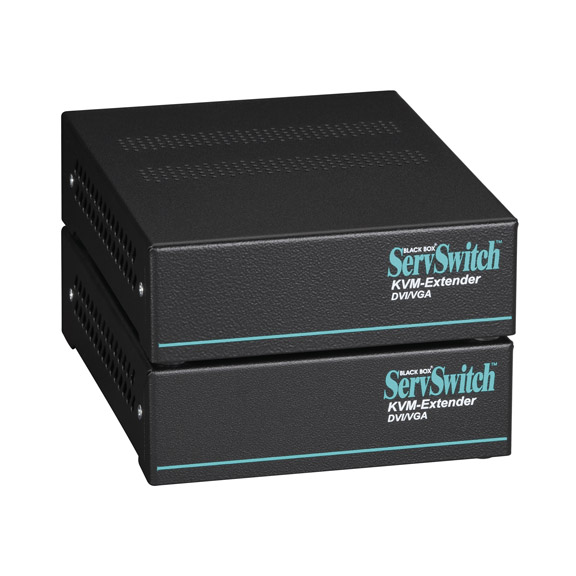

ACS253A-U-SM-R2

Photo may show similar product

Other views

  • ACS253A-U-SM-R2
  • ACS253A-U-SM-R2

ServSwitch DVI/VGA Fiber Extenders with USB

Extend KVM signals up to 6.2 miles over single-mode between your computer and remote USB console!

ACS253A-U-SM-R2

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Combine VGA and DVI video in your KVM extension applications.
  • 1600 x 1200 resolution for local VGA access; 1280 x 1024 resolution for local DVI access.
  • Connect control room monitors, keyboards, and mice to factory floor CPUs.


    • Description

    ServSwitch DVI/VGA Fiber Extenders with USB, Single-Mode


    Quick Facts

  • Combine VGA and DVI video in your KVM extension applications.
  • 1600 x 1200 resolution for local VGA access; 1280 x 1024 resolution for local DVI access.
  • Connect control room monitors, keyboards, and mice to factory floor CPUs.

    • Further Details

  • Rugged steel enclosure.
  • Includes Type A connectors for your USB keyboards, mice, and peripherals.
  • Plug as many as four USB version 1.1 peripherals into the remote unit, or even more if you add a USB hub.
  • Multimode version also available.

    • Send both digital DVI and analog VGA signals over fiber optic cabling to a remote site with the easy-to-install ServSwitch™ DVI/VGA Fiber Extenders with USB.

    The kit includes a local unit (transmitter) and remote unit (receiver) that communicate with one another via a fiber interconnection. Connect the local unit to the computer CPU or server directly with the included USB Type A to Type B cable and attach your KVM console to the remote unit. Plus you can plug as many as four USB peripherals into the remote unit—or even more if you add a USB hub.

    Video flexibility.
    You can use the extenders with today’s top-of-the-line DVI video displays, which feature both excellent picture quality and higher-transfer bandwidths. What’s more, there’s no loss of picture quality no matter what the distance transmitted. Built-in video processors determine the best resolution and pixel phase for optimized digitization.

    Even though the extenders work best when you use DVI output from your computer’s video card and DVI input to a monitor, they’re flexible enough to use with just VGA equipment, too.

    You can even use a mix of both DVI and VGA devices, because the ServSwitch DVI/VGA Fiber Extenders with USB support all combinations of DVI and VGA graphics cards and monitors.

    Easy to fine-tune.
    Upgrade firmware through the programming port, too. Just plug in the included programming cable to transfer updates that you download from the Black Box Web site. All settings are stored in EEPROM memory.

    For diagnostic purposes, both local and remote units feature LEDs that indicate link status, when the devices are ready, and when the units detect a video signal or valid mode. There’s also an LED to inform you of any communication errors.

    What’s included:
  • Local unit
  • Remote unit
  • (2) universal power supplies and cords
  • (2) DVI-I male to VGA HD15 female adapter cables
  • DVI-I female to VGA HD15 male adapter cable
  • DVI-I male to female video cable
  • USB Type A to Type B cable
  • DB9 male to RJ-11 programming cable
  • User’s manual


    • Technical Specifications for ServSwitch DVI/VGA Fiber Extenders with USB:

    Chassis — Each unit: Metal case
    Distance (Maximum) — 6.2 mi. (10 km) with 9-/125-µm cable
    Operating Environment — Temperature: 50 to 113° F (10 to 45° C);
    Humidity: 80% noncondensing
    Resolution (Maximum) — Monitor: VGA, DVI: 1600 x 1200 at 60 Hz;
    Local access: VGA: 1600 x 1200;
    DVI: 1280 x 1024
    Video Compatibility — Analog: VGA to UXGA (separate sync, composite sync, or sync-on-green);
    Digital: DVI
    Wavelength — 1300 nm
    CE Approval — Yes
    Connectors — Local unit: USB Port Type B F; Programming: (1) RJ-11; Monitor: (1) DVI-I F; Interconnect: (1) pair of SC;
    Remote unit: USB ports: (4) USB Type A F; Programming: (1) RJ-11; Monitor: (1) DVI-I F; Interconnect: (1) pair of SC
    Indicators — Each unit: (4) LEDs: Communication Error, Link Status, Device Ready, Video Signal/Mode Detection
    Power — 90–240 VAC, 47–63 Hz, autosensing, with IEC 320 connector and cord
    Size — Each unit: 1.75"H (1U) x 6.7"W x 5.2"D (4.4 x 17 x 13.2 cm)
    Weight — Each unit: 2.2 lb. (1 kg)
    These products work with:
  • Ceramic Terminated Multimode Fiber Optic Cables (EFN4025)
  • Single-Mode Duplex Fiber Optic Cables (EFN5010)
  • Universal Serial Bus (USB) Cable
  • USB 2.0 (4-Port) Hub (IC147A-R3)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    • Resources for ServSwitch DVI/VGA Fiber Extenders with USB:

    Manuals

    • ServSwitch DVI/VGA CATx Extender Manual
      Manual for ACS253A-CT, ACS253A-U-MM-R2, ACS253A-MM, ACS253A-U-SM-R2 and ACS253A-SM (Version 2)
      httpftp

    Product Data Sheets

    Software

    • ServSwitch DVI/VGA Extender Software
      Software for the ACS253A-CT, ACS253A-MM, ACS253A-SM, ACS253A-U-MM-R2, and ACS253A-U-SM-R2
