KVM > Extenders

click photo to enlarge

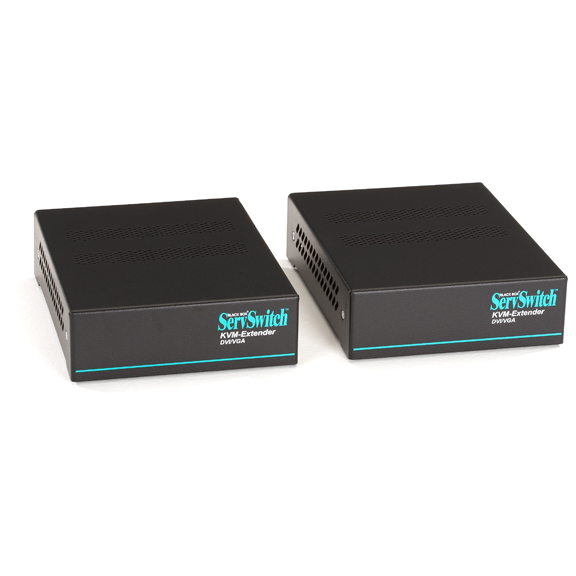

ACS253A-SM

Photo may show similar product

Other views

ServSwitch DVI/VGA Fiber Extender, Single-Mode

Use a PS/2 keyboard and mouse to access VGA and DVI-I equipment locally or remotely over a 2-strand single-mode or multimode fiber link using ST® connectors.

ACS253A-SM

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Extend PS/2® computers with just one PS/2 keyboard, one PS/2 mouse, and one DVI or VGA monitor.
  • Resolution up to 1600 x 1200.
  • Perfect image quality even at single-mode’s maximum distance of 6.2 miles (10 km)!
  • Ideal for air traffic control systems, passenger information systems, and co-locating a user’s computers in a call center. You can also place these extenders in industrial settings.

  • Description

    ServSwitch DVI/VGA Fiber Extender, Single-Mode


    Quick Facts

  • Extend PS/2® computers with just one PS/2 keyboard, one PS/2 mouse, and one DVI or VGA monitor.
  • Resolution up to 1600 x 1200.
  • Perfect image quality even at single-mode’s maximum distance of 6.2 miles (10 km)!
  • Ideal for air traffic control systems, passenger information systems, and co-locating a user’s computers in a call center. You can also place these extenders in industrial settings.

  • Further Details

  • Combine VGA and DVI video in your extension applications.
  • Access VGA and DVI equipment locally and remotely.
  • On-screen display enables easy video adjustments.
  • Flexible architecture is ready for future changes—and you can download the latest firmware upgrades into the unit’s Flash ROM!
  • Multimode and single-mode models are available.

  • With flat-panel displays becoming more popular, you need an extender that can drive DVI or VGA video signals over fiber optic cables—and that’s exactly what our ServSwitch™ DVI/VGA Fiber Extenders do! They support DVI extension with resolutions up to 1600 x 1200 at distances up to 1312.3 feet (400 m) over multimode—or up to 6.2 miles (10 km) over single-mode!

    DVI/VGA Fiber Extenders also support traditional analog VGA as well, so you can mix DVI and VGA equipment in your application. If you use VGA equipment today but plan to upgrade to DVI in the near future, this extender is ready for the changeover. Our DVI/VGA Fiber Extenders also include Flash ROM memory, so you can download the latest software enhancements from our FTP site!

    You can have your server locked up in a safe, secure room and have access to it from your remote workstation. With their on-screen display, the extenders make adjusting your video a simple matter.

    These extenders are perfect for KVM extension applications that demand exceptional image quality.

    For DVI/VGA combinations over UTP, check out our ServSwitch DVI/VGA CATx Extender (ACS253A-CT).

    What's included:
  • Local unit
  • Remote unit
  • (2) power supplies and cords
  • (2) DVI-I male to VGA HD15 female adapter cables
  • DVI-I female to VGA HD15 male adapter cable
  • 3-in-1 PS/2 DVI cable to CPU
  • User's manual

  • These products work with:
    • Ceramic Terminated Multimode Fiber Optic Cable, SC–SC (EFN4025)
    • Single-Mode Duplex Fiber Optic Cable, SC–SC (EFN5010)
    Questions? Contact ServSwitch Central™ at 724-746-5500 or by clicking “Talk to a Tech.”


    Technical Specifications for ServSwitch DVI/VGA Fiber Extender, Single-Mode:

    Chassis — Each unit: Metal case
    Compatibility — Keyboard: PS/2®;
    Video: VGA, DVI;
    Mouse: PS/2 mouse only (user)
    Distance (Maximum) — Multimode: 656.1 ft. (200 m) using 62.5-/125-µm cable, 1312.3 ft. (400 m) with 50-/125-µm cable;
    Single-mode: 6.2 mi. (10 km) using 9-/125-µm cable
    Resolution (Maximum) — 1600 x 1200 at 60 Hz; lower resolutions operate at 75 Hz
    CE Approval — Yes
    Connectors — Local unit: Keyboard: (2) 6-pin mini DIN F; Mouse: (2) 6-pin mini DIN F; Monitor: (2) DVI-I F; Interconnect: (1) pair of SC;
    Remote unit: Keyboard: (1) 6-pin mini DIN F; Mouse: (1) 6-pin mini DIN F; Monitor: (1) DVI-I F; Interconnect: (1) pair of SC
    Indicators — Each unit: (4) LEDs: Communication Error, Link Status, Device Ready, Video Signal/Mode Detection
    Power — 90–240 VAC, 47–63 Hz, external, autosensing, with IEC 320 connector and cord
    Size — Each unit: 1.75"H (1U) x 6.7"W x 5.2"D (4.4 x 17 x 13.2 cm)
    These products work with:
    • Ceramic Terminated Multimode Fiber Optic Cable, SC–SC (EFN4025)
    • Single-Mode Duplex Fiber Optic Cable, SC–SC (EFN5010)
    Questions? Contact ServSwitch Central™ at 724-746-5500 or by clicking “Talk to a Tech.”

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for ServSwitch DVI/VGA Fiber Extender, Single-Mode:

    Manuals

    • ServSwitch DVI/VGA CATx Extender Manual
      Manual for ACS253A-CT, ACS253A-U-MM-R2, ACS253A-MM, ACS253A-U-SM-R2 and ACS253A-SM (Version 2)

    Product Data Sheets

    Application Diagrams

    Software

    • ServSwitch DVI/VGA Extender Software
      Software for the ACS253A-CT, ACS253A-MM, ACS253A-SM, ACS253A-U-MM-R2, and ACS253A-U-SM-R2

    Black Box Explains


    Connect your ServSwitch DVI/VGA Fiber Extender, Single-Mode with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A Two year warranty is included.

    Extended Two years for one Warranty Available


    Protect your purchase with an additional Two years for oneDouble Diamond™ warranty!
    Cost: $432.20

    Extended Three years for two Warranty Available


    Protect your purchase with an additional Three years for twoDouble Diamond™ warranty!
    Cost: $864.39

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    The most complete product warranty exclusively from Black Box

    The Double Diamond™ Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most products come with a one- or two-year warranty. Some products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life! Standard Warranty features are as follows:

    Worry-Free Purchases

    If your new Black Box® brand products are accidentally damaged, you're covered with this no-questions asked warranty. FREE

    Coverage

    Double Diamond™ is the standard warranty that comes with your new Black Box® brand product. Most products come with a one- or two-year warranty.

    Lifetime Guarantees

    Many products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life.

    Fast Service

    During the warranty period, Black Box® Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Extra Coverage

    Extend your warranty or protect a previously purchased Black Box® brand product* for an additional year for only 10% of the current retail price! And when you do, we give you the second year of extended coverage free! FREE Tech Support Hotline. No cost. No contracts. No kidding!

    No-Risk 45-Day Return Policy

    If it's not right, send it back.
    (Excludes custom built products)

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! Forget It.
    Tech Support Hotline 100% FREE! $$$
    Product SKU Price Quantity
    ServSwitch DVI/VGA Fiber Extender, Single-Mode ACS253A-SM $4,321.95

    ServSwitch DVI/VGA Fiber Extender, Multimode ACS253A-MM $3,806.95
