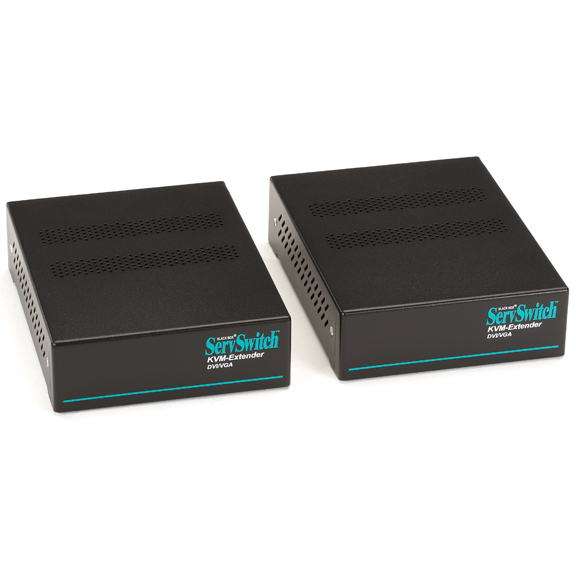

ACS253A-MM

Photo may show similar product

Other views

ServSwitch DVI/VGA Fiber Extender, Multimode

Use a PS/2 keyboard and mouse to access VGA and DVI-I equipment locally or remotely over a multimode fiber link using SC connectors.

ACS253A-MM

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Extend PS/2 computers with just one PS/2 keyboard, one PS/2 mouse, and one DVI or VGA monitor.
  • Resolution up to 1600 x 1200.
  • Ideal for air traffic control systems, passenger information systems, and co-locating a user's computers in a call center. You can also place this extender in industrial settings.


  • Description

    ServSwitch DVI/VGA Fiber Extender, Multimode


    Quick Facts

  • Extend PS/2 computers with just one PS/2 keyboard, one PS/2 mouse, and one DVI or VGA monitor.
  • Resolution up to 1600 x 1200.
  • Ideal for air traffic control systems, passenger information systems, and co-locating a user's computers in a call center. You can also place this extender in industrial settings.

  • Further Details

  • Combine VGA and DVI video in your extension applications.
  • Access VGA and DVI equipment locally and remotely.
  • On-screen display enables easy video adjustments.
  • Flexible architecture is ready for future changes—and you can download the latest firmware upgrades into the unit's Flash ROM.

  • With flat-panel displays becoming more popular, you need an extender that can drive DVI or VGA video signals over fiber optic cables—and that's exactly what our ServSwitch™ DVI/VGA Fiber Extender does. It supports DVI extension with resolutions up to 1600 x 1200 at distances up to 1312.3 feet (400 m) over multimode.

    The DVI/VGA Fiber Extender also supports traditional analog VGA as well, so you can mix DVI and VGA equipment in your application. If you use VGA equipment today but plan to upgrade to DVI in the near future, this extender is ready for the changeover. Our DVI/VGA Fiber Extender also includes Flash ROM memory, so you can download the latest software enhancements from our FTP site.

    You can have your server locked up in a safe, secure room and have access to it from your remote workstation. With its on-screen display, the extender makes adjusting your video a simple matter.

    A single-mode model is also available (ACS253A-SM).

    This extender is perfect for KVM extension applications that demand exceptional image quality.

    For DVI/VGA combinations over UTP, check out our ServSwitch DVI/VGA CATx Extender (ACS253A-CT).

    What's included:
    • Local unit
    • Remote unit
    • (2) power supplies and cords
    • (2) DVI-I male to VGA HD15 female adapter cables
    • DVI-I female to VGA HD15 male adapter cable
    • 3-in-1 PS/2 DVI cable to CPU
    • User's manual


    Technical Specifications for ServSwitch DVI/VGA Fiber Extender, Multimode:

    Chassis Each unit: Metal case
    Compatibility Keyboard: PS/2;
    Video: VGA, DVI;
    Mouse: PS/2 mouse only (user)
    Distance (Maximum) 656.1 ft. (200 m) using 62.5-/125-µm cable, 1312.3 ft. (400 m) with 50-/125-µm cable
    Resolution (Maximum) 1600 x 1200 at 60 Hz; lower resolutions operate at 75 Hz
    CE Approval Yes
    Connectors Local unit: Keyboard: (2) 6-pin mini DIN F; Mouse: (2) 6-pin mini DIN F; Monitor: (2) DVI-I F; Interconnect: (1) pair of SC;
    Remote unit: Keyboard: (1) 6-pin mini DIN F; Mouse: (1) 6-pin mini DIN F; Monitor: (1) DVI-I F; Interconnect: (1) pair of SC
    Indicators Each unit: (4) LEDs: Communication Error, Link Status, Device Ready, Video Signal/Mode Detection
    Power 90-240 VAC, 47-63 Hz, external, autosensing, with IEC 320 connector and cord
    Size Each unit: 1.75"H (1U) x 6.7"W x 5.2"D (4.4 x 17 x 13.2 cm)

    This product works with:
  • Ceramic Terminated Multimode Fiber Optic Cable, SC–SC (EFN4025)
  • Single-Mode Duplex Fiber Optic Cable, SC–SC (EFN5010)
  • Questions? Contact ServSwitch Central™ at 724-746-5500 or by clicking "Talk to a Tech."

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for ServSwitch DVI/VGA Fiber Extender, Multimode:

    Manuals

    • ServSwitch DVI/VGA CATx Extender Manual
      Manual for ACS253A-CT, ACS253A-U-MM-R2, ACS253A-MM, ACS253A-U-SM-R2 and ACS253A-SM (Version 2)

    Product Data Sheets

    Application Diagrams

    Software

    • ServSwitch DVI/VGA Extender Software
      Software for the ACS253A-CT, ACS253A-MM, ACS253A-SM, ACS253A-U-MM-R2, and ACS253A-U-SM-R2
