KVM > Extenders

click photo to enlarge

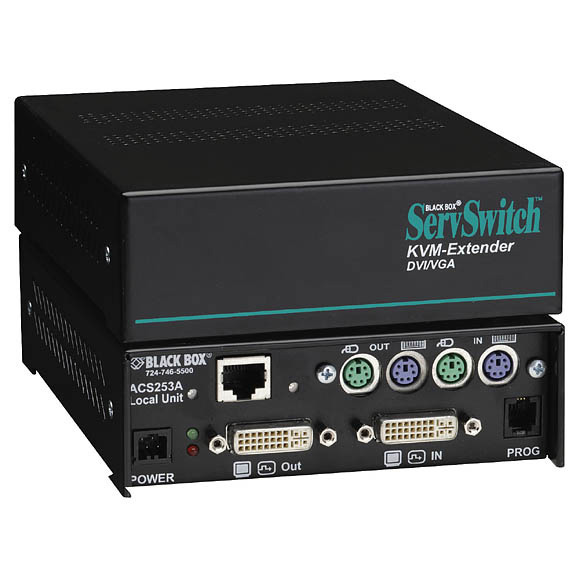

ACS253A-CT

Photo may show similar product

Other views

ServSwitch DVI/VGA CATx Extender

Extend analog VGA and digital DVI video signals over CAT5, CAT5e, or CAT6 UTP cable!

ACS253A-CT

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Supports DVI extension with resolutions up to 1600 x 1200 at distances up to 328.1 feet (100 m) over CATx cable.
  • Perfect for CPUs with multihead video.
  • Provide high video resolutions at long distances—up to 1600 x 1200 at 60 Hz at 328.1 feet (100 m).
  • Enable you to put more than 900 feet between your CPU and keyboard, mouse, and monitors.

  • Description

    ServSwitch DVI/VGA CATx Extender


    Quick Facts

  • Supports DVI extension with resolutions up to 1600 x 1200 at distances up to 328.1 feet (100 m) over CATx cable.
  • Perfect for CPUs with multihead video.
  • Provide high video resolutions at long distances—up to 1600 x 1200 at 60 Hz at 328.1 feet (100 m).
  • Enable you to put more than 900 feet between your CPU and keyboard, mouse, and monitors.

  • Further Details

  • Work over CAT5, CAT5e, and CAT6 cables.
  • Extender units available for sending serial port data and near-digital quality audio.
  • Remote Duo and Quad units include built-in skew compensator. Fine-tune monitor images with ease.

    With flat-panel displays becoming more popular, you need an extender that can drive DVI or VGA video signals over CAT5, CAT5e, or CAT6 cable. And that’s exactly what our ServSwitch DVI/VGA CATx Extender does! It supports DVI extension with resolutions up to 1600 x 1200 at distances up to 328.1 feet (100 m).

    The DVI/VGA CATx Extender also supports traditional analog VGA as well, so you can mix VGA and DVI equipment in your application. If you use VGA equipment today but plan to upgrade to DVI in the near future, this extender is ready for the changeover. The DVI/VGA CATx Extender also includes Flash ROM memory, so you can download the latest software enhancements from our FTP site!

    You can have your server locked up in a safe, secure room and have access to it from your remote workstation. With its on-screen display, the extender makes adjusting your video a simple matter.

    The DVI/VGA CATx Extender is perfect for KVM extension applications that demand exceptional image quality. It’s also ideal for air traffic control systems, passenger information systems, and co-locating a user’s computers in a call center.

    For DVI/VGA combinations over fiber, check out our ServSwitch DVI/VGA Fiber Extenders (ACS253A-MM, ACS253A-SM).

    What’s included:
    • Local unit
    • Remote unit
    • (2) power supplies and cords
    • (2) DVI-I male to VGA HD15 female adapter cables
    • DVI-I female to VGA HD15 male adapter cable
    • 3-in-1 PS/2 DVI cable to CPU
    • User’s manual

  • Technical Specifications for ServSwitch DVI/VGA CATx Extender:

    Chassis — Each unit: Metal case
    Compatibility — Keyboard: PS/2®;
    Video: VGA, DVI;
    Mouse: PS/2 mouse only (user)
    Distance (Maximum) — 328.1 ft. (100 m) over CAT5, CAT5e, or CAT6 cable
    Operating Environment — Temperature: 50 to 113º F (10 to 45º C);
    Humidity: 0 to 80% noncondensing
    Resolution (Maximum) — 1600 x 1200 at 60 Hz; lower resolutions operate at 75 Hz
    Software — Flash ROM for firmware upgrades
    CE Approval — Yes
    Connectors — Local unit: Keyboard: (2) 6-pin mini DIN F; Mouse: (2) 6-pin mini DIN F; Monitor: (2) DVI-I F; Interconnect: (1) RJ-45;
    Remote unit: Keyboard: (1) 6-pin mini DIN F; Mouse: (1) 6-pin mini DIN F; Monitor: (1) DVI-I F; Interconnect: (1) RJ-45
    Indicators — Each unit: (4) LEDs: Communication Error, Link Status, Device Ready, Video Signal/Mode Detection
    Power — 90–240 VAC, 47–63 Hz, external, autosensing, with IEC 320 connector and cord
    Size — Each unit: 1.75"H (1U) x 6.7"W x 5.2"D (4.4 x 17 x 13.2 cm)
    Weight — Each unit: 2.2 lb. (1 kg)
    This product works with:
    • CAT5 100-MHz Solid-Conductor Cable, 4-Pair, Straight-Pinned (EYN737MS)
    For details, contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
