KVM > Extenders

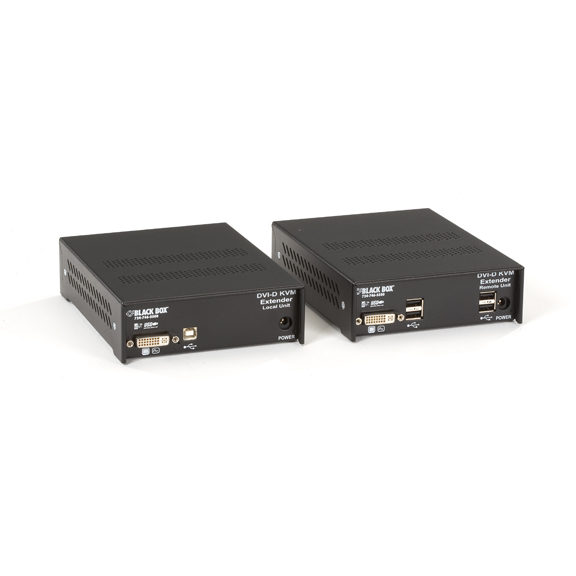

click photo to enlarge

ACS112A

Photo may show similar product

Other views

ServSwitch DVI-D Plus USB 2.0 High-Speed Extender Kit, Single-Video (Available February 2009)

Extend DVI-D signals from one video source plus transparent USB 2.0 signals on two fibers.

ACS112A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Link up to 1312 feet (400 m) using only one multimode fiber.
  • Supports resolutions from 640 x 480 to 1920 x 1200.
  • Transparent USB 2.0 480-Mbps support.
  • True EDID read mode.

  • Description

    ServSwitch DVI-D Plus USB 2.0 High-Speed Extender Kit, Single-Video (Available February 2009)


    Quick Facts

  • Link up to 1312 feet (400 m) using only one multimode fiber.
  • Supports resolutions from 640 x 480 to 1920 x 1200.
  • Transparent USB 2.0 480-Mbps support.
  • True EDID read mode.

  • Further Details

  • No compression, no delay of video data.
  • Easy setup, no adjustments.
  • USB HID versions available, too.

  • The ideal high-resolution KVM extenders
    The ServSwitch™ DVI-D Plus USB 2.0 Extender preserves the quality of the DVI video signal and offers real-time transmission without the delays and compression that degrades the high-resolution viewing experience.

    Save fibers
    The USB 2.0 Extender uses Course Wave Division Multiplexing (CWDM) technology to convert the DVI 1.0 signal from the PC or workstation into optical signals, which travel along one strand of multimode fiber. You can then place the receivers up to 1312 feet (400 m) away.

    USB 2.0 support
    The extender uses a second fiber to support transparent USB 2.0 at 480 Mbps. You can attach mass storage devices such as memory sticks, CD-ROM drives, or even DVD writers up to 1312 feet (400 m) from the workstation! Up to four USB peripherals are supported on the 4-port hub at the receiver end.

    DDC read channel
    The DDC read capability enables true EDID information to be received from the attached display. This guarantees optimum plug-and-play support.

    Local video feed-through
    The local unit offers a DVI-D feed-through port. This enables you to connect a display at the computer end. Using a second USB output of the PC, local control is possible as long as the operating system supports multiple mice and keyboards.

    More options
    USB HID versions are available, too. Click on the Related Items links or contact our FREE Tech Support.


    Technical Specifications for ServSwitch DVI-D Plus USB 2.0 High-Speed Extender Kit, Single-Video (Available February 2009) :

    Resolution (Maximum) — 1920 x 1200 at 60 Hz
    Connectors —
    Local unit: (2) USB Type B; (2) DVI-I F; Interconnect: (2) SC;
    Remote Unit: (2) USB Type A F; (1) DVI-I F; Interconnect: (2) SC
    Power — 90–240 VAC, 47–63 Hz, autosensing, external, with IEC 320 connector and cord
    Size — 1.7" H x 7.1" W x 5.2" (4.3 x 18 x 13.2 cm)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for ServSwitch DVI-D Plus USB 2.0 High-Speed Extender Kit, Single-Video (Available February 2009) :


    Connect your ServSwitch DVI-D Plus USB 2.0 High-Speed Extender Kit, Single-Video (Available February 2009) with:

    Accessory: ACS122A

    ServSwitch DVI-D Plus USB 2.0 High-Speed Extender Kit, Dual-Video (Available February 2009)

    ServSwitch DVI-D Plus USB 2.0 High-Speed Extender Kit, Dual-Video (Available February 2009)

    Accessory: EVNDVI01-0006

    Digital Visual Interface (DVI) Cable, DVI-A Male, Straight Hood/VGA HD15 Male, 6-ft. (1.8-m)

    Digital Visual Interface (DVI) Cable, DVI-A Male, Straight Hood/VGA HD15 Male, 6-ft. (1.8-m)

    Accessory: ACS110A

    ServSwitch DVI-D Plus USB HID Extender Kit, Single-Video

    ServSwitch DVI-D Plus USB HID Extender Kit, Single-Video

    Accessory: ACS120A

    ServSwitch DVI-D Plus USB HID Extender Kit, Dual-Video

    ServSwitch DVI-D Plus USB HID Extender Kit, Dual-Video
