KVM > IP Enabled

click photo to enlarge

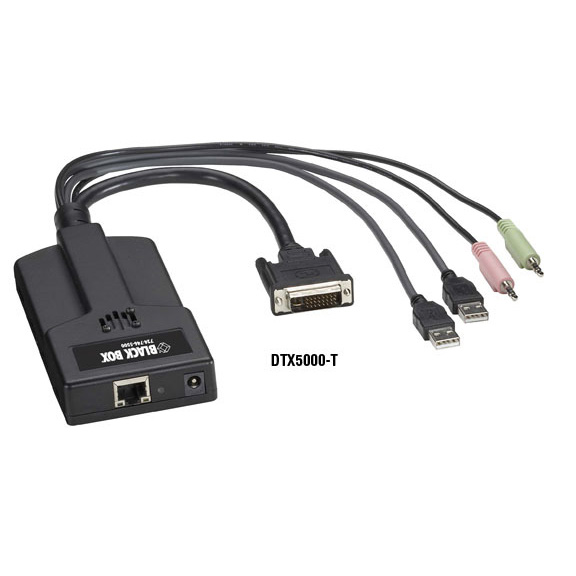

DTX5000-T

Photo may show similar product

Other views

ServSwitch DTX Single-Head Transmitter

Send KVM signals over IP to stations with one DVI monitors.

DTX5000-T

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Use this to extend KVM, audio, and USB 2.0 peripheral signals hundreds—or even thousands of miles—over an IP network.
  • Transmit a USB or PS/2® computer’s KVM, audio, and USB 2.0 peripheral signals over a TCP/IP link.
  • Encrypt media for Secure Socket Layer (SSL) connections over the IP link.

  • Description

    ServSwitch DTX Single-Head Transmitter


    Quick Facts

  • Use this to extend KVM, audio, and USB 2.0 peripheral signals hundreds—or even thousands of miles—over an IP network.
  • Transmit a USB or PS/2® computer’s KVM, audio, and USB 2.0 peripheral signals over a TCP/IP link.
  • Encrypt media for Secure Socket Layer (SSL) connections over the IP link.

  • Further Details

  • Password-protected serial interface menu enables you to configure network connections, change video settings, perform flash upgrades, configure hotkeys, and more.
  • Compatible with Windows®, Redhat Linux, Sun Solaris®, and Mac operating systems.
  • Supports resolutions up to 1280 x 1024 at 60 Hz!
  • Can also be used in a point-to-point wired configuration with a maximum distance of 328 feet (100 m) between your CPU and KVM workstation.
  • Dual-Head Transmitter also available (DTX5002-T).
  • Be sure to also order one or more ServSwitch DTX Receivers (DTX5000-R, DTX5002-R) for IP-based or point-to-point KVM workstation connection(s).
  • To enable matrix switching, control, and authentication capabilities, add the optional ServSwitch DTX Control Appliance (DTX5000-CTL).
  • If no USB connection is made to the PC’s USB port, add an optional power supply (DTX5000-PS).

    This product works with:
  • ServSwitch DTX Receiver (DTX5000-R)
  • ServSwitch DTX Control Appliance (DTX5000-CTL)
  • ServSwitch DTX Transmitter Power Supply (DTX5000-PS)

    To connect the transmitter to a CPU with a VGA video output, order a:
  • DVI-I Female to VGA HD15 Male Adapter (FA462)


  • Technical Specifications for ServSwitch DTX Single-Head Transmitter:

    Network Encryption — SSL/AES 128-bit
    Speed — Serial: Up to 19.2 kbps;
    Network: 100 Mbps or 1 Gbps
    CE Approval — Yes
    Connectors — Keyboard and mouse: (1) [dual-head] or (2) [single-head] USB Type A M;
    Digital/analog video: (1) [single-head] or (2) [dual-head] DVI-I M;
    Speakers: (1) 3.5-mm stereo plug;
    Network: (1) RJ-45 (100/1000 Mbps);
    DTX5000-T also includes: (1) mono plug for a microphone
    Power — From the USB bus; consumption: 6 watts;
    An optional autosensing 100–250-VAC, 50–60-Hz power supply (DTX5000-PS) is also available;
    DTX5002-T also comes with an autosensing 100–250-VAC, 50–60-Hz, power supply
    Size — 0.9"H x 2.7"W x 2.1"D (2.3 x 6.9 x 5.3 cm)
    Weight — 0.6 lb. (0.3 kg)
    This product works with:
  • ServSwitch DTX Receivers (DTX5000-R)
  • ServSwitch DTX Control Appliance (DTX5000-CTL)
  • ServSwitch DTX Transmitter Power Supply (DTX5000-PS)

    To connect the transmitter to a CPU with a VGA video output, order a:
  •  DVI-I Female to VGA HD15 Male Adapter (FA462)

    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

  • Resources for ServSwitch DTX Single-Head Transmitter:

    Manuals

    • ServSwitch DTX Kit Manual
      Manual for the DTX5000DTX5001 DTX5002, DTX5000-R, DTX5001-R, DTX5002-T, DTX5000-T, DTX5001-T, and DTX5002-R.

    Product Data Sheets

    Visio Stencils

    • Visio Stencil
      Stencil Drawings

    Firmware

    • ServSwitch DTX Kit Firmware
      Firmware for the DTX5000, DTX5000-T, and DTX5000-R
    • ServSwitch DTX, Single-Head, Firmware
      Firmware for the DTX5000, DTX5000-T, and DTX5000-R (Version 4.0)


    Connect your ServSwitch DTX Single-Head Transmitter with:
