KVM > IP Enabled

click photo to enlarge

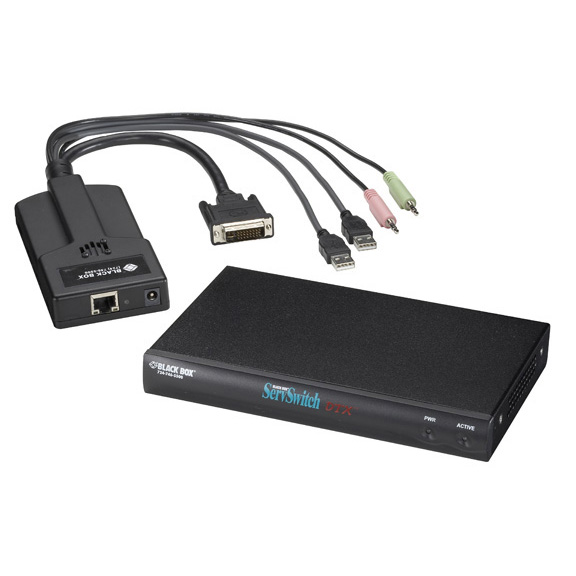

DTX5000

Photo may show similar product

Other views

ServSwitch DTX Kit, Single-Head

This switch and your IP network extend KVM, audio, and USB 2.0 peripherals hundreds—even thousands—of miles.

DTX5000

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Encrypts media streams for Secure Socket Layer (SSL) connections over a TCP/IP link.
  • Supports DVI-I monitor connections.

  • Description

    ServSwitch DTX Kit, Single-Head


    Quick Facts

  • Encrypts media streams for Secure Socket Layer (SSL) connections over a TCP/IP link.
  • Supports DVI-I monitor connections.

  • Further Details

  • Supports up to four USB 2.0 devices. All USB peripherals function as if they’re attached directly to the CPU.
  • Receiver features USB virtual media (VM) support for USB 2.0 CD-ROM drives, hard drives, and other USB peripherals.
  • Supports resolutions up to 1280 x 1024 at 60 Hz.
  • Displays 24-bit, 60-fps color video.
  • Compatible with Windows®, Redhat Linux, Sun Solaris®, and Mac operating systems.
  • CD-quality sound for robust audio extension.
  • Can also be used in a point-to-point wired configuration with a maximum distance of 328 feet (100 m) between your CPU and KVM workstation.
  • Using the extender’s password-protected serial interface menu, you can configure network connections, change video settings, perform flash upgrades, configure hotkeys, and more.
  • To enable matrix switching, control, and authentication capabilities, add the optional ServSwitch DTX Control Appliance (DTX5000-CTL) to your DTX application.
  • If no USB connection is made to the PC’s USB port, add an optional power supply (DTX5000-PS).
  • Receivers can be mounted to the back of a flat-panel monitor or to a flat surface with the optional plate (DTX5000-MMK).
  • Dual-head kit and single-head DTX extender kit are also available.

  • What’s included:
  • (1) Transmitter
  • (1) Receiver with an autosensing power supply

  • Technical Specifications for ServSwitch DTX Kit, Single-Head:

    Network Encryption — SSL/AES 128-bit
    Speed — Serial: Up to 19.2 kbps;
    Network: 100 Mbps or 1 Gbps
    CE Approval — Yes
    Connectors —
    Transmitters:
    Keyboard and mouse: (2) USB Type A M;
    Digital/analog video: (1) DVI-I M;
    Speakers: (1) 3.5-mm stereo plug;
    Network: (1) RJ-45 (100/1000 Mbps);
    Audio: (1) mono plug for a microphone;
    Receivers:
    Keyboard and mouse: (2) USB Type A F; (2) 6-pin mini DIN F (PS/2)
    USB peripherals: (4) (if PS/2® keyboard and mouse are used);
    Digital/analog video: (1) DVI-I F;
    Speakers: (1) 3.5-mm stereo jack;
    Network: (1) RJ-45 (100/1000 Mbps);
    Serial: (1) DB9 M;
    Audio: (1) mono jack for a microphone
    Power — Transmitter: From the USB bus; consumption: 6 watts; An optional autosensing 100–250-VAC, 50–60-Hz power supply (DTX5000-PS) is also available;
    Receiver: Autosensing 100–240 VAC, 50–60 Hz, 1.2 A, 8 watts
    Size — Transmitter: 0.9"H x 2.7"W x 2.1"D (2.3 x 6.9 x 5.3 cm)
    Receiver: 1.2"H x 8.3"W x 5.2"D (3 x 21.1 x 13.2 cm)
    Weight — Transmitter: 0.6 lb. (0.3 kg);
    Receiver: 4.4 lb. (2 kg)
    This product also works with:
  • ServSwitch DTX Control Appliance (DTX5000-CTL)
  • ServSwitch DTX Transmitter Power Supply (DTX5000-PS)
  • ServSwitch DTX Receiver Mounting Plate (DTX5000-MMK)

    To connect a VGA monitor to the receiver, you’ll need:
  •  DVI-I Male to VGA HD15 Female Adapter (FA461)

    To connect the transmitter to a CPU with a VGA video output, order:
  •  DVI-I Female to VGA HD15 Male Adapter (FA462)

    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

  • Resources for ServSwitch DTX Kit, Single-Head:

    Manuals

    • ServSwitch DTX Kit Manual
      Manual for the DTX5000DTX5001 DTX5002, DTX5000-R, DTX5001-R, DTX5002-T, DTX5000-T, DTX5001-T, and DTX5002-R.

    Product Data Sheets

    Application Diagrams

    Visio Stencils

    • Visio Stencil
      Stencil Drawings

    Firmware

    • ServSwitch DTX Kit Firmware
      Firmware for the DTX5000, DTX5000-T, and DTX5000-R
    • ServSwitch DTX, Single-Head, Firmware
      Firmware for the DTX5000, DTX5000-T, and DTX5000-R (Version 4.0)

    Software

    • ServSwitch Brand KVM Extender Software


    Connect your ServSwitch DTX Kit, Single-Head with:
