DTX5001-T

Photo may show similar product

Other views

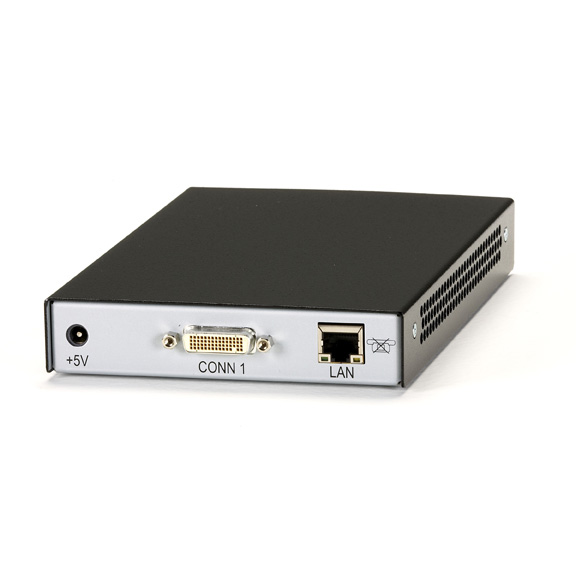

ServSwitch™ DTX Extender, Transmitter

Transmit KVM, audio, VGA or DVI-D video, and USB 2.0 peripheral signals over a TCP/IP link.

DTX5001-T

Extended Double Diamond™ Warranty Available (3 Additional Year)

Product Highlights

  • Send DVI-D or VGA signals over IP to a station with one DVI-D or VGA monitor.
  • Extends signals hundreds—or even thousands—of miles over an IP network.
  • Transmits a USB or PS/2® computer's KVM, audio, and USB 2.0 peripheral signals over a TCP/IP link.


  • Further Details

  • Encrypts media for Secure Socket Layer (SSL) connections over the IP link.
  • Password-protected serial interface menu enables you to configure network connections, change video settings, perform flash upgrades, configure hotkeys, and more.
  • Compatible with Windows®, Redhat Linux, Sun Solaris®, and Mac operating systems.
  • Supports resolutions up to 1920 x 1200 at 60 Hz!
  • Can also be used in a point-to-point wired configuration with a maximum distance of 328 feet (100 m) between your CPU and KVM workstation.
  • Be sure to also order one or more ServSwitch DTX Extender Receivers (DTX5001-R) for IP-based or point-to-point KVM workstation connection(s).
  • To enable matrix switching, control, and authentication capabilities, add the optional ServSwitch™ DTX Control Appliance (DTX5000-CTL).
  • Single-Head Transmitter (DTX5000-T) and Dual-Head Transmitter (DTX5002-T) are also available.


  • Network Encryption SSL/AES 128-bit
    Speed Serial: Up to 19.2 kbps;
    Network: 100 Mbps or 1 Gbps
    CE Approval Yes
    Connectors Keyboard and mouse: (2) USB Type A M;
    Digital/analog video: (1) DVI-I M;
    Speakers: (1) 3.5-mm stereo plug;
    Network: (1) RJ-45 (100/1000 Mbps;
    Power From the USB bus; consumption: 6 watts;
    An optional autosensing 100-250-VAC, 50-60-Hz power supply (DTX5000-PS) is also available
    Size 0.9"H x 2.7"W x 2.1"D (2.3 x 6.9 x 5.3 cm)
    Weight 0.6 lb. (0.3 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.

    Manuals

    • ServSwitch DTX Kit Manual
      Manual for the DTX5000, DTX5001 DTX5002, DTX5000-R, DTX5001-R, DTX5002-T, DTX5000-T, DTX5001-T, and DTX5002-R.

    Product Data Sheets

    Visio Stencils

    • Visio Stencil
      Stencil Drawings

    Firmware

    • ServSwitch DTX Extender, Single-Head, Firmware
      Firmware for the DTX5001, DTX5001-T, and DTX5001-R (Version 4.0)
    • ServSwitch DTX Extender Kit Firmware
      Firmware for the DTX5001, DTX5001-T, and DTX5001-R

    Brochures

    • Broadcast and Media Solutions
      Enabling next-generation connectivity solutions for broadcast and media professionals.

    Double Diamond Warranty
    Extended Double Diamond™ Warranty Available (3 Additional Year)
    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    The ServSwitch™ DTX Extender, Transmitter comes with a standard 2 Year warranty already included.

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!*

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product** for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Warranty subject to certain exclusions and limitations
    ** Certain products may not be eligible.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    ServSwitch™ DTX Extender Kit, Single-Head DTX5001 $2,474.45

    ServSwitch™ DTX Extender, Receiver DTX5001-R $1,262.45
