KVM > IP Enabled

click photo to enlarge

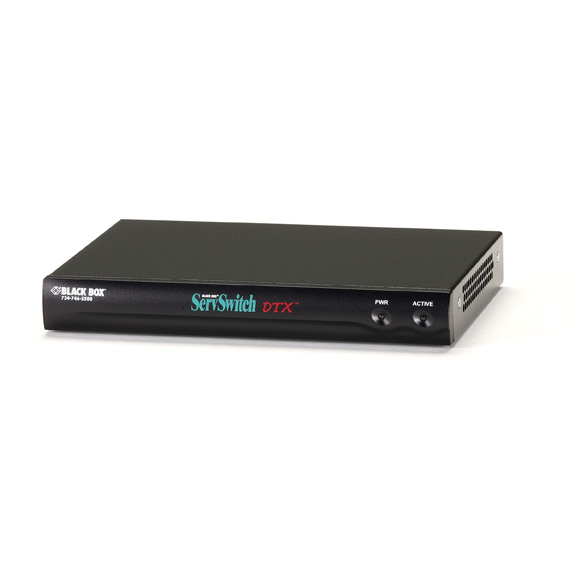

DTX5001-R

Photo may show similar product

Other views

ServSwitch™ DTX Extender, Receiver

Pick your video: Link KVM stations with DVI-D or VGA monitors to CPU-side transmitters over IP.

DTX5001-R

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Receives VGA or DVI-D video from a VGA or DVI-D link hundreds—or even thousands—of miles over an IP network.
  • Receives a USB or PS/2® computer’s KVM, audio, and USB 2.0 peripheral signals over a TCP/IP link.

  • Description

    ServSwitch™ DTX Extender, Receiver


    Quick Facts

  • Receives VGA or DVI-D video from a VGA or DVI-D link hundreds—or even thousands—of miles over an IP network.
  • Receives a USB or PS/2® computer’s KVM, audio, and USB 2.0 peripheral signals over a TCP/IP link.

  • Further Details

  • Enables the connection of up to four USB 2.0 devices. All USB peripherals function as if they’re attached directly to the CPU.
  • USB virtual media (VM) support for USB 2.0 CD-ROM drives, hard drives, and other USB peripherals.
  • Supports resolutions up to 1920 x 1200 at 60 Hz.
  • Displays 24-bit, 60-fps color video.
  • Communicates with PC, Sun®, and Mac® CPUs on the transmitter side and works with Windows®, Redhat Linux, Sun Solaris®, and Mac operating systems.
  • Receives encrypted media streams for Secure Socket Layer (SSL) connections over a TCP/IP link.
  • CD-quality sound for robust audio extension.
  • Can also be used in a point-to-point wired configuration with a maximum distance of 328 feet (100 m) between your CPU and KVM workstation.
  • To enable matrix switching, control, and authentication capabilities, add the optional ServSwitch™ DTX Control Appliance (DTX5000-CTL) to your DTX application.
  • Can be mounted to the back of a flat-panel monitor or to a flat surface with the optional plate (DTX5000-MMK).
  • Be sure to also order a ServSwitch DTX Extender, Transmitter (DTX5001-T) for the CPU side.
  • Also available as a DTX Extender Kit (DTX5001).


  • Technical Specifications for ServSwitch™ DTX Extender, Receiver:

    Network Encryption — SSL/AES 128-bit
    Speed — Serial: Up to 19.2 kbps;
    Network: 100 Mbps or 1 Gbps
    CE Approval — Yes
    Connectors — Keyboard and mouse: (2) USB Type A F;
    USB peripherals: (4);
    Digital/analog video: (1) DVI-I F;
    Network: (1) RJ-45 (100/1000 Mbps);
    Serial: (1) DB9 M;
    Speakers: (1) 3.5-mm stereo jack
    Power — Autosensing 100–240 VAC, 50–60 Hz, 1.2 A, 8 watts
    Size — 1.2"H x 8.3"W x 5.2"D (3 x 21.1 x 13.2 cm)
    Weight — 4.4 lb. (2 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for ServSwitch™ DTX Extender, Receiver:

    Manuals

    • ServSwitch DTX Kit Manual
      Manual for the DTX5000DTX5001 DTX5002, DTX5000-R, DTX5001-R, DTX5002-T, DTX5000-T, DTX5001-T, and DTX5002-R.

    Product Data Sheets

    Visio Stencils

    • Visio Stencil
      Stencil Drawings

    Firmware

    • ServSwitch DTX Extender Kit Firmware
      Firmware for the DTX5001, DTX5001-T, and DTX5001-R
    • ServSwitch DTX Extender, Single-Head, Firmware
      Firmware for the DTX5001, DTX5001-T, and DTX5001-R (Version 4.0)


    Connect your ServSwitch™ DTX Extender, Receiver with:

    Accessory: DTX5000

    ServSwitch DTX Kit, Single-Head

    ServSwitch DTX Kit, Single-Head

    Accessory: DTX5000-CTL

    ServSwitch DTX Control Appliance

    ServSwitch DTX Control Appliance

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A Two year warranty is included.

    Extended Two years for one Warranty Available


    Protect your purchase with an additional Two years for oneDouble Diamond™ warranty!
    Cost: $105.00

    Extended Three years for two Warranty Available


    Protect your purchase with an additional Three years for twoDouble Diamond™ warranty!
    Cost: $209.99

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    The most complete product warranty exclusively from Black Box

    The Double Diamond™ Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most products come with a one- or two-year warranty. Some products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life! Standard Warranty features are as follows:

    Worry-Free Purchases

    If your new Black Box® brand products are accidentally damaged, you're covered with this no-questions asked warranty. FREE

    Coverage

    Double Diamond™ is the standard warranty that comes with your new Black Box® brand product. Most products come with a one- or two-year warranty.

    Lifetime Guarantees

    Many products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life.

    Fast Service

    During the warranty period, Black Box® Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Extra Coverage

    Extend your warranty or protect a previously purchased Black Box® brand product* for an additional year for only 10% of the current retail price! And when you do, we give you the second year of extended coverage free! FREE Tech Support Hotline. No cost. No contracts. No kidding!

    No-Risk 45-Day Return Policy

    If it's not right, send it back.
    (Excludes custom built products)

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! Forget It.
    Tech Support Hotline 100% FREE! $$$
    Product SKU Price Quantity
    ServSwitch™ DTX Extender, Receiver DTX5001-R $1,049.95

    ServSwitch™ DTX Extender, Transmitter DTX5001-T $1,049.95

    ServSwitch™ DTX Extender Kit, Single-Head DTX5001 $2,095.95
