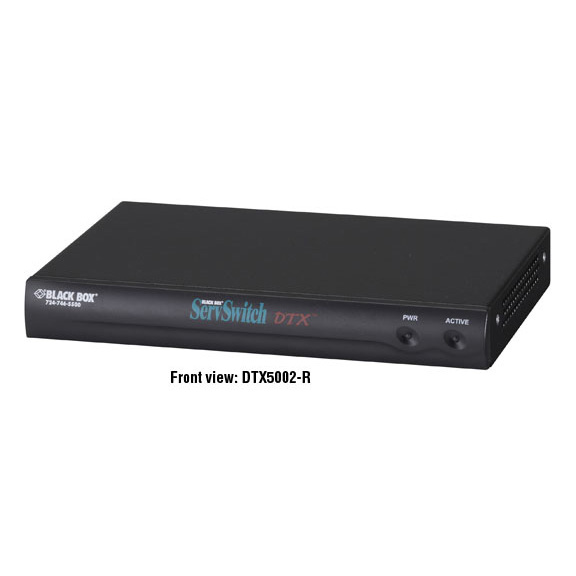

DTX5002-R

Photo may show similar product

Other views

ServSwitch DTX Dual-Head Receiver

Link KVM stations with DVI monitors to CPU-side transmitters over IP.

DTX5002-R

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Receive KVM, audio, and USB 2.0 peripheral signals hundreds—or even thousands—of miles over an IP network.
  • Receive a USB or PS/2® computer's KVM, audio, and USB 2.0 peripheral signals over a TCP/IP link.


  • Description

    ServSwitch DTX Dual-Head Receiver


    Quick Facts

  • Receive KVM, audio, and USB 2.0 peripheral signals hundreds—or even thousands—of miles over an IP network.
  • Receive a USB or PS/2® computer's KVM, audio, and USB 2.0 peripheral signals over a TCP/IP link.

  • Further Details

  • Enable the connection of up to four USB 2.0 devices. All USB peripherals function as if they're attached directly to the CPU.
  • USB virtual media (VM) support for USB 2.0 CD-ROM drives, hard drives, and other USB peripherals.
  • Dual-head receiver enables you to use two DVI-I monitors at a remote workstation.
  • Supports resolutions up to 1920 x 1200 at 60 Hz!
  • Display 24-bit, 60-fps color video.
  • Communicate with PC, Sun®, and Mac® CPUs on the transmitter side and work with Windows®, Redhat Linux, Sun Solaris®, and Mac operating systems.
  • Receive encrypted media streams for Secure Socket Layer (SSL) connections over a TCP/IP link.
  • CD-quality sound for robust audio extension.
  • Can also be used in a point-to-point wired configuration with a maximum distance of 328 feet (100 m) between your CPU and KVM workstation.
  • To enable matrix switching, control, and authentication capabilities, add the optional ServSwitch DTX Control Appliance (DTX5000-CTL) to your DTX application.
  • Can be mounted to the back of a flat-panel monitor or to a flat surface with the optional plate (DTX5000-MMK).
  • Be sure to also order a ServSwitch DTX Transmitter (DTX5002-T) for the CPU side.

    This product works with:
  • ServSwitch DTX Dual-Head Transmitter (DTX5002-T)
  • ServSwitch DTX Receiver Mounting Plate (DTX5000-MMK)
  • ServSwitch DTX Control Appliance (DTX5000-CTL)

    To connect a VGA monitor to the receiver, order:
  • DVI-I Male to VGA HD15 Female Adapter (FA461)


  • Technical Specifications for ServSwitch DTX Dual-Head Receiver:

    Network Encryption SSL/AES 128-bit
    Speed Serial: Up to 19.2 kbps;
    Network: 100 Mbps or 1 Gbps
    CE Approval Yes
    Connectors Keyboard and mouse: (2) USB Type A F;
    USB peripherals: (2) [dual-head] or (4) [single-head if PS/2® keyboard and mouse are used];
    Digital/analog video: (1) [single-head] or (2) [dual-head] DVI-I F;
    Network: (1) RJ-45 (100/1000 Mbps);
    Serial: (1) DB9 M;
    Speakers: (1) 3.5-mm stereo jack;
    DTX5000-R also includes (2) 6-pin mini DIN F (PS/2) for keyboard/mouse and (1) mono jack for a microphone
    Power Autosensing 100-240 VAC, 50-60 Hz, 1.2 A, 8 watts
    Size 1.2"H x 8.3"W x 5.2"D (3 x 21.1 x 13.2 cm)
    Weight 4.4 lb. (2 kg)
    This product works with:
  • ServSwitch DTX Dual-Head Transmitter (DTX5002-T)
  • ServSwitch DTX Receiver Mounting Plate (DTX5000-MMK)
  • ServSwitch DTX Control Appliance (DTX5000-CTL)

    To connect a VGA monitor to the receiver, order:
  • DVI-I Male to VGA HD15 Female Adapter (FA461)
