KVM > Desktop

click photo to enlarge

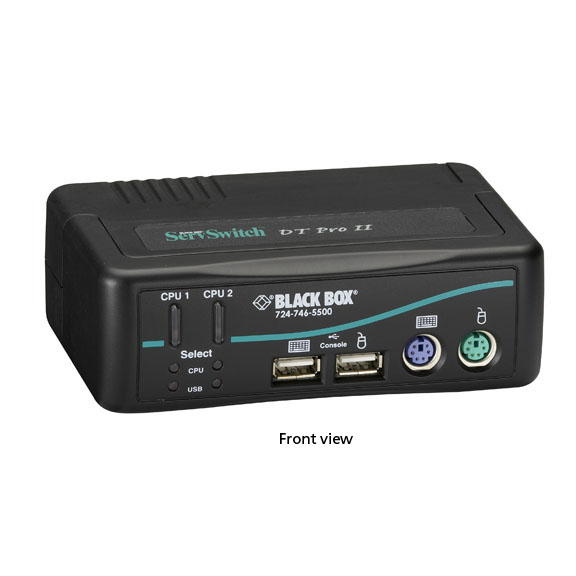

KV7020A

Photo may show similar product

Other views

ServSwitch DT Pro II, 2-Port

Simple, efficient, and reliable 2-port desktop KVM switching for PS/2 or USB CPUs.

KV7020A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Use our most versatile desktop switch to control up to two PS/2 or USB CPUs and their KVM connections.
  • Supports 1920 x 1440 maximum resolution.
  • Choose from push button or hotkey switching.
  • Integral LEDs on push buttons show port activity.
  • Provides audio connections.

  • Description

    ServSwitch DT Pro II, 2-Port


    Quick Facts

  • Use our most versatile desktop switch to control up to two PS/2 or USB CPUs and their KVM connections.
  • Supports 1920 x 1440 maximum resolution.
  • Choose from push button or hotkey switching.
  • Integral LEDs on push buttons show port activity.
  • Provides audio connections.

  • Further Details

  • Enables USB 2.0 peripheral switching.
  • Autoscan function enables you to automatically scan and monitor attached computers.
  • Works with Windows® 98/Me/XP, Windows 2000, Windows NT®, Linux®, NetWare®, and Mac® OS operating systems.

    Control and switch multiple PS/2 or USB CPUs and their keyboard, video, mouse, and audio connections with the ServSwitch DT Pro II KVM switch. Link PS/2 KVM to PS/2 CPUs, USB KVM to PS/2 CPUs, PS/2 KVM to USB CPUs, or USB KVM to USB CPUs. Plus, you can connect audio and USB peripherals to the KVM switch.

    The ServSwitch DT Pro II provides superior video resolution (up to 1920 x 1440) and crystal-clear audio. Choose from two ways to switch your KVM and CPUs and USB peripherals: via front-panel buttons or PC hotkeys. Simply press the front-panel button that corresponds to the CPU you want to switch or use hotkeys to start Autoscan. The Autoscan function enables you to automatically scan and monitor all computers, one by one, that are connected to the DT Pro II.

    Use hotkeys to select or switch channels, bind or unbind switching, or to start or stop Autoscan. You can:
  • Select PC channel.
  • Select hub port control.
  • Select audio and microphone channel.
  • Bind PC and hub port control switching.
  • Unbind PC and hub port control switching.
  • Bind PC and audio/microphone switching.
  • Unbind PC and audio/microphone switching.
  • Switch to next lower PC channel.
  • Switch to next higher PC channel.
  • Previous PC channel.
  • Turn beep sound on/off.
  • Define hotkey switch to preceding sequence.
  • Start Autoscan.
  • Start Autoscan with programmable delay time.
  • Stop Autoscan.

    The ServSwitch DT Pro II supports Microsoft® IntelliMouse® and other mice. The unit’s USB ports comply with the USB 2.0 standard. What’s more, the DT Pro II is compatible with many common operating systems, including Windows 98/Me/XP, Windows 2000, Windows NT, Linux, NetWare, and Mac OS.

  • Technical Specifications for ServSwitch DT Pro II, 2-Port:

    Environmental — Operating Temperature: 32 to 104° F (0 to 40° C);
    Storage Temperature: -4 to +140° F (-20 to +60° C);
    Relative Humidity: Up to 80%, noncondensing
    Hotkeys — Yes
    Resolution — 1920 x 1440
    Supported Operating Systems — Windows 98/Me/2000/XP and Windows NT, Linux, NetWare, Mac OS
    User Controls — (2) port selection buttons
    Connectors — Computer end: PS/2® keyboard, PS/2 mouse,
    VGA video: (2) HD15 F,
    USB keyboard, mouse, and peripherals: (2) USB Type B F,
    Microphones/speakers: (4) 3.5-mm jacks;
    Console end: Keyboard: (1) 6-pin mini DIN F or (1) USB Type A F,
    Mouse: (1) 6-pin mini DIN F or (1) USB Type A F,
    Monitor: (1) HD15 F,
    USB peripherals: (2) USB Type A F,
    Microphone/speaker: (2) 3.5-mm jacks,
    Power: (1) barrel connector
    Indicators — (2) Port LEDs, (2) Hub LEDs
    Power — 9-VDC power supply
    Size — 1.8"H x 5.4"W x 3.5"D (4.5 x 13.8 x 9.1 cm)
    Weight — 1.8 lb. (0.8 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
