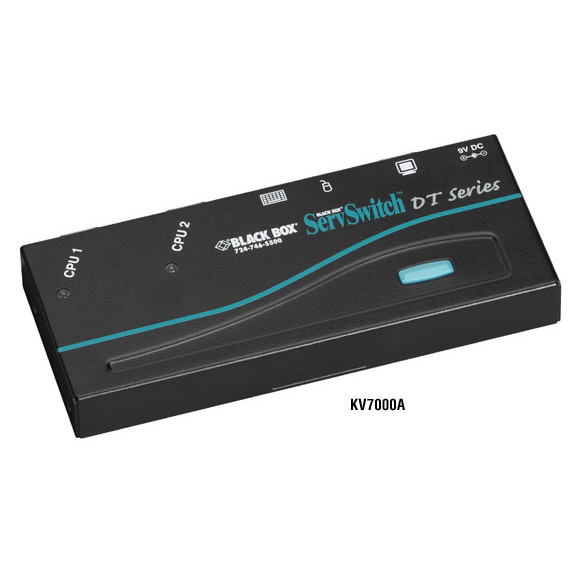

ServSwitch DT Low-Profile KVM Switch, 2-Port

Tight quarters? This powerhouse ServSwitch stands less than an inch high!


Sold As is with no warranty.

Product Highlights

  • Measures just 0.8" high, so it's ideal for areas where space is at a premium.
  • 1920 x 1440 maximum resolution.

  • Further Details

  • Great for desktop users who require access to multiple computers.
  • Space-saving design eliminates desktop clutter in small and home offices.
  • Plug and play—no configuration.
  • Easy port selection by hotkeys or front-panel button. Front-panel LEDs make the active port easy to identify.
  • Autoscan function allows port scanning at 3-, 8-, 15-, or 30-second intervals.
  • Supports all standard VGA resolutions from 640 x 480 to 1920 x 1440.
  • Supports Microsoft® operating systems.
  • Supports standard keyboard layouts up to 104 keys and Microsoft IntelliMouse® or compatible mice.
  • Robust keyboard and mouse emulation to prevent lockups.

  • Access, control, and reboot two or four IBM® computers using just one PS/2 keyboard, video, and mouse with the ServSwitch DT Low Profile KVM switch from Black Box.

    Measuring less than an inch high, this compact switch is a great fit for crowded workstation areas. And because all CPU cables connect at the rear, you have even more free space on your desktop.

    To switch between KVM channels, use either the top-panel buttons or a hotkey sequence on your keyboard. When you switch using a button, the corresponding top-panel LED lights to indicate which port is selected. Or you can set the ServSwitch DT Low Profile to switch between ports automatically with its AutoScan function.

    The ServSwitch DT Low Profile works with most Windows® operating systems, and it draws its power from the interface. You may need the Optional Power Supply (PS7090) for video-only applications. It provides the proper power through the unit's keyboard port.

    The Kits include two or four ServSwitch DT Low-Profile Cables.

    Operating Systems Supported Windows 95/98/Me/XP, Windows NT, Windows 2000
    Resolution 1920 x 1440
    System Requirements IBM or compatible computers
    Connectors Both: Shared monitor port: (1) HD15 F;
    Shared keyboard and mouse: (2) 6-pin mini DIN F;
    KV7000A also has: CPU: (2) HD15 F;
    KV7001A also has: CPU: (4) HD15 F
    Power From the interface or an optional power supply
    Size KV7000A: 0.8"H x 6.1"W x 2.8"D (2 x 15.5 x 7.1 cm);
    KV7001A: 0.8"H x 7.1"W x 3.4"D (2 x 18 x 8.6 cm)
    Weight KV7000A: 0.9 lb. (0.4 kg);
    KV7001A: 1 lb. (0.5 kg)
    These products work with:
  • ServSwitch EC/DT Low Profile CPU Cable (EHN70001)
  • ServSwitch DT Optional Power Supply (PS7090)
    Questions? Contact ServSwitch Central™ at 724-746-5500 or by clicking on "Talk to a Tech."

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.

  • Double Diamond Warranty
    Sold As is with no warranty.

    Double Diamond™ Warranty (Standard)


    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.

    The Double Diamond Warranty is our warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!*

    Plus, get an Extended Double Diamond Warranty.

    You can also extend your warranty or protect a previously purchased Black Box® brand product** for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Warranty subject to certain exclusions and limitations
    ** Certain products may not be eligible.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    ServSwitch DT Low-Profile KVM Switch, 2-Port KV7000A $106.00
    4-Port ServSwitch DT Low Profile KVM Switch KV7001A $126.20
    4-Port ServSwitch DT Low-Profile KVM Switch with Cables KV7001A-K $151.45
