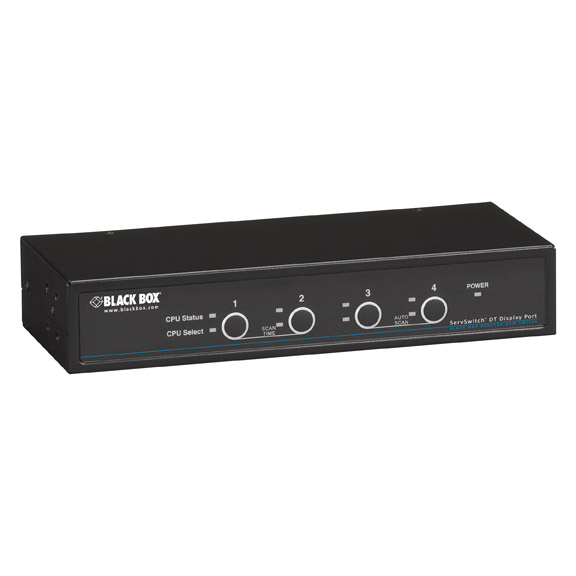

ServSwitch DT KVM Switch DisplayPort with USB and Audio, 4-Port

Support for high-resolution video over DisplayPort connections in a desktop KVM switch.

KV9704A

Extended Double Diamond™ Warranty Available (3 Additional Year)

Product Highlights

  • Supports DisplayPort, a new video standard, with high resolution video up to UXGA (1600 x 1200), full HD (1920 x 1080), and WUXA (1920 x 1200), and WQXGA (2560 x 1600, dual-link).
  • A unique switching system enables the USB or audio devices to operate independently.


  • Further Details

  • Supports USB consoles.
  • Four computers share up to four different USB peripherals.
  • Front-panel push buttons and hotkey functions for easy computer selection.
  • Activate autoscan by pressing front buttons.
  • Support keyboard and mouse plug-and-play.
  • No software required.
  • Also available in a two-port model.


  • Operating Systems Windows® and Mac®
    Connectors Console: (1) DisplayPort F; (4) USB Type A F ([1] for keyboard, [1] for mouse, [2] for USB 2.0 devices);
    CPU: (4) DisplayPort F; (4) USB Type B F; (8) 3.5-mm female for audio and mic;
    Power: (1) 2.5-mm barrel connector for input, 9-12 VDC
    CE Approval Yes
    RoHS Yes
    Power External in-line power supply ITE
    Size 1.7"H x 8.7"W x 5.1"D (4.3 x 22.1 x 12.9 cm)
    Weight 1.5 lb. (0.7 kg)

    NOTE: DisplayPort video card drivers need to be installed correctly on the target computers.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.

    Manuals

    • ServSwitch KVM Switch DT DisplayPort with USB and Audio Manual
      Manual for KV9702A, KV9704A (Version 2)
