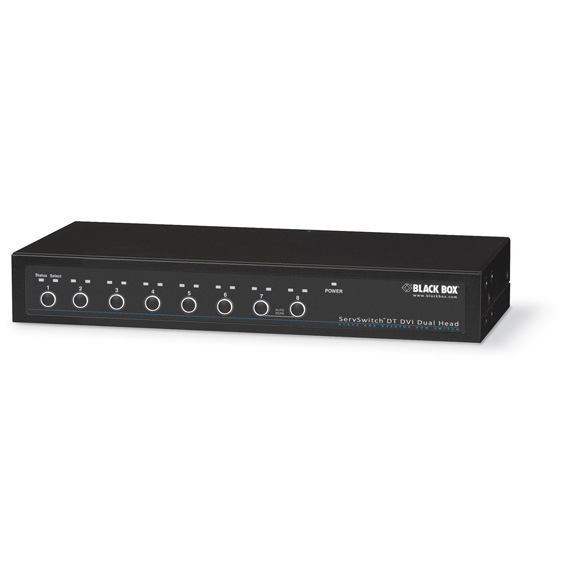

KV9628A

Photo may show similar product

Other views

ServSwitch DT Dual-Head DVI USB, 8-Port

This eight-port KVM switch provides the ultimate in multimedia and USB switching.

KV9628A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Access, control, and manage eight DVI dual-display computers from one HD console with a USB keyboard and mouse and two DVI monitors.
  • Supports dual-head video with optional VGA output for the primary video head.
  • Great for dual-display workstations in financial, banking, engineering, graphics, and healthcare applications.


  • Description

    ServSwitch DT Dual-Head DVI USB, 8-Port


    Quick Facts

  • Access, control, and manage eight DVI dual-display computers from one HD console with a USB keyboard and mouse and two DVI monitors.
  • Supports dual-head video with optional VGA output for the primary video head.
  • Great for dual-display workstations in financial, banking, engineering, graphics, and healthcare applications.

  • Further Details

  • Boasts 1920 x 1200 resolutions, works with most common screen resolutions (XGA/SXGA/UXGA/WSXGA and Full HD).
  • Supports EDID.
  • DDC2B compatible for optimized video monitor links.
  • Features two console-side USB 2.0 ports for high-speed peripheral sharing.
  • No configuration necessary—plug and play.
  • Bidirectional audio support for microphones and speakers.
  • Hot-key, push-button, or on-screen display (OSD) switching.
  • Choose from autoscan intervals of 3, 8, 15, and 30 seconds.
  • USB, audio, and microphone switching is independent of the KVM switch.
  • Operating system independent and transparent to all applications.
  • Stores system settings and computer name entries to non-volatile memory.
  • Password security locks computers from unauthorized access.
  • Flash upgradable.

  • The ServSwitch™ DT Dual-Head DVI USB, 8-Port enables you to control up to eight dual-display multimedia computers from a single workstation that has two DVI screens.

    As a bonus, the KVM switch gives you the option of outputting video to a VGA monitor at the primary video head. In all, you can output a total of three active monitors on VGA-1, DVI-1, and DVI-2 channels.

    The KVM switch supports Full HD digital resolutions plus stereo audio. Video enhancement technology provides superb quality up to 1920 x 1200 Hz.

    Plus, EDID communication capabilities ensure that the computer's graphics card is always optimized to work with your screen.

    In addition to multimedia capabilities, the switch has USB peripheral sharing ports on the console side, which eliminates the expense of duplicate devices at your workstation. Use the hub ports to share DVD burners, scanners, printers, and other high-speed USB 2.0 devices.

    What's included:
    • (1) ServSwitch DT Dual-Head DVI USB, 8-Port
    • (1) U.S. power cord
    • (1) set of rubber feet
    • (1) user manual


    Technical Specifications for ServSwitch DT Dual-Head DVI USB, 8-Port :

    Operating Systems Supported Windows® and Mac®
    Approvals CE, RoHS
    Connectors Console side: Video: (2) DVI-I F; (1) HD15 F (VGA) for primary channel video, first video port;
    Keyboard/mouse: (2) USB Type A F;
    Peripherals: (2) USB Type A F;
    Audio: (2) 3.5-mm jacks (stereo audio and microphone);
    CPU side: Video input: (16) DVI-I F (with [2] DVI ports per channel);
    Keyboard/mouse: (8) USB Type B F;
    Audio: (2) 3.5-mm jacks (stereo audio and microphone input)
    Power Input: 100-240 VAC, 50-60 Hz, autosensing;
    Output: 12 VDC, 4 amps (maximum);
    Consumption: 48 watts
    Dimensions 2.7"H x 17.25"W x 9"D (6.6 x 43.8 x 22.9 cm)
    Weight 7.5 lb. (2 kg)
    Shipping Weight 11.2 lb. (5.1 kg)

    This product works with:
  • ServSwitch DVI Cables (EHN900024U)
  • DVI Cables (EVNDVI02)
  • 3.5-mm Stereo Audio Cables (EJ110)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
