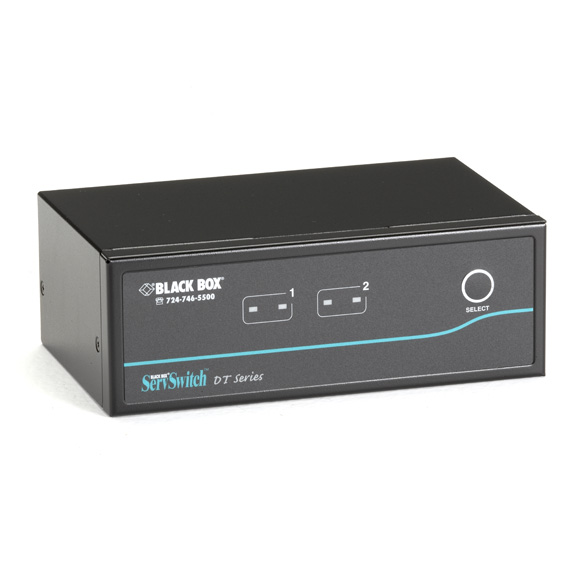

KV9622A

Photo may show similar product

Other views

ServSwitch DT Dual-Head DVI USB, 2-Port

This two-port KVM switch provides the ultimate in multimedia and USB switching.

KV9622A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Along with USB device sharing, this versatile KVM switch supports DVI flat screen connections and enables you to control two multimedia computers.
  • Access, control, boot, and reboot multiple USB-enabled multimedia computers using one USB keyboard, monitor, and mouse.
  • Compatible with DVI flat screens (digital only).
  • Supports digital resolutions up to 1920 x 1200 on each video head.


  • Description

    ServSwitch DT Dual-Head DVI USB, 2-Port


    Quick Facts

  • Along with USB device sharing, this versatile KVM switch supports DVI flat screen connections and enables you to control two multimedia computers.
  • Access, control, boot, and reboot multiple USB-enabled multimedia computers using one USB keyboard, monitor, and mouse.
  • Compatible with DVI flat screens (digital only).
  • Supports digital resolutions up to 1920 x 1200 on each video head.

  • Further Details

  • Supports dual-head video.
  • USB 2.0 device hub ports for high-speed USB device sharing.
  • No configuration necessary—plug-and-play.
  • Supports DDC2B emulation.
  • Choose from autoscan intervals of 3, 8, 15, and 30 seconds.
  • Hotkey or push-button switching.
  • Audio and microphone switching is independent of the KVM switch.

  • The ServSwitch DT Dual-Head DVI USB 2-Port KVM switch enables you to control two multimedia computers. The switch supports digital resolutions up to 1920 x 1200 on each video head for sharp video plus stereo audio. Additionally, the switch is compatible with DVI flat screens.

    In addition to multimedia capabilities, the Dual-Head DVI USB KVM switch features two USB ports. Its device hub port supports USB 1.1 or 2.0 high-speed device sharing. The switch is truly plug-and-play with DDC2B emulation.

    This product works with:
  • ServSwitch DVI Cables (EHN900024U)
  • DVI Cables (EVNDVI02)
  • 3.5-mm Stereo Audio Cables (EJ110)
    Questions? Contact our FREE Tech Support.

  • Technical Specifications for ServSwitch DT Dual-Head DVI USB, 2-Port:

    Operating Systems Supported Windows® 95/98/Me/XP, Windows NT®, Windows 2000, Mac® OS
    Resolution (Maximum) HDTV: 1080p;
    DVI-D: 1920 x 1200;
    Bandwidth: 1.5 Gbps
    CE Approval Yes
    Connectors CPU side: Video: (4) DVI-I (digital only);
    USB: (2) USB Type B;
    Audio: (4) 3.5-mm stereo jacks;
    Console side: Video: (2) DVI-I (digital only);
    USB workstation/device sharing: (4) USB Type A;
    Audio: (2) 3.5-mm stereo jacks
    Power 9-12 VDC, 1.5 amps
    Size 2.25"H x 6.31"W x 4.19"D (6.4 x 22 x 13 cm)
    Weight 2.2 lbs.

    This product works with:
  • ServSwitch DVI Cables (EHN900024U)
  • DVI Cables (EVNDVI02)
  • 3.5-mm Stereo Audio Cables (EJ110)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

  • Resources for ServSwitch DT Dual-Head DVI USB, 2-Port:

    Manuals

    • ServSwitch DT Dual-Head DVI USB Manual
      Manual for the KV9622A and KV9624A (Version 2)
