KVM > Desktop

click photo to enlarge

KV9634A

Photo may show similar product

Other views

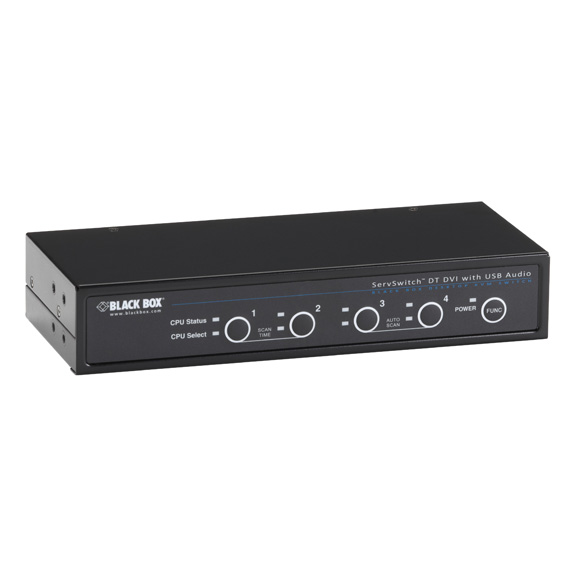

ServSwitch DT DVI with Bidirectional Audio, 4-Port

This four-port KVM switch provides the ultimate in desktop switching.

KV9634A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Along with USB device sharing, this versatile KVM switch supports DVI digital video connections and enables you to control four multimedia computers.
  • Access, control, boot, and reboot multiple USB-enabled multimedia computers using one USB keyboard, monitor, and mouse.
  • Bidirectional audio is integrated in the USB interface.
  • Compatible with DVI flat screens (digital only).
  • Supports high-resolution video up to UXGA (1600 x 1200), Full HD (1920 x 1080), and WUXGA (1920 x 1200).

  • Description

    ServSwitch DT DVI with Bidirectional Audio, 4-Port


    Quick Facts

  • Along with USB device sharing, this versatile KVM switch supports DVI digital video connections and enables you to control four multimedia computers.
  • Access, control, boot, and reboot multiple USB-enabled multimedia computers using one USB keyboard, monitor, and mouse.
  • Bidirectional audio is integrated in the USB interface.
  • Compatible with DVI flat screens (digital only).
  • Supports high-resolution video up to UXGA (1600 x 1200), Full HD (1920 x 1080), and WUXGA (1920 x 1200).

  • Further Details

  • USB 2.0 device hub ports for high-speed USB device sharing.
  • No configuration necessary—plug-and-play.
  • Supports DDC2B emulation.
  • Choose from autoscan intervals of 3, 8, 15, and 30 seconds.
  • Hotkey or push-button switching.
  • Audio and microphone switching is independent of any computer KVM system.

  • The ServSwitch™ DT DVI with Bidirectional Audio 4-Port KVM switch enables you to control four multimedia computers. It supports digital resolutions up to 1920 x 1200 on each video head for sharp video plus stereo audio.

    In addition to multimedia capabilities, the switch features four USB ports and bidirectional audio. Its device hub port supports USB 1.1 or 2.0 high-speed device sharing. The switch is truly plug-and-play with DDC2B emulation.


    Technical Specifications for ServSwitch DT DVI with Bidirectional Audio, 4-Port:

    Operating Systems Supported — Windows® 95/98/Me/XP, Windows NT, Windows 2000, Windows 7, Windows Vista®, Mac® OS
    Resolution (Maximum) — HDTV: 1080p;
    DVI-D: 1920 x 1200;
    Bandwidth: 1.5 Gbps
    CE Approval — Yes
    Connectors — CPU side: Video: (4) DVI-I (digital only);
    USB: (4) USB Type B;
    Console side: Video: (1) DVI-I (digital only);
    USB workstation/device sharing: (4) USB Type A;
    Audio: (2) 3.5-mm stereo jacks
    Power — 9–12 VDC, 1.5 amps
    Size — 1.75"H x 8.75"W x 5.43"D (4.4 x 22.2 x 13.8 cm)
    Weight — 2.3 lb. (1 kg)

    This product works with:
  • ServSwitch DVI Cables (EHN900024U)
  • DVI Cables (EVNDVI02)
  • 3.5-mm Stereo Audio Cables (EJ110)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

  • Resources for ServSwitch DT DVI with Bidirectional Audio, 4-Port:

    Manuals

    • ServSwitch DT DVI with Bidirectional Audio
      (Version 1)


    Connect your ServSwitch DT DVI with Bidirectional Audio, 4-Port with:

    Accessory: EHN900024U-0006

    ServSwitch DVI Cable, 6-ft. (1.8-m)

    ServSwitch DVI Cable, 6-ft. (1.8-m)

    Accessory: EVNDVI02-0006

    Digital Visual Interface (DVI) Cable, DVI-D Male, Straight Hood/DVI-D Male, Straight Hood, 6-ft. (1.8-m)

    Digital Visual Interface (DVI) Cable, DVI-D Male, Straight Hood/DVI-D Male, Straight Hood, 6-ft. (1.8-m)

    Accessory: EJ110-0005

    3.5-mm Stereo Audio Cables, 24 AWG, 5-ft. (1.5-m)

    3.5-mm Stereo Audio Cables, 24 AWG, Male/Male, 5-ft. (1.5-m)
