KVM > Desktop


click photo to enlarge

KV9614A

Photo may show similar product

Other views

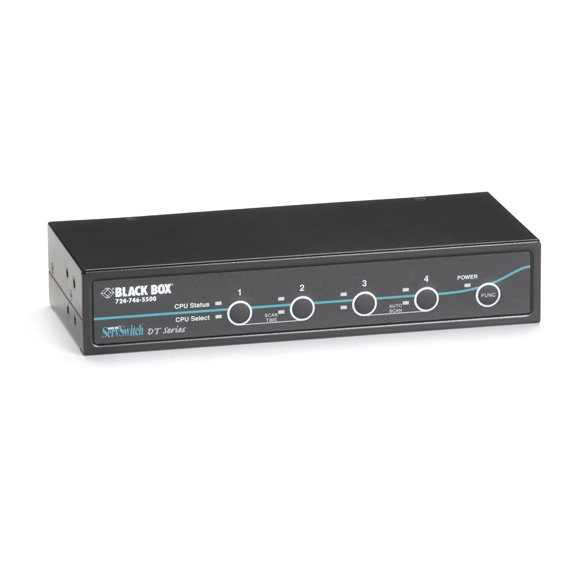

ServSwitch™ DT DVI 4-Port with Emulated USB Keyboard/Mouse

Switch PCs with single-link DVI-D video and emulated USB keyboard/mouse.

KV9614A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Switch up to four PCs.
  • Supports resolutions up to 1920 x 1200 at 60 Hz.
  • DDC EDID support via emulation.
  • Keyboard/mouse emulation makes switching faster and more reliable.
  • Hotkey switching.


  • Description

    ServSwitch DT DVI 4-Port with Emulated USB Keyboard/Mouse


    Quick Facts

  • Switch up to four PCs.
  • Supports resolutions up to 1920 x 1200 at 60 Hz.
  • DDC EDID support via emulation.
  • Keyboard/mouse emulation makes switching faster and more reliable.
  • Hotkey switching.

  • Further Details

    This four-port USB KVM switch enables you to access four CPUs with high-resolution DVI video connectors from a single workstation. Set up desktop KVM switching with high-quality DVI-D video.

    The ServSwitch DT DVI 4-Port with Emulated USB Keyboard/Mouse supports full DVI at resolutions up to 1920 x 1200 at 60 Hz. Plus, you can fine tune the signals, depending on signal strength.

    For easy hotkey switching, choose the ServSwitch DT DVI, 4-Port with Emulated USB Keyboard/Mouse. Emulation means unselected computers continue to see the identities of the keyboard and mouse, which means no enumeration is necessary when their link becomes active once again. This not only helps to make reconnecting faster, it also increases switching reliability. This is important because USB links are at their most vulnerable during the switching process.

    What's more, the switch supports stereo audio signal switching for speakers and microphones. Audio channels can be switched independently from USB and video.

    Also available: our ServSwitch DT DVI 4-Port with Transparent USB 2.0 (KV9604A).

    This product works with:
  • ServSwitch DT Series CPU Cables (EHN900024U)
  • 3.5-mm Stereo Audio Cables (EJ110)
  • Questions? Contact our FREE Tech Support.


    Technical Specifications for ServSwitch™ DT DVI 4-Port with Emulated USB Keyboard/Mouse:

    Resolution 1900 x 1200 @ 60 Hz
    Supported Operating Systems Windows® 98 SE/Me/2000/XP, Windows Vista®, Windows 7, Mac OS X, Linux®
    CE Approval Yes
    Connectors (1) Power;
    Console end: (1) DVI-I, (4) USB Type A, (2) 3.5-mm jacks for audio (speaker and microphone);
    Computer end: (4) DVI-I, (4) USB Type B, (8) 3.5-mm jacks for audio (speaker and microphone)
    Power From the interface or via a 5-VDC, 2-A power supply (included)
    Size 1.7"H x 8.7"W x 5.1"D (4.4 x 2.2 x 13 cm)
    Weight 2.2 lb. (1 kg)

    This product works with:
  • ServSwitch DT Series CPU Cables (EHN900024U)
  • 3.5-mm Stereo Audio Cables (EJ110)
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for ServSwitch™ DT DVI 4-Port with Emulated USB Keyboard/Mouse:

    Manuals

    • ServSwitch DT DVI with Emulated USB Keyboard/Mouse Manual
      Manual for the KV9612A and KV9614A (Version 1)

    Product Data Sheets

    Black Box Explains


    Connect your ServSwitch™ DT DVI 4-Port with Emulated USB Keyboard/Mouse with:

    Accessory: AVSP-RMK

    19" Rackmount Kit for 4-Port DVI/HDMI Video Splitters and ServSwitch DT and EC

    19" Rackmount Kit for 4-Port DVI/HDMI Video Splitters and ServSwitch DT and EC

    Accessory: EHN900024U-0006

    ServSwitch DVI Cable, 6-ft. (1.8-m)

    ServSwitch DVI Cable, 6-ft. (1.8-m)

    Accessory: EJ110-0005

    3.5-mm Stereo Audio Cable, 24 AWG, Male/Male, 5-ft. (1.5-m)

    3.5-mm Stereo Audio Cable, 24 AWG, Male/Male, 5-ft. (1.5-m)

    Accessory: KV7022A

    ServSwitch™ DT Basic II, 2-Port

    ServSwitch™ DT Basic II, 2-Port

    Accessory: KV7022A-K

    ServSwitch™ DT Basic II Kit, 2-Port

    ServSwitch™ DT Basic II Kit, 2-Port

    Accessory: KV9604A

    ServSwitch™ DT DVI 4-Port with USB 2.0 Transparent

    ServSwitch DT DVI 4-Port with USB 2.0 Transparent

    Accessory: EHN900024U-0010

    ServSwitch DVI Cable, 10-ft. (3.0-m)

    ServSwitch DVI Cable, 10-ft. (3.0-m)

    Accessory: EHN900024U-0015

    ServSwitch DVI Cable, 15-ft. (4.5-m)

    ServSwitch DVI Cable, 15-ft. (4.5-m)
