KVM > Desktop

click photo to enlarge

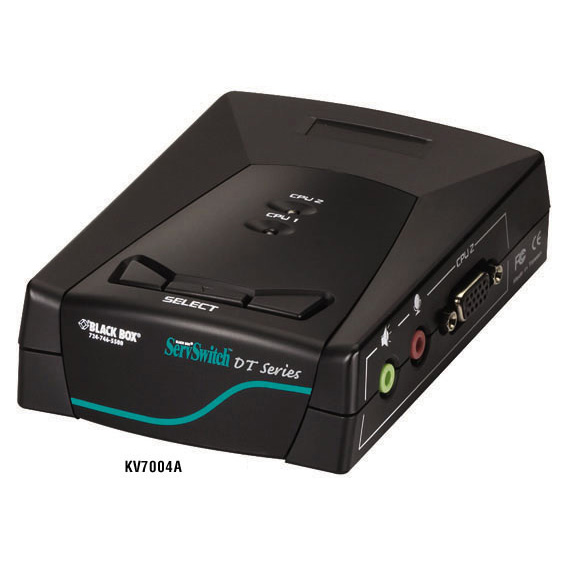

KV7004A

Photo may show similar product

Other views

ServSwitch DT Basic KVM Switch with Audio, 2-Port

The two- and four-port KVM switch that also supports stereo audio.

KV7004A


One year Warranty

Product Highlights

  • 2048 x 1536 maximum resolution.
  • Push button or hotkey switching.
  • Plug and play—no configuration.
  • Great for desktop users requiring access to multiple computers with audio.

  • Description

    ServSwitch DT Basic with Audio, 2-Port


    Quick Facts

  • 2048 x 1536 maximum resolution.
  • Push button or hotkey switching.
  • Plug and play—no configuration.
  • Great for desktop users requiring access to multiple computers with audio.

  • Further Details

  • Control two or four PS/2 computers with just one PS/2 keyboard, PS/2 mouse, and VGA monitor.
  • Space-saving design eliminates desktop clutter in small office/home office (SOHO) environments.
  • Supports Microsoft® Windows® operating systems.
  • Easy port selection by hotkeys or front-panel buttons.
  • Front-panel LEDs make the active port easy to identify.
  • The AutoScan function enables port scanning at 10-second intervals for easy, hands-free computer monitoring.
  • Supports all standard VGA resolutions from 640 x 480 to 2048 x 1536.
  • Supports standard keyboard layouts up to 104 keys and Microsoft® IntelliMouse® or compatible mice.
  • Provides robust keyboard and mouse emulation to prevent lockups.


  • Technical Specifications for ServSwitch DT Basic KVM Switch with Audio, 2-Port:

    Operating Systems Supported — Windows® 95/98/Me/XP, Windows NT®, Windows 2000
    Resolution (Maximum) — 2048 x 1536
    Connectors — Both: (1) barrel connector for power;
    Console: Monitor, keyboard, mouse: (1) HD15 F; Audio/microphone: (2) 3.5-mm jacks;
    CPU: Monitor, keyboard, mouse: (2) or (4) HD15 F; Audio/microphone: (4) or (8) 3.5-mm jacks
    Indicators — (2) or (4) Port LEDs
    Power — From the interface or an optional power supply
    Size — KV7004A: 0.3"H x 3.4"W x 1.4"D (0.8 x 8.6 x 3.6 cm);
    KV7005A: 0.2"H x 4.7"W x 1.8"D (0.5 x 11.9 x 4.6 cm)
    Weight — KV7004A: 1 lb. (0.5 kg);
    KV7005A: 1.6 lb. (0.7 kg)
    Have questions? Contact ServSwitch Central™ at 724-746-5500 or click “Talk to a Tech.”

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for ServSwitch DT Basic KVM Switch with Audio, 2-Port:


    Connect your ServSwitch DT Basic KVM Switch with Audio, 2-Port with:

    Accessory: KV401A

    ServSwitch Micro KVM Switch PS/2 Console for (2) PS/2 Computers

    ServSwitch Micro KVM Switch, PS/2 Console for (2) PS/2 Computers

    Accessory: EHN70045-0002

    ServSwitch DT Basic with Audio User Cable, 2-ft. (0.6-m)

    ServSwitch DT Basic with Audio User Cable, 2-ft. (0.6-m)

    Accessory: EHN70045-0006

    ServSwitch DT Basic with Audio Computer Cable, 6-ft. (1.8-m)

    ServSwitch DT Basic with Audio Computer Cable, 6-ft. (1.8-m)
