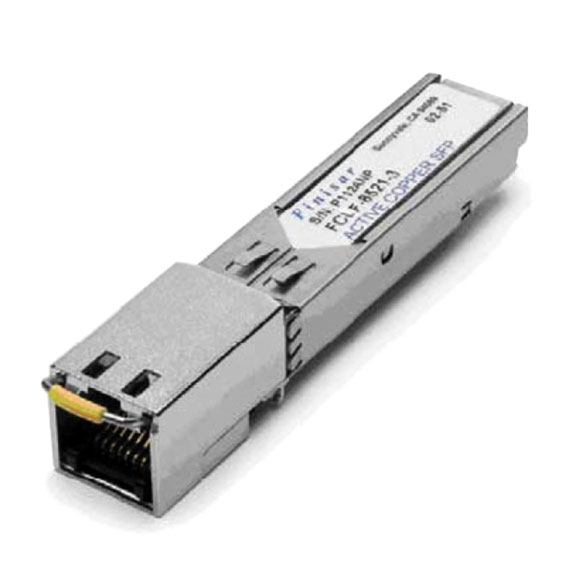

ACXSFPC

Photo may show similar product

Other views

DKM FX HD Video and Peripheral Matrix Switch CATx SFP

For adding a single CATx port to your crosspoint DKM FX HD Video and Peripheral Matrix switching system.

ACXSFPC

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Provides one CATx input/output for the DKM FX HD Video and Peripheral Matrix switching system.
  • Plugs into a slot on the empty DKM FX HD Video and Peripheral Matrix Switch SFP I/O Module (ACXIO8-SFP).

  • Description

    DKM FX HD Video and Peripheral Matrix Switch CATx SFP


    Quick Facts

  • Provides one CATx input/output for the DKM FX HD Video and Peripheral Matrix switching system.
  • Plugs into a slot on the empty DKM FX HD Video and Peripheral Matrix Switch SFP I/O Module (ACXIO8-SFP).

  • Further Details

    NOTE: EIA/TIA-568-B (1000BASE-TX) cabling required. All four wire pairs are used. Solid-core, 24 AWG shielded CAT5e or better cable is recommended for interconnections.


    Technical Specifications for DKM FX HD Video and Peripheral Matrix Switch CATx SFP:


    CE Approval — Yes
    RoHS — Yes
    Connectors — (1) RJ-45 (1000BASE-TX)
    Distance (Maximum) — Without extenders, amplfiers, or boosters:
    Over solid CATx: 400 feet (140 m) Over stranded CATx: 200 feet 70 m)

    This product works with:
  •  DKM FX HD Video and Peripheral Matrix Switch Empty SFP I/O Module, 8-Port (ACXIO8-SFP)
  • DKM FX HD Video and Peripheral Matrix Switch Chassis (ACX048, ACX080, ACX160, ACX288)
    Questions? Contact our FREE Tech Support.

    These DKM FX components are part of a complex and flexible modular system. You will need to contact Black Box to have them assembled to fit your application. To configure your DKM FX HD Video and Peripheral Matrix Switch setup, contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

  • Resources for DKM FX HD Video and Peripheral Matrix Switch CATx SFP:

    Manuals

    • DKM FX and DKM FX Compact API User Manual
      User Manual for the ACX048, ACX080, ACX160, ACX288, ACXIO8-C, ACXIO8-SM, ACXIO8-SPF, ACX288-CTL, ACXSFPC, ACXSFPS, ACX080-PS, ACX160-PS, ACX288-PS, ACXC16, ACXC32, & ACXC48 (Version 1)
    • ServSwitch%X99 DKM FX and DKM FX Compact
      Manual for ACX048, ACX080, ACX160, ACX288, ACXIO8-C, ACXIO8-SM, ACXIO8-SPF, ACX288-CTL, ACXSFPC, ACXSFPS, ACX080-PS, ACX160-PS, ACX288-PS (Version 2)

    Visio Stencils

    • Visio Stencil
      Stencil Drawings
