KVM > Server Room/Enterprise KVM

click photo to enlarge

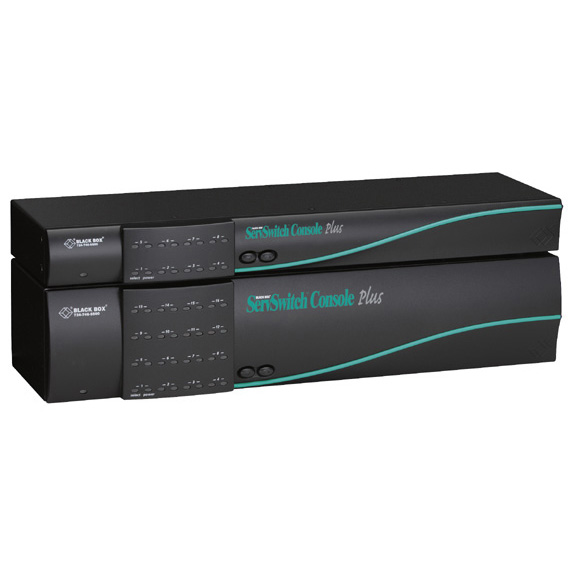

KV103A

Photo may show similar product

Other views

ServSwitch Console Plus KVM Switch, 16-Port

Use a single KVM station to access both CPUs and serial devices.

KV103A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Now supports USB keyboards and mice.
  • It’s a multiplatform KVM switch and serial console in one chassis!


    • Description

    ServSwitch Console Plus, 16-Port


    Quick Facts

  • Now supports USB keyboards and mice.
  • It’s a multiplatform KVM switch and serial console in one chassis!

    • Further Details

  • Connects up 1000 CPUs or servers to a single-user console station.
  • Convenient and safe switching with on-screen menus and security features.
  • Cable distances of up to 100 feet (30.4 m) without additional extension products.
  • Supports PC, Sun, Mac, UNIX, and Linux systems.

    No more switching user stations to access both your servers and serial devices! The ServSwitch Console Plus puts you in complete control. It’s a multiplatform, single-user CPU management switch that features built-in async serial support.

    With the Console Plus, you can streamline your data center or server room and provide a central management station for your system. And because the switch has an advanced distributed design, it eliminates single points of failure.

    CPU ports that double as serial ports.
    By simply configuring any of the switch’s CPU ports as serial ports, you can use the ServSwitch Console Plus to access Ethernet hubs, UNIX® devices, and other equipment with serial connections. In effect, the switch acts as a dumb terminal with an eight-page scroll buffer to enable easy monitoring of your serial equipment.

    The Console Plus’ interface is so powerful that it’s actually a color VT220™ terminal. When you connect to a serial device, you get a 24 x 80 full-screen display with two status lines. Linux® serial ports also display directory lists in color.

    Versatile, expandable, and compatible with the ServSwitch Remote.
    This multiplatform switch can handle PC, Sun®, Mac®, UNIX®, and Linux® machines simultaneously. Mix all platforms in a single installation and switch between them.

    Available in 4-, 8-, and 16-port models, the ServSwitch Console Plus is expandable for connections to as many as 1000 CPUs or servers. To daisychain multiple chassis and create a seamless KVM matrix switch, you simply connect the Console Plus units via an optional Expansion Module.

    And if you use the ServSwitch Console Plus with the ServSwitch Remote, Single-User, you can manage it remotely over an IP connection. Plus, because the ServSwitch Remote has multiplatform support, you can use your Console Plus to manage a server room mix of PC, Sun, and Mac servers from a remote location.

    Quick to set up, configure, and use.
    The Console Plus is easy to install. Connect your PC, Sun, Mac, UNIX, and Linux machines, and keyboard, monitors, and mice with the cables listed below.

    To configure the switch and its security features, simply access its intuitive on-screen pop-up menu system, which enables you to name your servers as you like. Settings are conveniently saved into flash memory.

    For maximum versatility, you can set up a Console Plus control station to connect in four modes: View, Share, Control, and Private. You can also configure the switch for multiple security levels by either autoassigning security settings to a single user station or requiring each user to log into the switch with a user ID and password.

    It’s easy to switch using the on-screen menu or simple keyboard commands.

    And there’s no need to worry about keyboard and mouse compatibility either. The Console Plus provides full keyboard and mouse emulation. In addition, it supports USB keyboards and mice. And it works with most major operating systems, including Windows®, Sun Solaris®, Linux, UNIX, SGI™, and Mac.

    To add new features or update the Console Plus’ firmware, flash upgrade via the switch’s RS-232 serial port.


    • Technical Specifications for ServSwitch Console Plus KVM Switch, 16-Port:

    Chassis Construction — Electrogalvanized steel with black powder coating
    Controls — Lighted on/off switch
    Operating Environment — Temperature: 32 to 113º F (0 to 45º C);
    Humidity: 5 to 80% noncondensing
    Video Bandwidth — KV101A–KV102A: 250 MHz;
    KV103A: 100 MHz
    Video Sync — HV sync, composite, sync-on-green
    CE Approval — Yes
    Indicators — LEDs: (1) Chassis Power;
    (4), (8), or (16) CPU Select;
    (4), (8), or (16) CPU Power
    Connectors — User port: (1) DB25 F;
    CPU ports: (4), (8), or (16) DB25 F;
    Expansion port (optional): (1) DB15 M, (1) DB15 F;
    RS-232 serial port: (1) RJ-12 (6-wire RJ-11);
    Power: (1) IEC 320
    Power — 90–240 VAC, 47–60 Hz, autoswitching
    Size — KV101A–KV102A: 1.75"H (1U) x 16.7"W x 4.9"D (4.4 x 42.4 x 12.4 cm);
    KV103A: 3.5"H (2U) x 16.7"W x 4.9"D (8.9 x 42.4 x 12.4 cm)
    Weight — KV101A–KV102A: 4 lb. (1.8 kg);
    KV103A: 8 lb. (3.6 kg)
    NOTE: For higher resolutions and connections up to 100 feet (30.4 m), order coax cables.

    These products work with:
    • ServSwitch Affinity Expansion Cables, DB15 (KV140010, KV140050, KV140100)
    • ServSwitch Affinity and Matrix ServSwitch Serial Cables (EHN290–EHN293)
    • Standard CPU/Server to ServSwitch Cables (EHN048, EHN151, EHN215)
    • Coax CPU/Server to ServSwitch Cables (EHN282, EHN382, EHN206, EHN515, EHN208)
    • ServSwitch USB Coax CPU Cables (EHN485)
    • Standard ServSwitch to Keyboard/Monitor/Mouse Cables (EHN154, EHN052, EHN210)
    • Coax ServSwitch to Keyboard/Monitor/Mouse Cables (EHN283, EHN383, EHN270, EHN201, EHN225, EHN203)
    • ServSwitch USB to PS/2 Flashable User Cables (EHNUSB)
    • Low-Smoke, Zero-Halogen ServSwitch to Keyboard/Monitor/Mouse Cables (User Cables) (EHN383-LS)
    • Low-Smoke, Zero-Halogen CPU/Server to ServSwitch Cables (Server Cables) (EHN382-LS, EHN485-LS)

    Also work with:
    • Matrix ServSwitch Expansion Module (SW740C-R3-B)
    • ServSwitch Rackmount Kits (RMK19M, etc.)
    • ServSwitch Remote Single-User (ACR9005A)
    Questions? Contact Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for ServSwitch Console Plus KVM Switch, 16-Port:

    Product Data Sheets

    Black Box Explains


    Connect your ServSwitch Console Plus KVM Switch, 16-Port with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A One year warranty is included.

    Extended Two years for one Warranty Available


    Protect your purchase with an additional Two years for oneDouble Diamond™ warranty!
    Cost: $281.00

    Extended Three years for two Warranty Available


    Protect your purchase with an additional Three years for twoDouble Diamond™ warranty!
    Cost: $561.99

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    The most complete product warranty exclusively from Black Box

    The Double Diamond™ Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most products come with a one- or two-year warranty. Some products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life! Standard Warranty features are as follows:

    Worry-Free Purchases

    If your new Black Box® brand products are accidentally damaged, you're covered with this no-questions asked warranty. FREE

    Coverage

    Double Diamond™ is the standard warranty that comes with your new Black Box® brand product. Most products come with a one- or two-year warranty.

    Lifetime Guarantees

    Many products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life.

    Fast Service

    During the warranty period, Black Box® Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Extra Coverage

    Extend your warranty or protect a previously purchased Black Box® brand product* for an additional year for only 10% of the current retail price! And when you do, we give you the second year of extended coverage free! FREE Tech Support Hotline. No cost. No contracts. No kidding!

    No-Risk 45-Day Return Policy

    If it's not right, send it back.
    (Excludes custom built products)

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! Forget It.
    Tech Support Hotline 100% FREE! $$$
    Product SKU Price Quantity
    ServSwitch Console Plus KVM Switch, 16-Port KV103A $2,809.95

    ServSwitch Console Plus KVM Switch, 8-Port KV102A $1,529.95
