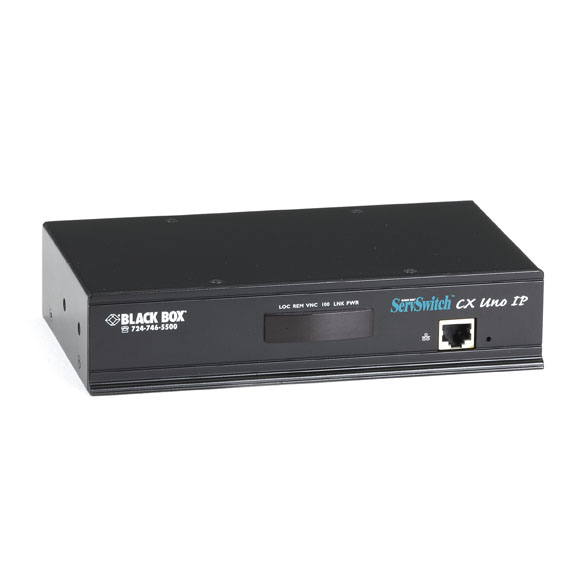

ServSwitch CX Uno with IP, 8-Port

Local, remote, and global access and management for one user in a multiplatform KVM switch with IP.

KV1081A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • IP support enables you to access servers remotely.
  • Connect one local or one IP user to 8 servers over TCP/IP with VNC software.
  • Resolutions up to 1600 x 1200 with DDC emulation.

  • Description

    ServSwitch CX Uno with IP, 8-Port


    Quick Facts

  • IP support enables you to access servers remotely.
  • Connect one local or one IP user to 8 servers over TCP/IP with VNC software.
  • Resolutions up to 1600 x 1200 with DDC emulation.

  • Further Details

  • Supports USB-style keyboard and mouse (PC, Mac® or Sun®).
  • DDC emulation is enhanced by DC balancing to ensure true colors.
  • Cascade up to 256 servers.
  • Comes with free WIZARD.NET software.

  • The ServSwitch CX Uno KVM Switch with IP, 8-Port, enables one local or one remote user to connect to eight servers. This multiplatform KVM switch connects via CATx twisted-pair cable.

    The CX Uno with IP also enables you to access servers across any IP network. Access and switch remotely over a private intranet or over the Internet. All you need is a Java enabled Web browser or VNC client.

    Security is tight
    You can set up the ServSwitch CX Uno KVM Switch with IP, 8-Port, behind the security of your network firewall, and it also has the security features it needs to be safe on its own. This enterprise-grade KVM switch uses AES128 bit encryption and RSA2048 authentication, ensuring your control system remains secure at all times. You can also configure eight separate users internally with unique access privileges, all of which are stored only within the switch.

    Easy connections are standard
    Connect user stations and servers via lightweight and inexpensive CAT5, CAT5e, or CAT6 UTP cable—no bulky KVM cables needed. UTP cable provides more distance than KVM cable to connect the servers. Use Server Access Modules (SAMs) to provide keyboard, video, mouse, and speaker connections. Servers may be placed 32 feet (9.8 m) from the switch.

    Green technology
    The ServSwitch CX Uno KVM Switch with IP, 8-Port features Ecopulse circuitry. Ecopulse powers down unused circuits when they are not required. Over the life of the switch, this reduction of power saves significant resources.


    Technical Specifications for ServSwitch CX Uno with IP, 8-Port:

    Approvals CE, RoHS
    Distance (Maximum, between the computer and the switch) 32 feet (9.8 m)
    Resolution 1600 x 1200 at 60 Hz over VNC maximum
    Connectors Local: Video: HD15 F;
    Keyboard/Mouse: (2) USB Type A;
    Audio: (1) 3.5 mm;
    CPU: CATx: (8) RJ-45;
    10/100 autosensing Ethernet: (1) RJ-45;
    Power: (1) 2.5-mm DC jack;
    Serial: (1) DB9 M
    Power 100-240 VAC 0.5A 50-60 Hz
    Dimensions 1.75"H (1U) x 7.92" W x 4.8"D (4.4 x 19.8 x 12 cm)

    This product works with:
  • ServSwitch CX Server Access Modules (KV1400A–KV1403A)
  • Questions? Call our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for ServSwitch CX Uno with IP, 8-Port:

    Manuals

    • ServSwitch CX Uno with IP User Manual
      User Manual for the KV1081A and KV1161A (Version 1)

    Visio Stencils

    • Visio Stencil
      Stencil Drawings

    Firmware

    • ServSwitch CX Uno with IP Firmware
      Firmware for the KV1081A & KV1161A (Version 1.12)


    Connect your ServSwitch CX Uno with IP, 8-Port with:

    Accessory: KV1400A

    ServSwitch™ CX Server Access Module, PS/2®

    ServSwitch™ CX Server Access Module, PS/2

    Accessory: KV1401A

    ServSwitch™ CX Server Access Module, USB

    ServSwitch™ CX Server Access Module, USB

    Accessory: KV1402A

    ServSwitch™ CX Server Access Module, PS/2 with Audio

    ServSwitch™ CX Server Access Module, PS/2 with Audio

    Accessory: KV1403A

    ServSwitch™ CX Server Access Module, USB with Audio

    ServSwitch™ CX Server Access Module, USB with Audio
