KVM > Server Room/Enterprise KVM

click photo to enlarge

KV0081A

Photo may show similar product

Other views

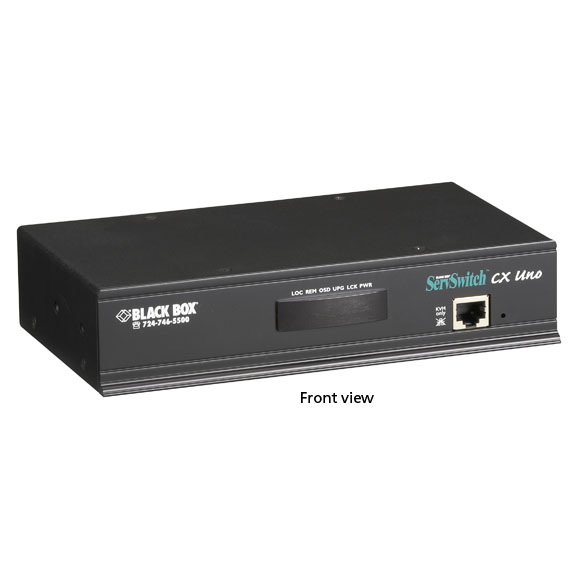

ServSwitch CX Uno, 8-Port

High-end, multiplatform KVM switching over CATx with remote access.

KV0081A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Place the remote console up to 984.3 feet (300 m) away.
  • Supports resolutions up to 1920 x 1200 at 60 Hz.
  • Reads DDC EDID from the display to avoid plug-and-play issues.

  • Description

    ServSwitch CX Uno, 8-Port


    Quick Facts

  • Place the remote console up to 984.3 feet (300 m) away.
  • Supports resolutions up to 1920 x 1200 at 60 Hz.
  • Reads DDC EDID from the display to avoid plug-and-play issues.

  • Further Details

  • Shared local and remote user console.
  • Stereo audio support.
  • CATx cabling means you can cascade 31 CPUs in 1U.
  • Flash upgradable.
  • A 16-port version is also available.


  • Add PS/2®, USB, or Sun® Server Access Modules (SAMs) to your ServSwitch CX Uno, 8-Port. All platforms are available with stereo audio support for speakers, too! Place servers up to 32.8 feet (10 m) from the switch and connect them with a simple CATx cable.

    Small size, big delivery
    Less than half the width of a standard 19" mountable device, the ServSwitch CX Uno supports up to 31 cascaded servers in 1U of rack space. Added to a KVM drawer like the ServView KVM Drawer (KVT317A), it’s an ideal solution for dense server rack environments.

    Remote access option via CATx
    With the Remote Access Modules for the CX Uno for PS/2 or USB (KV04-REM or KV04U-REM series), a remote user has access to the attached servers from more than 900 feet (300 m) away using a single CATx cable. Remote control option
    Like all CX series switches, the CX Uno can be switched remotely via RS-232 commands. You can also synchronize the switching of multiple units, enabling support for multi-head video.

    What’s included:
  • (1) ServSwitch CX Uno, 8-Port
  • (1) Power supply
  • (1) IEC 320 power cord
  • (1) User’s manual on CD

  • Technical Specifications for ServSwitch CX Uno, 8-Port :

    Connectors — (8) RJ-45; (1) RJ-45 F; (1) RS-232 M; (2) USB Type A F; (1) HD15 F; (1) 3.55-mm audio jack F
    Power Supply — 100–240 VAC/5 VDC 2 6A autosensing
    CE Approval — Yes
    Size — 1.7"H x 7.9"W x 4.7"D (4.4 x 20 x 12 cm)
    Weight — 1.5 lb. (0.7 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for ServSwitch CX Uno, 8-Port :

    Manuals

    • ServSwitch CX Uno User Manual
      User Manual for the KV0081A and KV0161A (Version 1)

    Product Data Sheets

    Firmware

    • ServSwitch CX Uno Firmware
      Firmware, Version 1.05, for the KV0081A and KV0161A
