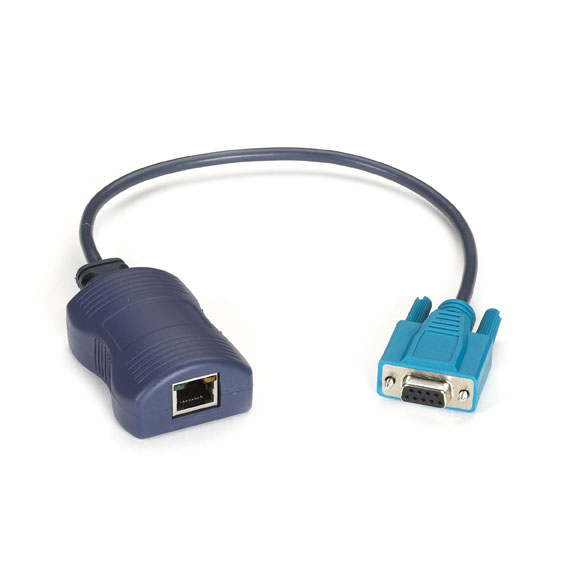

ServSwitch CX Quad IP CATx Server Access Module, Serial

Use this SAM to gain RS-232 connectivity to target machines.

KV1407A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Access up to 16 serial devices with Server Access Modules for the CX Quad IP KVM Switch.
  • One SAM is required for each serial device.
  • Use CATx cable to connect the Server Access Module (SAM) to the CX CPU port.


  • Description

    ServSwitch CX Quad IP CATx Server Access Module, Serial


    Quick Facts

  • Access up to 16 serial devices with Server Access Modules for the CX Quad IP KVM Switch.
  • One SAM is required for each serial device.
  • Use CATx cable to connect the Server Access Module (SAM) to the CX CPU port.

  • Further Details

  • Place server up to 32 feet (9.8 m) away from the switch.
  • "Keep alive" feature powers module even if switch loses power.
  • Flash upgradable.

  • Serial interfaces can be used for server control or power control where serial configuration is available.



    Technical Specifications for ServSwitch CX Quad IP CATx Server Access Module, Serial:

    Approvals FCC
    Compatibility Operating system independent
    Distance (Maximum) 32 feet (9.8 m) over CATx cable
    Environmental
    CE Approval Yes
    Connectors (1) RJ-45, (1) DB9 F
    Power Input: DB9 interface powered
    Size 1.1"H x 1.9"W x 3.25"D (2.8 x 4.8 x 8.3 cm), ABS molded plastic


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for ServSwitch CX Quad IP CATx Server Access Module, Serial:

    Manuals

    • ServSwitch CX Server Access Module User Manual
      User Manual for the KV1400A, KV1401A, KV1402A, KV1403A, KV1404A, KV1405A KV1406A, KV1407A, KV1408A, and KV1409A (Version 1)

    Visio Stencils

    • Visio Stencil
      Stencil Drawings


    Connect your ServSwitch CX Quad IP CATx Server Access Module, Serial with:
