Video & Multimedia > Switches

click photo to enlarge

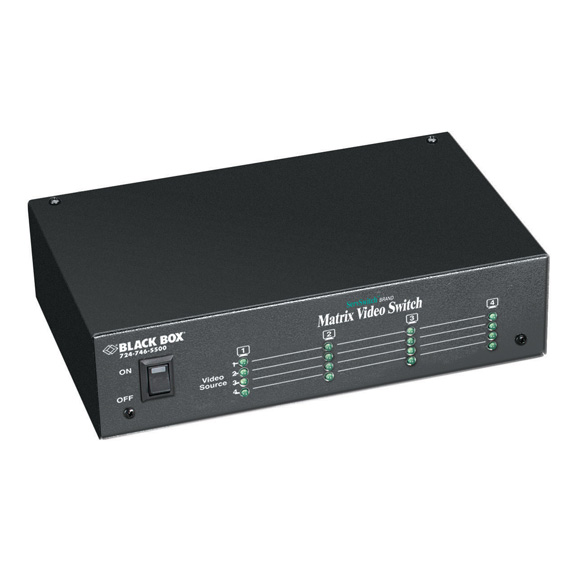

ACL0404A

Photo may show similar product

Other views

ServSwitch Brand Video Matrix Switch, 4 x 4

Mix and match video displays from four or eight PCs.

ACL0404A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Send video from up to four PCs to up to four video monitors in any combination with the 4 x 4 model.
  • Or use the 8 x 2 model to send video from up to eight PCs to two monitors.

  • Description

    ServSwitch Brand Video Matrix Switch, 4 x 4


    Quick Facts

  • Send video from up to four PCs to up to four video monitors in any combination with the 4 x 4 model.
  • Or use the 8 x 2 model to send video from up to eight PCs to two monitors.

  • Further Details

  • Easy switching with the included keypad.
  • Compatible with SVGA (RGBHV), RGBS, or RGsB with resolutions up to 1600 x 1200 pixels.
  • Set up a video presentation for your trade show booth and provide real-time information updates on multiple screens.
  • No special cables required—the switches use ordinary VGA cable.
  • Support total cable length of 150 feet (45.7 m).
  • All inputs are terminated and all outputs are buffered using special video amplifiers.
  • Perfect video—even at 1600 x 1200 resolution.

  • Share and switch between as many as four video sources for output to multiple video monitors with this high-bandwidth, keypad- or PC-controllable VGA/SVGA switch.


    What's included:
    • (1) switch
    • (1) keypad
    • (1) power supply
    • (1) user’s manual

    This product works with:
    • VGA Source Balun (AC640A)
    • CAT5 Video/RS-232 Extender Kit (AC163A)
    • Premium VGA Video Extension Cable (EVNPS05)
    Questions? Contact our FREE Tech Support.


    Technical Specifications for ServSwitch Brand Video Matrix Switch, 4 x 4:

    Hardware Requirements — CPU: Standard VGA and associated syncs on HD15 connector;
    Monitor: SVGA, RGBS, RGsB
    Resolution (Maximum) — 1600 x 1200
    CE Approval — Yes
    Connectors — (8) HD15 F, (1) DB9 F (RS-232)
    Power — Switch: 110–230 VAC, 50–60 Hz, external, autosensing;
    Keypad: Powered from the switch
    Size — 2.3"H x 8.3"W x 5.3"D (5.8 x 21.1 x 13.5 cm)
    Weight — Switch: 2.2 lb. (1 kg); Keypad: 1 lb. (0.5 kg); Power supply: 3 lb. (1.4 kg)
    This product works with:
    • VGA Source Balun (AC640A)
    • CAT5 Video/RS-232 Extender Kit (AC163A)
    • Premium VGA Video Extension Cable (EVNPS05)
    Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for ServSwitch Brand Video Matrix Switch, 4 x 4:

    Manuals

    • ServSwitch Brand Matrix Video Switch
      Installation/User

    Product Data Sheets


    Connect your ServSwitch Brand Video Matrix Switch, 4 x 4 with:

    Accessory: AC163A

    CAT5 Video/RS-232 Extender Kit

    CAT5 Video/RS-232 Extender Kit

    Accessory: EVNPS05-0003-FF

    Premium VGA Video Cable, PVC, 3-ft. (0.9-m)

    Premium VGA Video Extension Cable, Straight Hoods, Female/Female, 3-ft. (0.9-m)
