KVM > Extenders

click photo to enlarge

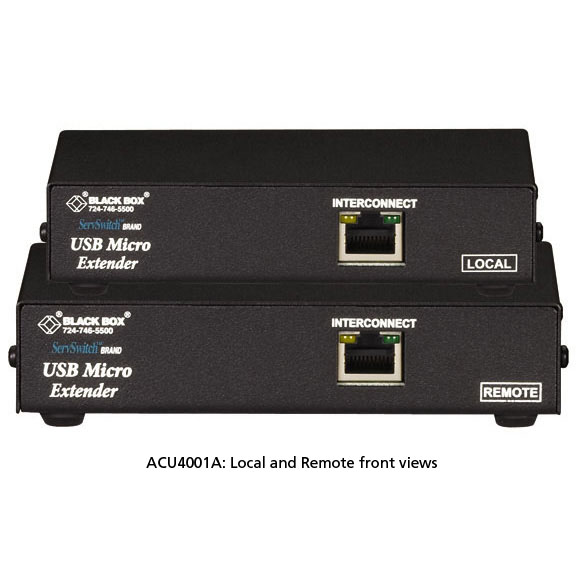

ACU4001A

Photo may show similar product

Other views

ServSwitch Brand USB Micro Extender Kit, Single-VGA

Transmits video up to 164 feet (50 m) away!

ACU4001A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Transmits one VGA signal plus USB 1.1 signals up to 164 feet (50 m) over CAT5, CAT5e, and CAT6 UTP cable.
  • Supports up to 1600 x 1200 resolution.
  • Features local video passthrough.

  • Description

    ServSwitch Brand USB Micro Extender Kit, Single-VGA


    Quick Facts

  • Transmits one VGA signal plus USB 1.1 signals up to 164 feet (50 m) over CAT5, CAT5e, and CAT6 UTP cable.
  • Supports up to 1600 x 1200 resolution.
  • Features local video passthrough.

  • Further Details

  • Remote unit includes a built-in 4-port USB hub.
  • Easy plug-and-play installation.


    The ServSwitch Brand USB Micro Extender Kit, Single-VGA, enables you to place your workstation up to 164 feet (50 m) away from a server with a USB keyboard and mouse console. The extenders transparently send VGA and USB 1.1 signals over CAT5/5e/6 cable. And with up to 1600 x 1200 resolution, you get sharp, clear video, even on large monitors.

    A 4-port USB hub built into the USB remote unit enables you to connect USB 1.1 devices such as memory sticks and PDAs in addition to the keyboard and mouse.

    All purpose
    The extenders are flash upgradable and provide local passthrough for video signals so you can connect a local VGA monitor for administration.

    What's included:
  • Local unit
  • Remote unit
  • (1) 9-VDC 1-amp power supply transformer and output cord
  • (1) power supply input cord suitable for your country or region
  • (1) 3-ft. (0.9-m) HD15 to HD video cable
  • (1) 3-ft. (0.9-m) Micro Extender cable (EHN230-0003)
  • (1) 5-VDC power supply
  • (1) 3.3-ft. (1-m) USB/Video Cable with USB connector and VGA video (HD15 M-F)
  • User’s guide

  • Technical Specifications for ServSwitch Brand USB Micro Extender Kit, Single-VGA:

    Connectors — Local unit: (1) HD15 F, (1) HD15 M, (1) USB Type B F, (1) barrel power jack, (1) RJ-45;
    Remote unit: (1) HD15 F, (4) USB Type A F, (1) barrel power jack, (1) RJ-45
    CE Approval — Yes
    Power — Local unit: Via USB interface or optional external 5-VDC power supply (PSU1006E-R2; call our FREE Tech Support);
    Remote unit: Included external power supply, 100–240 VAC, 50–60 Hz
    Size — Local unit: 1.1"H x 4.7"W x 4.3"D (2.8 x 11.9 x 10.9 cm);
    Remote unit: 1.1"H x 5.4"W x 3.9"D (2.8 x 13.7 x 9.9 cm)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for ServSwitch Brand USB Micro Extender Kit, Single-VGA:

    Manuals

    • ServSwitch USB Micro Extender
      Installation and User Guide (6/5/2012)

    Product Data Sheets

    Software

    • ServSwitch Brand KVM Extender Software


    Connect your ServSwitch Brand USB Micro Extender Kit, Single-VGA with:

    Accessory: ACU4222A

    ServSwitch Brand USB Micro Extender Kit, Dual-VGA with Serial and Audio

    ServSwitch Brand USB Micro Extender Kit, Dual-VGA with Serial and Audio

    Accessory: ACU4201A

    ServSwitch Brand USB Micro Extender Kit, Dual-VGA

    ServSwitch Brand USB Micro Extender Kit, Dual-VGA

    Accessory: RMK19U-X3

    ServSwitch Brand CATx Extender Rackmount Kit, 19" Rack

    For ServSwitch Brand CATx Extenders, 19" Rack
