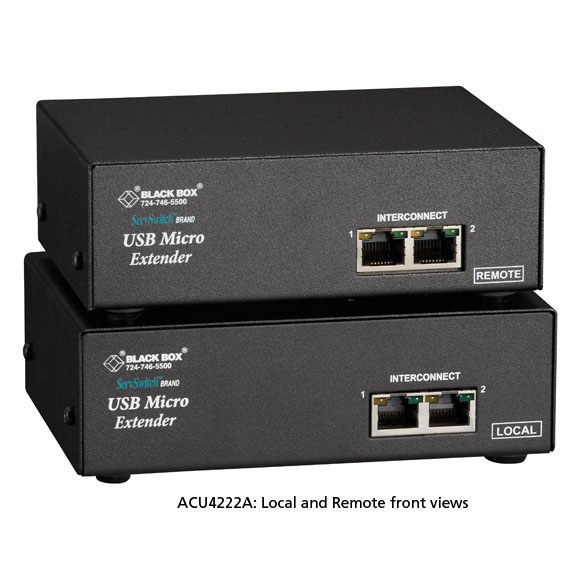

ACU4222A

Photo may show similar product

Other views

ServSwitch USB Micro Extender Kit, Dual-VGA with Serial and Audio

Put your USB keyboard, USB mouse, and up to two VGA monitors up to 164 feet (50 m) from your CPU.

ACU4222A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • The kit provides USB 1.1 and two VGA links over a pair of CAT5, CAT5e, or CAT6 UTP cables.
  • Supports up to 1600 x 1200 resolution.
  • Enables up to six transparent serial connections up to 19.2 kbps.


  • Description

    ServSwitch USB Micro Extender Kit, Dual-VGA with Serial and Audio


    Quick Facts

  • The kit provides USB 1.1 and two VGA links over a pair of CAT5, CAT5e, or CAT6 UTP cables.
  • Supports up to 1600 x 1200 resolution.
  • Enables up to six transparent serial connections up to 19.2 kbps.

  • Further Details

  • Supports two monitors.
  • Enables you to connect devices such as touch screens and hear audible alarms.
  • Standalone remote unit works with our CAT5 KVM Extender Hubs.
  • Includes a local and a remote unit.
  • Remote unit includes a built-in 4-port USB hub.


  • Our ServSwitch USB Micro Extender Kit, Dual-VGA with Serial and Audio, enables you to place your workstation up to 150 feet (45.7 m) away from a server with a USB keyboard and mouse console. The extenders transparently send VGA and USB 1.1 signals over CAT5/5e/6 cable. And with up to 1600 x 1200 resolution, you get sharp, clear video, even on large monitors.

    A 4-port USB hub built into the USB remote unit enables you to connect USB 1.1 devices such as memory sticks and PDAs in addition to the keyboard and mouse.

    "I need two."
    The ServSwitch USB Micro Extender Kit, Dual-VGA with Serial and Audio, supports two monitors. The additional VGA signals runs over a second CAT5/5e/6 cable.

    Send serial and audio, too

    The serial signals enable you to connect to serial touch screens and printers. An audio extension provides bidirectional stereo transmission so you can hear audible alarms at your workstation.
    All purpose
    The extenders are flash upgradable and provide local passthrough for video signals so you can connect a local VGA monitor for administration.

    What's included:
  • Local unit
  • Remote unit
  • (1) 9-VDC 1-amp power supply transformer and output cord
  • (1) power supply input cord suitable for your country or region
  • (1) 3-ft. (0.9-m) HD15 to HD video cable
  • (1) 3-ft. (0.9-m) Micro Extender cable (EHN230-0003)
  • (1) 5-VDC power supply
  • (1) 3.3-ft. (1-m) USB/Video Cable with USB connector and VGA video (HD15 M-F)
  • (1) serial cable with DB9 M-F connectors
  • (2) 3.5 mm stereo-plug audio cables
  • User's guide

  • Technical Specifications for ServSwitch USB Micro Extender Kit, Dual-VGA with Serial and Audio:

    Connectors Local unit: (2) HD15 F, (2) HD15 M, (1) USB Type B F, (1) barrel power jack, (2) RJ-45, (2) 3.5-mm audio jacks, and (1) DB9 F;
    Remote unit: (2) HD15 F, (4) USB Type A F, (1) barrel power jack, (2) RJ-45, (2) 3.5-mm audio jacks, and (1) DB9 M
    CE Approval Yes
    Power Local unit: Via USB interface or optional external 5-VDC power supply (PSU1006E-R2; call our FREE Tech Support);
    Remote unit: Included external power supply, 100-240 VAC, 50-60 Hz
    Size Local unit: 1.7"H x 5.8"W x 4.3"D (4.3 x 14.7 x 10.9 cm);
    Remote unit: 1.7"H x 5.4"W x 3.9"D (4.3 x 13.7 x 9.9 cm)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
