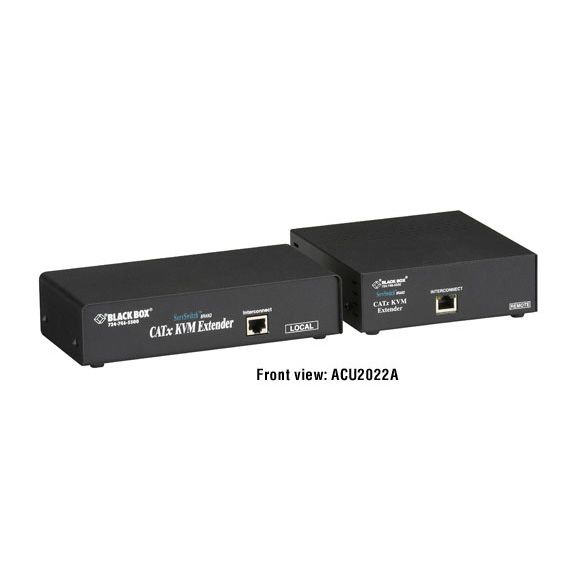

ACU2022A

Photo may show similar product

Other views

ServSwitch Single-Video CATx KVM Extender with Serial and Audio, Single-Access Kit

Add serial and audio support for alarms, touch screens, and kiosk applications.

ACU2022A

Extended Double Diamond™ Warranty Available (3 Additional Year)

Product Highlights

  • Attach a remote station with a serial device, such as a touch screen, and place audio devices, such as speakers, microphones, and headphones up to 984.2 feet (300 m) from the CPU.


  • Further Details

  • Extend RS-232 port data and high-quality sound.
  • Place a serial device and audio device at the remote site.
  • At a maximum distance of 984.2 feet (300 m), you get resolution up to 1280 x 1024.
  • Get a maximum resolution of 1600 x 1200 at up to 656.1 feet (200 m).
  • Remote unit includes built-in skew compensator.
  • Video settings store in nonvolatile memory.
  • Flash-upgradable standalone remote unit.
  • Keyboard/mouse emulation provides keep-alive functionality.
  • All monitor skew compensation can be fine-tuned easily via keyboard hotkey commands—even at long distances and high resolutions.
  • Dual-access kits are available.
  • Models with serial and audio support are also available.
  • Rackmount in our RMK19U-X3 19" Rackmount Kit.
  • To convert your USB-style keyboard and mouse signals to PS/2®, order the USB to PS/2 Converter (KVUSB).
  • Use in applications in which you need to hear audio alerts on remote monitors and need to connect serial devices, such as touch screens.

  • The extender comes in a kit that includes local and remote units, which are connected with a single CAT5 or higher cable. All keyboard, mouse, and video signals (as well as serial and audio signals on models that support them) are fully buffered to ensure consistent remote operation of your PC.

    Ultimate video at the remote end.
    No matter what CAT5 or higher cable you use, you can expect clear, high resolution at the remote end with these KVM extenders. That’s because the CATx kits’ remote units and individual standalone remote units feature a built-in skew compensator. Color drift—caused by the different twist ratios of the twisted pair cable—is eliminated. The skew compensator removes the unsightly color shadows by delaying some color signals so that all color signals arrive at the same time at the remote end. This skew compensation works with all colors transmitted.

    You can fine-tune the monitor image via simple keyboard hotkey commands to fix skew attenuation and losses. Use keyboard controls to equalize red, green, and blue to compensate for the differing pair lengths found in CAT5e and higher cables. Independent low-frequency (LF) and high-frequency (HF) equalization adjustment ensure optimum video tuning. The precise equalization enables resolution of 1280 x 1024 up to 984.2 feet (300 m) or 1600 x 1200 resolution up to 656.1 feet (200 m). Preset modes also help you find the right image balance quickly, and Quick Skew features help make video tuning nearly automatic.

    ServSwitch Single-Video CATx KVM Extenders save all video settings in nonvolatile memory.

    Add standalone remote units to existing extender applications.
    Do you already have a ServSwitch Extender at work for you? Want to add enhanced video capabilities? Just order a ServSwitch CATx KVM Extender Remote Unit (ACURA001A). These standalone remote units feature easy-to-adjust skew compensation and are compatible with many of our ServSwitch CAT5 Extenders. To determine which CATx KVM Extender Remote Unit will work with the extender you have, contact ServSwitch Central™ at 724-746-5500 or by clicking "Talk to a Tech."

    Plug in your connections and go.
    Setup is simple. Connect the local and remote units to each other, make any necessary serial and audio connections, and adjust your video compensation to your liking. The extenders are easy to operate and require no software.

    Because the extenders perform complete PS/2 keyboard and mouse emulation, you can boot the PC without having a keyboard or mouse attached to it. What’s more, the extenders are compatible with Microsoft® IntelliMouse® and other wheel mice.

    The Kit includes:
  • Local unit
  • Remote unit
  • Cable from CPU to local unit
  • Video input cable
  • 9-volt power supply and power cord
  • Serial cable
  • Audio cable

  • Clamping Voltage 15 volts
    Compatibility Keyboard: PS/2, PC/AT® (with optional AC244A and FA212-R2);
    Video: VGA, Super VGA, XGA;
    Mouse: PS/2 mouse only (user)
    Resolution (Maximum) 1600 x 1200, 60 Hz at 200 m (656.1 ft.) and 1280 x 1024, 75 Hz at 300 m (984.2 ft.); higher resolutions may be possible at shorter distances
    CE Approval Yes
    Connectors (2) 6-pin mini DIN F, (1) HD15 M, (1) RJ-45, (2) 3.5-mm audio jacks, (1) DB9 F
    Power Local unit: From the PC;
    Remote unit: 100–240 VAC, 50–60 Hz, external, autosensing, with IEC 320 connector
    Size Local unit: 1.7"H x 3.9"W x 7.8"D (4.3 x 9.9 x 19.8 cm);
    Remote unit: 1.7"H x 5.7"W x 5.5"D (4.3 x 14.5 x 14 cm)

    The Kit includes:
  • Local unit
  • Remote unit
  • Cable from CPU to local unit
  • Video input cable
  • 9-volt power supply and power cord
  • Serial cable
  • Audio cable


  • NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.
