KVM > Extenders

click photo to enlarge

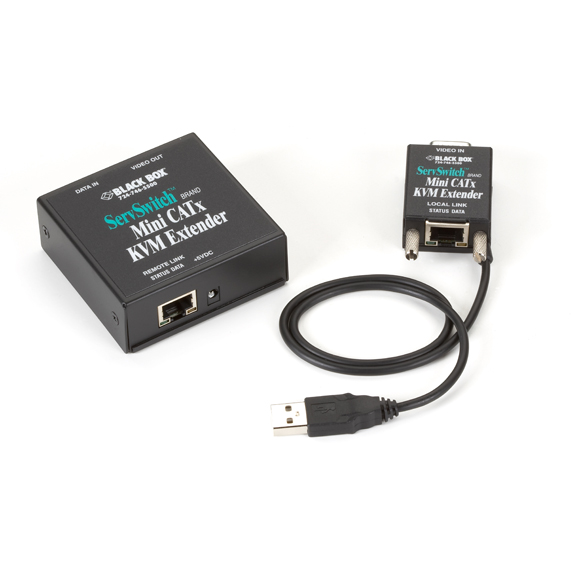

ACU7009A

Photo may show similar product

Other views

ServSwitch™ Brand Mini CATx KVM Extender with Automatic Skew Compensation, Local CPU to Remote Station Kit, USB

Extend KVM transmissions to 1000 feet with skew compensation over CAT5e or CAT6 UTP.

ACU7009A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Place a remote control station up to 1000 feet (304.8 m) from local equipment.
  • Extend USB computers with a USB keyboard and mouse and a VGA monitor.
  • Resolution of 1024 x 768 at 1000 feet (304.8 m); higher resolutions at shorter distances.
  • Ideal for moving your computer to a safe, clean environment.


    • Description

    ServSwitch™ Brand Mini CATx KVM Extender with Automatic Skew Compensation, Local CPU to Remote Station Kit, USB


    Quick Facts

  • Place a remote control station up to 1000 feet (304.8 m) from local equipment.
  • Extend USB computers with a USB keyboard and mouse and a VGA monitor.
  • Resolution of 1024 x 768 at 1000 feet (304.8 m); higher resolutions at shorter distances.
  • Ideal for moving your computer to a safe, clean environment.

    • Further Details

  • Automatically adjusts video quality and fixes color drift associated with CAT5e and CAT6 cable.
  • Connects directly to a PC’s VGA connector or to the DB25 connector of a ServSwitch.
  • Small size saves valuable desktop space.
  • Supports Windows® operating systems.
  • When the extender kit is initialized, it senses the distance of the CATx link.
  • Flash-upgradable firmware prevents obsolescence.
  • VESA-enhanced DDC enables plug-and-play capability.
  • After attaching the local and remote units to their respective equipment and connecting them via CATx cable, a Mini CATx KVM Extender automatically configures itself to send optimum video and transmit keyboard and mouse signals.
  • Emulates remote keyboard and mouse signals. If the remote keyboard and mouse are not connected, the local CPU can still boot as long as it is connected to the local extender unit.

    • Just when you thought our extenders couldn’t get any better, our ServSwitch™ Brand Mini CATx KVM Extender with Automatic Skew Compensation takes things to the next level. Although small in size, this kit has more features than many full-sized extenders.

    Support extension applications up to 1000 feet over CATx copper.
    The extender includes a local (transmitter) unit and remote (receiver) unit. Both units are connected with up to 1000 feet (304.8 m) of CAT5, CAT5e, or CAT6 cable.

    The Local CPU to Remote Station kit connects your remote control station to a single local CPU.

    Versatile for many extension needs.
    Use the extender in a variety of ways:
  • Move your CPU to a secure location, safe from unauthorized users.
  • Relocate your CPU to a clean environment to keep it away from dirt, dust, and industrial hazards.
  • Place your CPU a few feet from your control station to increase desktop space.
  • Connect to the user port of a ServSwitch and place a user up to 1000 feet (304.8 m) from the switch.
  • Connect to the CPU port of a ServSwitch to place a CPU up to 1000 feet (304.8 m) from the switch.

    NOTE: The ServSwitch Brand Mini CATx KVM Extender with Automatic Skew Compensation is compatible with most ServSwitch KVM products. For details, contact ServSwitch Central™ at 724-746-5500.

    This product works with:
  • ServSwitch Wizard™ Extender Kits (ACU5010A, etc.)
  • ServSwitch Brand Single-Video CATx KVM Extenders (ACU2001A, etc.)
    • Questions? Contact ServSwitch Central at 724-746-5500 or by clicking "Talk to a Tech."


    Technical Specifications for ServSwitch™ Brand Mini CATx KVM Extender with Automatic Skew Compensation, Local CPU to Remote Station Kit, USB:

    Compatibility — Keyboard: PC/AT®, USB;
    Monitor: VGA, Super VGA, XGA;
    Mouse: Microsoft® IntelliMouse®, Logitech® three-button, USB
    Resolution (Maximum) — Up to 200 ft. (60.9 m): 1600 x 1280;
    Up to 300 ft. (91.4 m): 1280 x 1024;
    Up to 1000 ft. (304.8 m): 1024 x 768
    Connectors — Local unit: Keyboard and mouse: (1) attached cable with (1) USB Type A M;
    Video: (1) HD15 M;
    Interlink: (1) RJ-45;
    Remote unit: Keyboard and mouse: (1) attached cable with (2) USB Type A F;
    Video: (1) HD15 F;
    Interlink: (1) RJ-45
    Power — Local unit: From the connected PC;
    Remote unit: 100–240 VAC, 50–60 Hz, external, autosensing, with IEC 320 connector
    Size — Local unit: 0.6"H x 1.4"W x 2.4"D (1.5 x 3.6 x 6.1 cm);
    Remote unit: 0.8"H x 2.2"W x 2.5"D (2 x 5.6 x 6.4 cm)
    NOTE: The ServSwitch Brand Mini CATx KVM Extender with Automatic Skew Compensation is compatible with most KVM ServSwitch products. For details, contact ServSwitch Central™ at 724-746-5500.

    This product works with:
  • ServSwitch Wizard™ Extender Kits (ACU5010A, etc.)
  • ServSwitch Brand Single-Video CATx KVM Extenders (ACU2001A, etc.)
    • Questions? Contact ServSwitch Central at 724-746-5500 or by clicking "Talk to a Tech."

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
