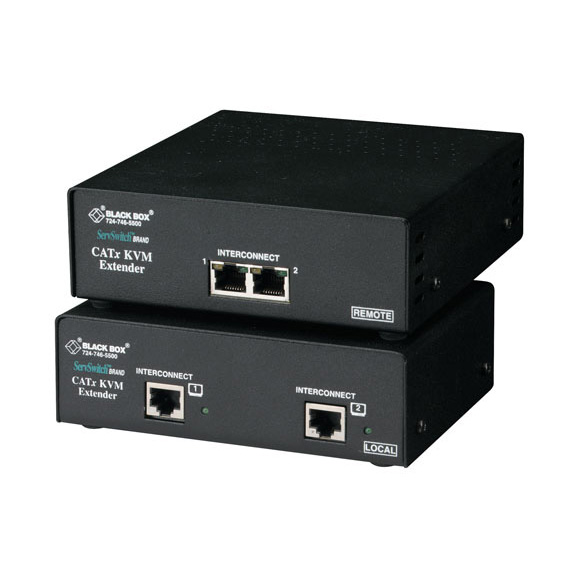

ACU2222A-R2

Photo may show similar product

Other views

ServSwitch Dual-Video CATx KVM Extender with Serial and Audio, Single-Access Kit

Extend the video from two monitors with serial and audio for touchscreen applications and more.

ACU2222A-R2

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Place your VGA monitors, keyboard, and mouse up to 984.2 feet (300 m) from a CPU.
  • Dual-video capability enables you to send two separate video channels.
  • Attach touchscreens and speakers with the serial/audio capability.


  • Description

    ServSwitch Dual-Video CATx KVM Extender with Serial and Audio, Single-Access Kit


    Quick Facts

  • Place your VGA monitors, keyboard, and mouse up to 984.2 feet (300 m) from a CPU.
  • Dual-video capability enables you to send two separate video channels.
  • Attach touchscreens and speakers with the serial/audio capability.

  • Further Details

  • Extend RS-232 port data and high-quality sound.
  • Place a serial device and audio device at the remot site.
  • Transmit near-digital audio to the remote unit.
  • Perfect for CPUs with multihead video.
  • Ideal for applications, such as touch screens and kiosks.
  • At a maximum distance of 984.2 feet (300 m), you get resolution up to 1280 x 1024.
  • Get a maximum resolution of 1600 x 1200 at 656.1 feet (200 m).
  • You can also get 1280 x 1024 resolution at 75 Hz up to 984.2 feet (300 m).
  • Remote unit includes built-in skew compensator.
  • Video settings store in nonvolatile memory.
  • Flash-upgradable standalone remote unit.
  • Keyboard/mouse emulation provides keep-alive functionality.
  • All monitor skew compensation can be fine-tuned easily via keyboard hotkey commands—even at long distances and high resolutions.
  • Works with CAT5, CAT5e, and CAT6 cables.
  • Use for a remote station with a serial device, such as a touchscreen and audio devices, such as speakers, microphones, and headphones.
  • A dual-access kit and Quad-Head models are available.
  • Models with serial and audio support are also available.
  • Rackmount in our RMK19U-X3 19" Rackmount Kit.
  • To convert your USB-style keyboard and mouse signals to PS/2®, order the USB to PS/2 Converter (KVUSB).

  • The extender comes in a kit that includes local and remote units, which are connected with CAT5 or higher cable. All keyboard, mouse, and video signals are fully buffered to ensure consistent remote operation of your PC.

    With this Dual-Access model, you can attach an additional monitor, keyboard, and mouse to the local unit. You can then operate the PC from either the local or remote user station. These stations share access on a "first come, first served" basis.

    Ultimate video at the remote end.
    No matter what CAT5 or higher cable you use, you can expect clear, high resolution at the remote end with these KVM extenders. That’s because the CATx kits’ remote units and individual standalone remote units feature a built-in skew compensator. Color drift—caused by the different twist ratios of the twisted pair cable—is eliminated. The skew compensator removes the unsightly color shadows by delaying some color signals so that all color signals arrive at the same time at the remote end. This skew compensation works with all colors transmitted.

    You can fine-tune the monitor image via simple keyboard hotkey commands to fix skew attenuation and losses. Use keyboard controls to equalize red, green, and blue to compensate for the differing pair lengths found in CAT5e and higher cables. Independent low-frequency (LF) and high-frequency (HF) equalization adjustment ensure optimum video tuning. The precise equalization enables resolution of 1280 x 1024 up to 984.2 feet (300 m) or 1600 x 1200 resolution up to 656.1 feet (200 m). Preset modes also help you find the right image balance quickly, and Quick Skew features help make video tuning nearly automatic.

    ServSwitch Brand Single-Video CATx KVM Extenders save all video settings in nonvolatile memory.

    Add standalone remote units to existing extender applications.
    Do you already have a ServSwitch Brand Extender at work for you? Want to add enhanced video capabilities? Just order a ServSwitch Brand CATx KVM Extender Remote Unit (ACURA002A). These standalone remote units feature easy-to-adjust skew compensation and are compatible with many of our ServSwitch Brand CAT5 Extenders. To determine which CATx KVM Extender Remote Unit will work with the extender you have, contact ServSwitch Central™ at 724-746-5500 or by clicking "Talk to a Tech."

    Plug in your connections and go.
    Setup is simple. Connect the local and remote units to each other, make any necessary serial and audio connections, and adjust your video compensation to your liking. The extenders are easy to operate and require no software.

    Because the extenders perform complete PS/2 keyboard and mouse emulation, you can boot the PC without having a keyboard or mouse attached to it. What’s more, the extenders are compatible with Microsoft® IntelliMouse® and other wheel mice.

    The Kit includes:
  • Local unit
  • Remote unit
  • Cable from CPU to local unit
  • Video input cable
  • Serial cable
  • Audio cable
  • 9-volt power supply and power cord

  • Technical Specifications for ServSwitch Dual-Video CATx KVM Extender with Serial and Audio, Single-Access Kit:

    Compatibility Keyboard: PS/2®, PC/AT® (with optional AC244A and FA222-R2);
    Video: VGA, Super VGA, XGA;
    Mouse: PS/2 mouse only (user)
    Resolution (Maximum) 1600 x 1200, 60 Hz at 656.1 ft. (200 m) and 1280 x 1024, 75 Hz at 984.2 ft. (300 m); higher resolutions may be possible at shorter distances
    CE Approval Yes
    Connectors Local: (2) RJ-45, (1) HD15 M, (1) DB25 F, (2) 3.5-mm audio, (1) DB9 F; Remote: (2) RJ-45, (2) HD15 F, (2) 6-pin mini DIN F, (2) 3.5-mm audio, (1) DB9 F
    Power Local: From the PC;
    Remote: 100-240 VAC, 50-60 Hz, external, autosensing, with IEC 320 connector
    Size Local unit: 1.6"H x 5.7"W x 4.3"D (4.1 x 14.5 x 10.9 cm); Remote: 1.7"H x 5.7"W x 5.5"D (4.3 x 14.5 x 14 cm)

    The Kit includes:
  • Local unit
  • Remote unit
  • Cable from CPU to local unit
  • Video input cable
  • Serial cable
  • Audio cable
  • 9-volt power supply and power cord


  • NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
