KVM > Extenders

click photo to enlarge

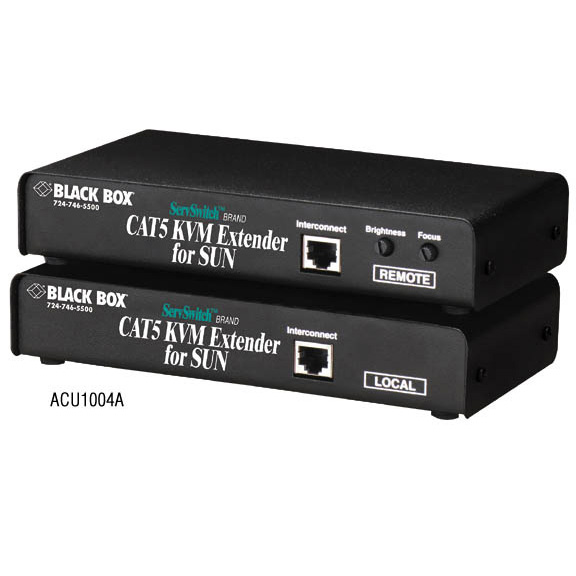

ACU1004A

Photo may show similar product

Other views

ServSwitch Brand CAT5 KVM Extenders for Sun

Here comes the Sun compatible ServSwitch—extend KVM signals up to 1000 feet!

ACU1004A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Place your keyboard, monitor, and mouse up to 1000 feet (304.8 m) from a CPU or ServSwitch.
  • Use a single CAT5 UTP cable!
  • Two kits are available.

  • Description

    ServSwitch Brand CAT5 KVM Extenders for Sun, Single-Access Kit


    Quick Facts

  • Place your keyboard, monitor, and mouse up to 1000 feet (304.8 m) from a CPU or ServSwitch.
  • Use a single CAT5 UTP cable!
  • Two kits are available.

  • Further Details

  • Rackmountable.
  • Capable of 1600 x 1280 at 200 feet (60.9 m), 1280 x 1024 at 300 feet (91.4 m), or 1024 x 768 at 1000 feet (304.8 m).
  • Fully adjustable video equalization for the best possible video quality—even at long distances and high resolutions.

    ServSwitch™ Brand CAT5 KVM Extenders for Sun make it easy to put your CPUs and ServSwitch KVM switches where you want them. Because these extenders use flexible, inexpensive CAT5 UTP cable, cabling is easy. You may even be able to use the cable already installed in your building!

    The point-to-point extenders feature intelligent keyboard and mouse emulation, so your remote CPUs are in no danger of locking up, even if your keyboard or interconnect cable is unplugged.

    The extenders also feature built-in surge protection to defend your CAT5 link side against surges and spikes.

    Single-Access Kit (ACU1004A)
    Use this kit to put a single Sun control station up to 1000 feet (304.8 m) from a CPU or ServSwitch.

    Dual-Access Kit (ACU1005A)
    Place a local Sun control station near your CPU or ServSwitch and a remote station up to 1000 feet (304.8 m) away.

    What’s included:
    • Local unit
    • Remote unit
    • Power supply with output cord
    • Power supply input cord
    • VGA extension cable
    • Sun keyboard and mouse extension cable
    • User’s manual

  • Technical Specifications for ServSwitch Brand CAT5 KVM Extenders for Sun:

    Clamping Voltage — 15 volts
    Compatibility — Keyboard and mouse: Sun®;
    Video: VGA, Super VGA, XGA
    Resolution (Maximum) — 1600 x 1280: 200 ft. (60.9 m);
    1280 x 1024: 300 ft. (91.4 m);
    1024 x 768: 1000 ft. (304.8 m)
    CE Approval — Yes
    Connectors — Local unit: Interconnect: (1) RJ-45; Video: Single-Access Kit: (1) HD15 M; Dual-Access Kit: (1) HD15 F;
    Remote unit: Interconnect: (1) RJ-45; Video: (1) HD15 F; Keyboard and mouse: (1) 8-pin mini DIN F; Power: (1) 2.5-mm barrel jack
    Power — Local unit: From the PC;
    Remote unit: 100–240 VAC, 50–60 Hz, external, autosensing, with IEC connector
    Size — 1.4"H x 7.8"W x 3.9"D (3.6 x 19.8 x 9.9 cm)
    Weight — 5.5 lb. (2.5 kg)
    NOTE: These products are designed for CAT5 cable only.

    These products work with:
    • CAT5 100-MHz Solid-Conductor Bulk Cable, 4-Pair (EYN840A, EYN860A)
    • CAT5 100-MHz Solid-Conductor Cable, 4-Pair Straight-Pinned (EYN737MS)
    • CAT5 Modular Plugs (25/Bag), Solid-Conductor, Unshielded (FM732)
    • 19" Rackmount Kit for ServSwitch Brand CAT5 KVM Extenders (RMK19U-R2)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for ServSwitch Brand CAT5 KVM Extenders for Sun:

    Manuals

    • ServSwitch Brand CAT5 KVM Extender
      Installation and User Guide (11/9/2012)

    Product Data Sheets

    Software

    • ServSwitch Brand KVM Extender Software


    Connect your ServSwitch Brand CAT5 KVM Extenders for Sun with:

    Accessory: ACU1009A

    ServSwitch Brand CAT5 KVM Extenders, Dual-Access Kit

    ServSwitch Brand CAT5 KVM Extenders, Dual-Access Kit

    Accessory: ACS251A-R2

    ServSwitch Brand Fiber KVM Extender, II-SM (Single-Mode)

    ServSwitch Brand Fiber KVM Extender, II-SM (Single-Mode)

    Accessory: ACU2001A

    ServSwitch Brand Single-Video CATx KVM Extenders

    ServSwitch Brand Single-Video CATx KVM Extenders, Single-Access Kit

    Accessory: ACU1006RA

    Rackmount ServSwitch Brand CAT5 KVM Extender Hubs

    Rackmount ServSwitch Brand CAT5 KVM Extender Hubs, 6-Port Standard
