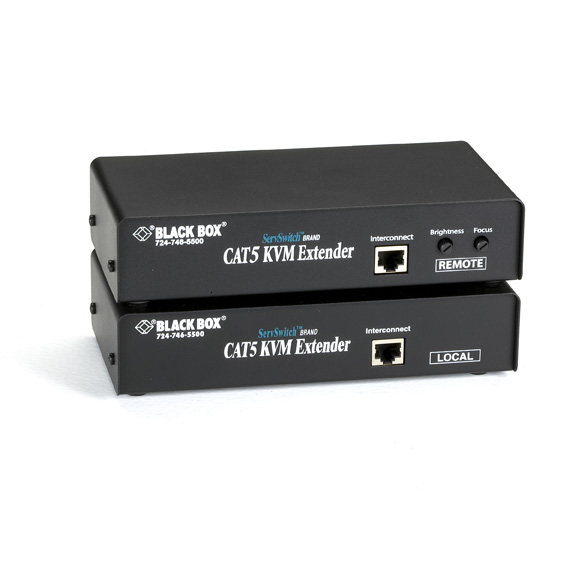

ACU1028A

Photo may show similar product

Other views

ServSwitch CAT5 KVM Extender with Serial Extension and Stereo Audio Support, Dual-Access Kit

Trade show professionals and retailers take note: This extender is great for touch screens.

ACU1028A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Place your keyboard, monitor, and mouse up to 1000 feet (304.8 m) from a CPU or ServSwitch.
  • You also can send serial port data up to 1000 feet (304.8 m).
  • Compatible with printers, touch screens, and more.

  • Description

    ServSwitch CAT5 KVM Extender with Serial Extension and Stereo Audio Support, Dual-Access Kit


    Quick Facts

  • Place your keyboard, monitor, and mouse up to 1000 feet (304.8 m) from a CPU or ServSwitch.
  • You also can send serial port data up to 1000 feet (304.8 m).
  • Compatible with printers, touch screens, and more.

  • Further Details

  • To convert your USB-style keyboard and mouse signal to PS/2, order the USB to PS/2 Converter (KVUSB).
  • Rackmountable.
  • Fully adjustable video equalization.
  • Surge protection defends CAT5 side against spikes and surges!
  • Listen to near-digital-quality audio from the CPU via speakers attached to both the local and the remote unit.
  • Single-access model is also available.

  • This ServSwitch™ CAT5 KVM Extender with Serial Extension and Stereo Audio Support enables you to place your VGA monitor, keyboard, mouse, and a serial device (like a modem, printer, or touch screen) as far as 1000 feet (304.8 m) from a CPU. Plus, it enables you to place audio devices such as speakers, microphones, and headphones up to 1000 feet from the CPU.

    The extender comes in a kit that includes local and remote units, which are connected with a single CAT5 cable. All keyboard, mouse, video, serial, and audio signals are fully buffered to ensure consistent remote operation of your PC.

    With this dual-access model, you can attach an additional monitor, keyboard, and mouse to the local unit.

    The PC can then be operated from either the local or remote user station. These stations share access on a “first-come, first-served” basis.

    Setup is simple. Connect the local and remote units to each other and your equipment. Then adjust your video compensation. That's it! The extender is easy to operate and requires no software.

    Because the extender performs complete PS/2® keyboard and mouse emulation, you can boot the PC without having a keyboard or mouse attached to it.

    The extender features fully adjustable video equalization to compensate for the loss of image quality caused by the signal passing through long cable runs.

    The extender is compatible with Microsoft® IntelliMouse® and other wheel mice. You can even use a standard PS/2 mouse at one user station and an IntelliMouse at the other.

    This product works with:
  • CAT5 100-MHz Solid-Conductor Bulk Cable, 4-Pair (EYN840A, EYN860A)
  • 19" Rackmount Kit for ServSwitch CAT5 KVM Extenders (RMK19U-R2)
  • CAT5 Modular Plugs (25/Bag), Solid-Conductor, Unshielded (FM732)

    Questions? Contact our FREE Tech Support.

  • Technical Specifications for ServSwitch CAT5 KVM Extender with Serial Extension and Stereo Audio Support, Dual-Access Kit:

    Clamping Voltage 15 volts
    Compatibility Keyboard: PC/AT®, PS/2®;
    Video: VGA, Super VGA, XGA®;
    Mouse: PS/2 mouse only (user)
    Resolution (Maximum) 1600 x 1280: 200 ft. (60.9 m);
    1280 x 1024: 300 ft. (91.4 m);
    1024 x 768: 1000 ft. (304.8 m)
    CE Approval Yes
    Connectors Keyboard and mouse: (2) 6-pin mini DIN F;
    Video: HD15;
    Interconnect: (1) RJ-45;
    Serial extension: (1) DB9;
    Audio: (1) 3.5-mm barrel jack
    Power Local unit: From the PC;
    Remote unit: 100-240 VAC, 50-60 Hz, external, autosensing, with IEC 320 connector
    Size 1.4"H x 7.8"W x 3.9"D (3.6 x 19.8 x 9.9 cm)
    Weight 1.1 lb. (0.5 kg)

    This product works with:
  • CAT5 100-MHz Solid-Conductor Bulk Cable, 4-Pair (EYN840A, EYN860A)
  • 19" Rackmount Kit for ServSwitch CAT5 KVM Extenders (RMK19U-R2)
  • CAT5 Modular Plugs (25/Bag), Solid-Conductor, Unshielded (FM732)

    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
