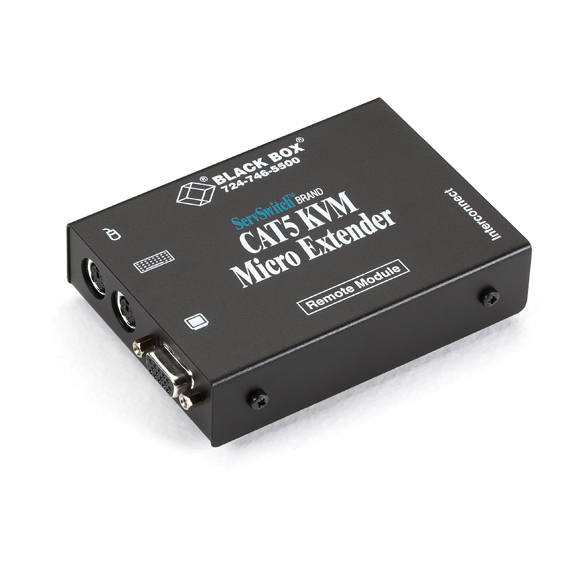

ServSwitch CAT5 KVM Extender Standalone Remote Unit, Micro, 150-ft. Maximum Distance

Compact remote units for Rackmount ServSwitch CAT5 KVM Extender Hubs.

ACUMREM

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • The Standard Standalone Remote Unit (ACUREM) provides up to 1000 feet of distance when used with Rackmount ServSwitch CAT5 Extender Hubs.

  • Description

    ServSwitch CAT5 KVM Extender Standalone Remote Unit, Micro, 150-ft. Maximum Distance


    Quick Facts

  • The Standard Standalone Remote Unit (ACUREM) provides up to 1000 feet of distance when used with Rackmount ServSwitch CAT5 Extender Hubs.

  • Further Details

  • The Standalone Remote Unit with Integrated KVM Switch (ACUREMSW) adds switching to your ACU1006RA and ACU1012RA hubs. It also provides up to 1000 feet of distance.
  • Choose the Micro Standalone Remote Unit (ACUMREM) for limited distances of up to 150 feet.
  • Work with our Rackmount ServSwitch CAT5 KVM Extender Hubs.
  • Put your keyboard, monitor, and mouse up to 1000 feet (304.8 m) from a CPU or ServSwitch. Or, if you need extensions over a shorter distance (up to 150 feet [45.7 m]), choose our Micro Standalone Remote Unit (ACUMREM).
  • To add switching capabilities at a remote station, order the ACUREMSW remote unit.
  • Use inexpensive CAT5 UTP cable.
  • Built-in surge protection.
  • Fully adjustable video equalization for the best possible video quality.
  • To convert your USB-style keyboard and mouse signals to PS/2, order the USB to PS/2 Converter (KVUSB).
  • Add CATx KVM extension with a CATx KVM Extender Single-Video Remote Unit (ACUR001A).


  • ACUREM and ACUREMSW remote units are capable of resolutions of 1600 x 1280 at 200 feet (60.9 m), 1280 x 1024 at 300 feet (91.4 m), or 1024 x 768 at 1000 feet (304.8 m).

    Order a Standard Standalone Remote Unit (ACUREM) for each active port on ACU1006RA, ACU1012RA, and ACU1006DRA hubs.

    With the Standalone Remote Unit with Integrated KVM Switch (ACUREMSW), you can add switching capabilities to your ACU1006RA and ACU1012RA hubs. It enables the remote station to switch between the local CPU and remote CPU with a simple keyboard code.

    Or if you only need to extend distance up to 150 feet (45.7 m), then our Micro Standalone Remote Unit (ACUMREM) is for you.

    NOTE: Three remote options to choose from.

    These products work with:
  • Rackmount ServSwitch CAT5 KVM Extender Hubs (ACU1006RA, ACU1012RA, ACU1006DRA)
  • USB to PS/2 Converter (KVUSB)
  • CATx KVM Extender Single-Video Remote Unit (ACUR001A)
  • CAT5 100-MHz Solid-Conductor Bulk Cable, 4-Pair (EYN840A, EYN860A)
  • CAT5 100-MHz Solid-Conductor Cable, 4-Pair, Straight-Pinned (EYN556MS, EYN550MS, etc.)
  • Questions? Contact our FREE Tech Support.


    Technical Specifications for ServSwitch CAT5 KVM Extender Standalone Remote Unit, Micro, 150-ft. Maximum Distance:

    Clamping Voltage Up to 15 volts
    Compatibility Keyboard: PC/AT®, PS/2®;
    Monitor: VGA, Super VGA, XGA®;
    Mouse: PS/2 mouse only (user)
    Resolution ACUREM, ACUREMSW: 1600 x 1280: 200 ft. (60.9 m) maximum; 1280 x 1024: 300 ft. (91.4 m) maximum; 1024 x 768: 1000 ft. (304.8 m) maximum;
    ACUMREM: 1280 x 1024: 150 ft. (45.7 m) maximum
    Connectors ACUREM, ACUMREM: Interconnect: (1) RJ-45; Keyboard and mouse: (2) 6-pin mini DIN F; Monitor: (1) HD15 F;
    ACUREMSW: Interconnect: (1) RJ-45; Keyboard and mouse: (2) 6-pin mini DIN F; Remote CPU: (1) DB25 F
    Power From the interface
    Dimensions ACUREM, ACUREMSW: 1.4"H x 7"W x 3.9"D (3.6 x 17.8 x 9.9 cm);
    ACUMREM: 1.5"H x 3.1"W x 4.3"D (3.8 x 7.9 x 10.9 cm)

    These products work with:
  • Rackmount ServSwitch CAT5 KVM Extender Hubs (ACU1006RA, ACU1012RA, ACU1006DRA)
  • USB to PS/2 Converter (KVUSB)
  • CATx KVM Extender Single-Video Remote Unit (ACUR001A)
  • CAT5 100-MHz Solid-Conductor Bulk Cable, 4-Pair (EYN840A, EYN860A)
  • CAT5 100-MHz Solid-Conductor Cable, 4-Pair, Straight-Pinned (EYN556MS, EYN550MS, etc.)
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for ServSwitch CAT5 KVM Extender Standalone Remote Unit, Micro, 150-ft. Maximum Distance:

    Manuals

    • ServSwitch Brand CAT5 KVM Extender
      Installation and User Guide (Nov-09)
