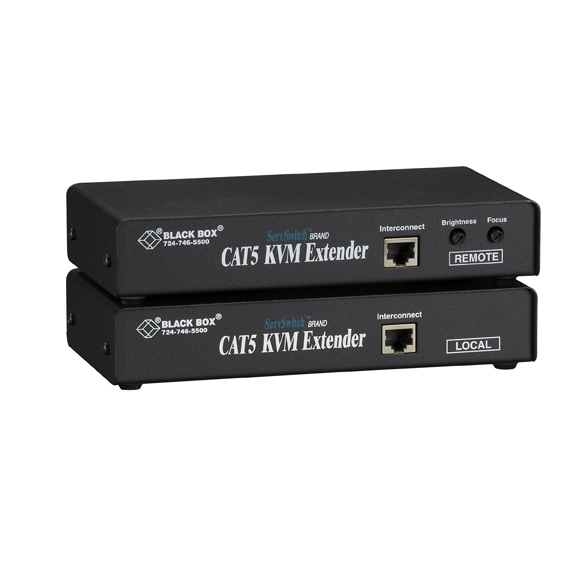

ACU1001A

Photo may show similar product

Other views

ServSwitch CAT5 KVM Extender, Single-Access Kit

Send one high-quality video channel to a remote site over CAT5 cable.

ACU1001A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Place your keyboard, monitor, and mouse up to 1000 feet (304.8 m) from a CPU or ServSwitch.
  • Use a single inexpensive CAT5 UTP cable!

  • Description

    ServSwitch CAT5 KVM Extender, Single-Access Kit


    Quick Facts

  • Place your keyboard, monitor, and mouse up to 1000 feet (304.8 m) from a CPU or ServSwitch.
  • Use a single inexpensive CAT5 UTP cable!

  • Further Details

  • Capable of 1600 x 1280 at 200 feet (60.9 m), 1280 x 1024 at 300 feet (91.4 m), or 1024 x 768 at 1000 feet (304.8 m).
  • Fully adjustable video equalization for the best possible video quality—even at long distances and high resolutions.

    ServSwitch™ CAT5 KVM Extenders make it easy to put your CPUs and ServSwitch KVM switches where you want them. Because these extenders use flexible, inexpensive CAT5 UTP cable, cabling is easy.

    The extenders have intelligent keyboard and mouse emulation to prevent remote CPUs from locking up, even if your keyboard or interconnect cable is unplugged.

    This kit enables you to put one control station up to 1000 feet (304.8 m) from a CPU or a ServSwitch.

    Also available in a dual-access kit, and in single- and dual-access kits with serial connections.

    What's included:
  • Local unit
  • Remote unit
  • Cable from CPU to local unit
  • 9-volt power supply and power cord

  • Technical Specifications for ServSwitch CAT5 KVM Extender, Single-Access Kit:

    Clamping Voltage 15 volts
    Compatibility Keyboard: PC/AT, PS/2;
    Video: VGA, Super VGA, XGA®;
    Mouse: PS/2 mouse only (user)
    Resolution (Maximum) 1600 x 1280: 200 ft. (60.9 m);
    1280 x 1024: 300 ft. (91.4 m);
    1024 x 768: 1000 ft. (304.8 m)
    CE Approval Yes
    Connectors Keyboard and mouse: (2) 6-pin mini DIN F;
    Video: (1) HD15;
    Interconnect: (1) RJ-45;
    Serial local and remote units: Also have (1) DB9 for serial extension
    Power Local units: From the PC;
    Remote units: 100–240 VAC, 50–60 Hz, external, autosensing, with IEC 320 connector
    Size 1.4"H x 7.8"W x 3.9"D (3.6 x 19.8 x 9.9 cm)
    Weight 5.5 lb. (2.5 kg)

    NOTE: These products are designed for CAT5 cable only. They support PS/2® and AT® keyboards and mice. For adapters, see the FA212-R2.

    These products work with:
    • CAT5 100-MHz Solid-Conductor Bulk Cable, 4-Pair (EYN840A, EYN860A)
    • CAT5 100-MHz Solid-Conductor Cable, 4-Pair, Straight-Pinned (EYN556MS, EYN737MS)
    • CAT5 Modular Plugs (25/Bag), Solid-Conductor, Unshielded (FMTP5U-SLD)
    • 6-Pin Mini DIN Female to 5-Pin DIN Male Keyboard Adapter (FA212-R2)
    • AT→PS/2 Mouse GHOST Emulator (AC244A)
    • 19“ Rackmount Kit for ServSwitch CAT5 KVM Extenders (RMK19X or RMK19U-R2)
    • USB to PS/2 Converter (KVUSB)

    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
