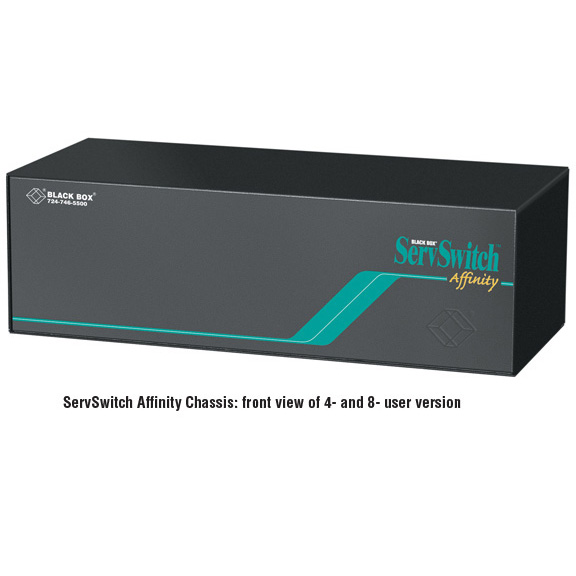

KV130A

Photo may show similar product

Other views

ServSwitch Affinity KVM Switch, 4-User Architecture

Access to up to 1000 CPUs for you and up to 15 of your staff members.

KV130A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • New cable supports USB keyboards and mice.
  • Up to 4 users can access up to 16 CPUs with just a single chassis!


  • Description

    ServSwitch Affinity, 4-User Architecture


    Quick Facts

  • New cable supports USB keyboards and mice.
  • Up to 4 users can access up to 16 CPUs with just a single chassis!

  • Further Details

  • Up to 16 users can access up to 1000 CPUs in a system simultaneously.
  • Programmable security keeps your servers safe from unauthorized users.
  • Dedicated expansion port enables you to connect up to 1000 CPUs!
  • Equip it with RJ-45 coax, DB15, or HD15 expansion cards and cables.
  • Modular design—start with an empty chassis and build your own configuration with plug-in cards! Also provides simplified setup in larger configurations.
  • Models available with redundant power supplies.
  • Supports PC, Sun, and PC UNIX CPUs.
  • Features serial emulation.


  • With the ServSwitch Affinity™, you can access up to 1000 computers from up to 16 keyboards, monitors, and mice. Plus, the ServSwitch Affinity reduces clutter, frees up space—and it lowers your equipment and power costs!

    Go with a blueprint or design your own.
    Your ServSwitch Affinity options are limited only by your application needs! Choose our preconfigured models for either 2 users and 8 CPUs (KV132A-R2) or for 4 users and 16 CPUs (KV134A-R2). Or start with an empty expansion chassis (KV130A, KV130DA, KV138A, KV138DA, KV139A, or KV139DA) and add plug-in cards to create an Affinity configuration that suits your application perfectly! Each chassis supports up to 4 users and 16 CPUs. Use the expansion cables to cascade multiple chassis and attach up to 4, 8, or 16 users and 1000 CPUs!

    It’s easy to use.
    The multiplatform ServSwitch Affinity is easy to operate. Connect your PC, Sun®, or PC UNIX® CPUs and keyboards, monitors, and mice using the cables below. You can even connect your USB keyboards and mice. Then access the on-screen menu, configure and save your settings, and you’re ready to go!

    The Affinity features a configuration password as well as user login passwords.
    Access your CPUs in one of four ways:
    • In view mode, a control station’s monitor reflects a selected CPU’s activity, but the keyboard and mouse are disabled and no changes can be made.
    • In share mode, the control stations gain access to CPUs on a first-come, first-served basis. A control station releases control of a CPU for use by the other station(s) after a time-out period.
    • In control mode, one control station can take exclusive control of a CPU. Other stations can access the CPU but cannot control it in any way.
    • In private mode, one control station has exclusive access and control over a CPU.

    Amazing on-screen technology:


    Technical Specifications for ServSwitch Affinity KVM Switch, 4-User Architecture:

    Construction Steel chassis
    CPUs Supported IBM® PC and compatibles, PS/2®, Sun®, and most PC UNIX® (RS/6000™, HP9000™, SGI, DEC™ Alpha, and others); daisychainable to connect up to 1000 CPUs
    Distance (Maximum) Chassis to CPU and chassis to keyboard/monitor/mouse: 100 ft. (30.4 m)

    Mice Supported
    User: PS/2 or Sun;
    CPU: Serial or PS/2, Sun Microsystems® and compatibles
    Resolution (Maximum) 1280 x 1024
    CE Approval Yes
    Connectors All chassis: (1) IEC 320 power;
    KV1307C: (10) RJ-45 F;
    KV140 series cables: (1) DB15 F, (1) DB15 M;
    KV180 series cables: (1) HD15 M, (1) HD15 F;
    KV130 series cable: (2) RJ-45 M;
    Indicators Backlit power switch
    Power 90–264 VAC, 47–63 Hz, 40 watts, autoswitching
    These products work with:
    • ServSwitch Affinity Cards (KV1300C)
    • ServSwitch Affinity Terminator Card (KV1304C)
    • ServSwitch Affinity Expansion Cards (KV1305C)
    • USB to PS/2 Flash User Cables (EHNUSB)
    • ServSwitch Affinity Expansion Cables, RJ-45 (KV130002, etc.)
    • ServSwitch Remote Single-User (ACR9005A)
