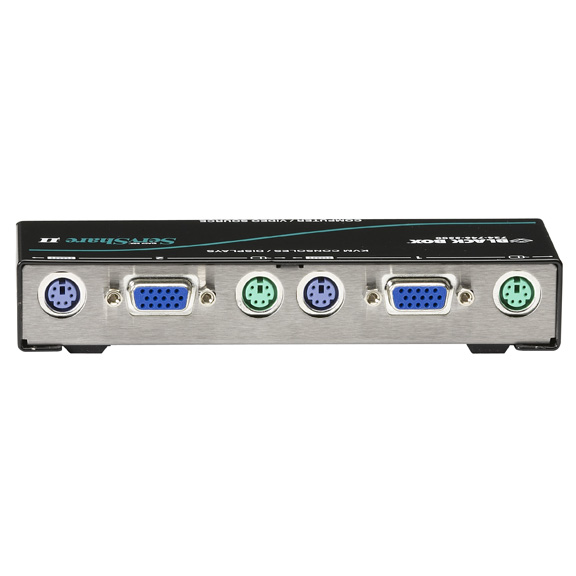

KV221A

Photo may show similar product

Other views

ServShare II, 2-Port

The flexible solution for resource sharing.

KV221A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Flexible operation! Use as a video splitter to four video displays or use it to enable two users to share a KVM switch.
  • Up to four users can share computer resources.

  • Description

    ServShare II, 2-Port


    Quick Facts

  • Flexible operation! Use as a video splitter to four video displays or use it to enable two users to share a KVM switch.
  • Up to four users can share computer resources.

  • Further Details

  • When used with other ServShare II units and KVM switches, it enables many users to connect to several different systems.
  • Transparently supports extra keys on "Internet-style" keyboards.
  • Flash upgradable for future compatibility.
  • Compatible with PS/2® or USB CPUs. Just choose the cable you need.
  • 4-Port also available.
  • Includes an external power supply.
  • Supports resolutions up to 1900 x 1440 for super-crisp images.

    ServShare™ II is the flexible solution for enabling two or four users to share computer resources. Depending on how you connect it, you can use ServShare II as a video splitter to up to four video displays, or four users can access a KVM switch. At its most flexible, ServShare II—used with other ServShare II units and ServSwitch™ models—enables many users to connect with several different systems.

    ServShare II supports resolutions up to 1600 x 1280 on longer cable lengths and higher resolutions of up to 1900 x 1440 with shorter links. For cable runs up to 98.4 feet (30 m), ServShare II features high-quality powered circuitry to prevent signal degradation and keep picture quality crisp. This video booster feature ensures that picture quality remains sharp over longer distances.

    ServShare II also has an external power supply for connections beyond 6.5 feet (2 m). When the switch is used with the external power supply, you can use relatively long cable links between ServShare II, user consoles, your system's shared resources, and other KVM switches.

  • Technical Specifications for ServShare II, 2-Port:

    Approvals CE
    Operating Environment Temperature: 32 to 104° F (0 to 40° C);
    Humidity: 5 to 85% noncondensing
    Connectors CPU: (1) HD15 F, (2) 6-pin mini DIN; User: (2) HD15 F, (4) 6-pin mini DIN; Power: (1) 2.5-mm barrel
    Power For connections up to 6.5 ft. (2 m): 115 VAC, 60 Hz, internal;
    For connections beyond 6.5 ft. (2 m): 115 VAC, 60 Hz, external (included)
    Dimensions 1.2"H x 5.8"W x 2.8"D (3 x 14.7 x 7.1 cm)
    Weight 1.1 lb. (0.5 kg)

    This product works with:
    • Premium Coax ServSwitch CPU Cables (EHN408)
    • Premium Coax ServSwitch Control (User) Cables (EHN409)
    • PS/2 to USB Flash Cables (EHN428)
    • ServSwitch Keyboard and Mouse Adapters (FA222)
    Questions? Contact Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for ServShare II, 2-Port:
