KVM > Specialty

click photo to enlarge

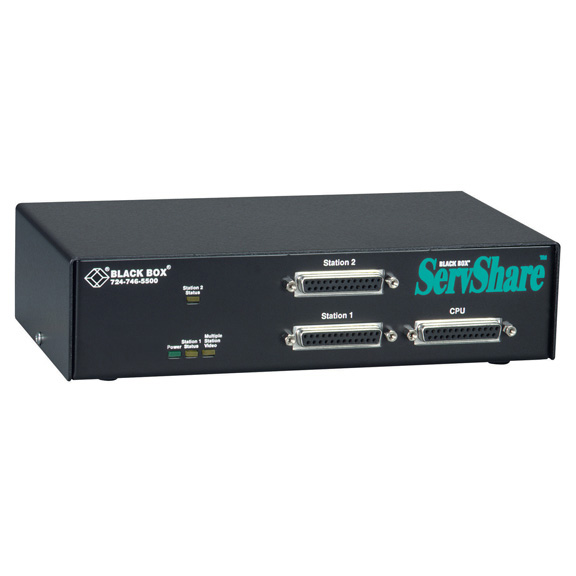

KV752A

Photo may show similar product

Other views

ServSwitch ServShare, 2-Port

Access a single CPU or ServSwitch from up to two workstations.

KV752A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • PS/2® and AT® compatibility in the same box!
  • Share one CPU with two sets of keyboards, monitors, and mice.
  • Works with many ServSwitch products—add multiple access points to your applications!

  • Description

    ServSwitch ServShare, 2-Port


    Quick Facts

  • PS/2® and AT® compatibility in the same box!
  • Share one CPU with two sets of keyboards, monitors, and mice.
  • Works with many ServSwitch products—add multiple access points to your applications!

  • Further Details

  • You control the security with different levels of privacy for each attached KVM station!
  • Supports distances up to 100 feet.
  • 4-port model also available.

  • Turn a ServSwitch™ inside out and what do you have? You have the flexibility to access a CPU from different points in your office. You have the ability to connect multiple workstations to a single CPU. You have the ServSwitch ServShare™ from Black Box!

    With the 2-port model, two sets of keyboards, monitors, and mice can share one CPU. The 4-port ServShare gives up to four workstations access to a single CPU. And both models are compatible with many other ServSwitch devices, so you can add multiple points of access to those applications. (To confirm compatibility, contact our FREE Tech Support.)

    The ServShare’s keyboard time-out feature is programmable, and you get one-touch keyboard activation from any of the attached stations. Need to increase the access restrictions on a station that’s exposed to a lot of foot traffic? No problem! The ServShare enables you to vary the levels of security you program for each of the access points!

    So whether you want to share an expensive graphics workstation among several users or access your file server from several locations, the ServShare will increase your flexibility and save you money.

    This product works with:
    • Standard CPU/Server to ServSwitch Cables, for PS/2 (EHN151)
    • Coax CPU/Server to ServSwitch Cables, for PS/2 and AT (EHN282, EHN382)
    • Standard ServSwitch to Keyboard/Monitor/Mouse Cables, for PS/2 (EHN154)
    • Coax ServSwitch to Keyboard/Monitor/Mouse Cables, for PS/2 (EHN283, EHN383)
    • Station Extender Kits

    Questions? Contact our FREE Tech Support.


    Technical Specifications for ServSwitch ServShare, 2-Port:

    Distance (Maximum) — 100 ft. (30.4 m)
    Resolution (Maximum) — 1280 x 1024 non-interlaced
    Supported Keyboard Modes — 1, 2, or 3
    CE Approval — 230-VAC versions: KV752AE, KV754AE
    Connectors — (3) DB25 F
    Indicators — Front-panel LEDs: (1) Power, (2) Station Status, (1) Multiple Station Video
    Power — 110-VAC transformer included (230-VAC version on request)
    Size — 2.1"H x 8.9"W x 4.9"D (5.3 x 22.6 x 12.4 cm)
    Weight — 7 lb. (3.3 kg)
    This product works with:
    • Standard CPU/Server to ServSwitch Cables, for PS/2 (EHN151)
    • Coax CPU/Server to ServSwitch Cables, for PS/2 and AT (EHN282, EHN382)
    • Standard ServSwitch to Keyboard/Monitor/Mouse Cables, for PS/2 (EHN154)
    • Coax ServSwitch to Keyboard/Monitor/Mouse Cables, for PS/2 (EHN283, EHN383)
    • Station Extender Kits

    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for ServSwitch ServShare, 2-Port:

    Product Data Sheets


    Connect your ServSwitch ServShare, 2-Port with:

    Accessory: EHN383-0035

    ServSwitch to Keyboard/Monitor/Mouse Cable, PS/2 Coax, 35-ft. (10.6-m)

    ServSwitch to Keyboard/Monitor/Mouse Cable, PS/2 Coax, 35-ft. (10.6-m)

    Accessory: RMK19S

    ServSwitch (R3 Version) and ServSwitch Ultra (R2 Version) Rackmount Kits , Slim

    Rackmount Kit for ServSwitch R3 & ServSwitch Ultra Versions, 19" Rack, Slim

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A One year warranty is included.

    Extended Two years for one Warranty Available


    Protect your purchase with an additional Two years for oneDouble Diamond™ warranty!
    Cost: $50.50

    Extended Three years for two Warranty Available


    Protect your purchase with an additional Three years for twoDouble Diamond™ warranty!
    Cost: $100.99

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    The most complete product warranty exclusively from Black Box

    The Double Diamond™ Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most products come with a one- or two-year warranty. Some products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life! Standard Warranty features are as follows:

    Worry-Free Purchases

    If your new Black Box® brand products are accidentally damaged, you're covered with this no-questions asked warranty. FREE

    Coverage

    Double Diamond™ is the standard warranty that comes with your new Black Box® brand product. Most products come with a one- or two-year warranty.

    Lifetime Guarantees

    Many products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life.

    Fast Service

    During the warranty period, Black Box® Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Extra Coverage

    Extend your warranty or protect a previously purchased Black Box® brand product* for an additional year for only 10% of the current retail price! And when you do, we give you the second year of extended coverage free! FREE Tech Support Hotline. No cost. No contracts. No kidding!

    No-Risk 45-Day Return Policy

    If it's not right, send it back.
    (Excludes custom built products)

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! Forget It.
    Tech Support Hotline 100% FREE! $$$
    Product SKU Price Quantity
    ServSwitch ServShare, 2-Port KV752A $504.95

    ServSwitch ServShare, 4-Port KV754A $986.95
