KVM > IP Enabled

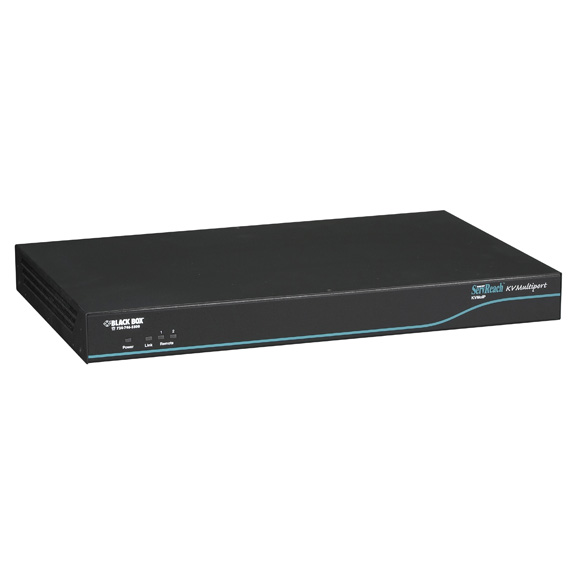

click photo to enlarge

KVIP2016A

Photo may show similar product

Other views

  • KVIP2016A
  • KVIP2016A

ServReach™ KVMultiport KVMoIP, 2 x 16

Two IP users can remotely manage up to 16 servers.

KVIP2016A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Enables one local and two remote users to have access to and control of up to 16 servers.
  • BIOS-level control of USB or PS/2® servers over IP.
  • Space-saving unit is 1U, rackmountable.


    • Description

    ServReach™ KVMultiport KVMoIP, 2 x 16


    Quick Facts

  • Enables one local and two remote users to have access to and control of up to 16 servers.
  • BIOS-level control of USB or PS/2® servers over IP.
  • Space-saving unit is 1U, rackmountable.

    • Further Details

  • Can be managed with the KVManager (KVMGR-32, etc.) or work as a standalone KVM-over-IP switch.
  • Access your target servers through the Internet, a LAN, a modem, or a local KVM station.
  • Place servers up to 100 feet (30 m) from the switch.
  • Standard 128-bit SSL security.
  • No software to install—you only need a browser running Internet Explorer 6.0 or higher.
  • Cut costs associated with downtime and service calls.
  • Cost-effective and scalable.

    KVM switching over an IP network for up to three users at the same time.
     ServReach™ KVMultiport KVMoIP, 2 x 16, extends your keyboard, mouse, and video monitor signals over an IP network to provide full access to as many as 16 target servers. It enables one local user and two remote users simultaneously to troubleshoot, manage, configure, and reboot remote servers from almost any location where you have a computer and access to the network. It's a great way to increase productivity while reducing the significant costs of network service calls.

    This rackmountable, 1U-sized switch directly connects the switch to each computer in the server room over CAT5 cable, eliminating cable clutter. Extend the distance between the switch and your servers up to 100 feet (30 m)! The unit features 128-bit encryption and can be configured with usernames and passwords to fully guard your data, making the switch and your servers virtually impenetrable to hackers and other virtual intruders. The ServReach KVMultiport also gives you the BIO-level server access needed to perform effective troubleshooting.

    It’s simple to add to your network—just place the ServReach KVMultiport on your LAN, and you’re in business. You don’t have to install proprietary software or make special modifications to your network.

    This product works with:
  • ServReach KVManager (KVMGR-32, KVMGR-64, KVMGR-512)
  • ServReach KVMGate (KVIP1000A)
  • ServReach KVMCube (KVIP1001A)
    Questions? Contact our FREE Tech Support.


    • Technical Specifications for ServReach™ KVMultiport KVMoIP, 2 x 16:

    Distance (Maximum) — To servers: 100 ft. (10 m)
    Operating Systems — Target servers: Windows® NT®, Windows 98 and higher, Novell® 3.12–6, Linux®, SUN® Solaris
    Client workstation: Windows 2000 or higher running Internet Explorer 6.0 or higher and ActiveX
    Resolution — Host: 1600 x 1200 @ 85 Hz (NOTE: Resolution on client computer should be higher than resolution on target server)
    Video and Mouse Synchronicity — Microsoft or default OS driver
    CE Approval — Yes
    Connectors — Servers: (16) RJ-45
    Video: (1) HD15 F; Keyboard and mouse: (2) USB; Ethernet: (1) RJ-45 10/100 autosensing
    Power — 100–240 VAC, 60 Hz, autosensing
    Size — 1.7"H x 17"W x 10.6"D (4.4 x 43.1 x 27 cm)
    Weight — 5.2 lb. (2.3 kg)
    This product works with:
  • ServReach KVManager (KVMGR-32, KVMGR-64, KVMGR-512)
  • ServReach KVMGate (KVIP1000A)
  • ServReach KVMCube (KVIP1001A)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
