KVM > IP Enabled

click photo to enlarge

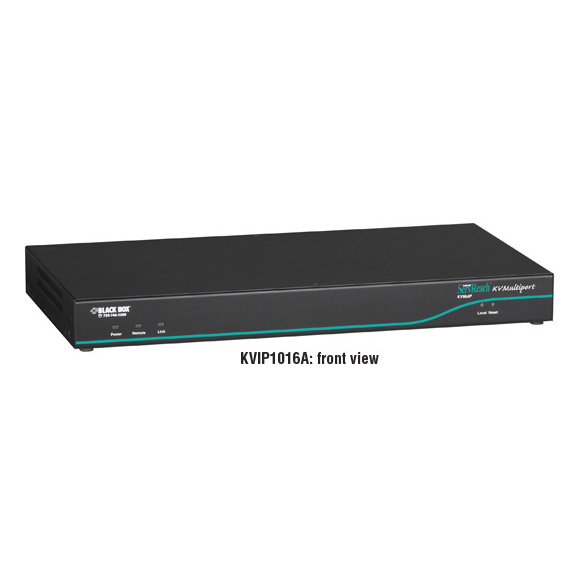

KVIP1016A

Photo may show similar product

Other views

ServReach KVMultiport KVMoIP (1 x 16), ServReach™ KVMultiport KVMoIP (1 x 16)

KVM over IP switching via LAN, WAN, or the Internet!

KVIP1016A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Get BIOS-level control of USB or PS/2 servers over IP.

  • Description

    ServReach KVMultiport KVMoIP (1 x 16)


    Quick Facts

  • Get BIOS-level control of USB or PS/2 servers over IP.

  • Further Details

  • Can be managed with the KVManager or work as a standalone KVM-over-IP switch.
  • Cost-effective and scalable.
  • Access your target servers through the Internet, a LAN, a modem, or a local KVM station.
  • Be sure to also order PS/2 Server Access Modules and/or USB Server Access Modules to enable switch-to-server communications (see “Related Products” in the previous window).
  • Place servers up to 33 feet (10 m) from the switch.
  • Standard 128-bit SSL security.
  • No software to install—you only need a browser running Internet Explorer 6.0 or higher.
  • Cut costs associated with downtime and service calls.

    KVM switching over an IP network for up to 16 servers.
    ServReach KVMultiport KVMoIP (1 x 16) extends your keyboard, mouse, and video monitor signals over an IP network to provide full access to as many as 16 target servers. This enables you and your users to troubleshoot, manage, configure, and reboot remote servers from almost any location where you have a computer and access to the network. It's a great way to increase productivity while reducing the significant costs of network and service calls.

    The unit features 128-bit encryption and can be configured with usernames and passwords to fully guard your data, making the switch and your servers virtually impenetrable to hackers and other virtual intruders. The ServReach KVMultiport also gives you the BIOS-level server access needed to perform effective troubleshooting.

    It's simple to add to your network—just place the ServReach KVMultiport on your LAN, and you're in business. You don't have to install proprietary software or make special modifications to your network.

    Need to increase your control in a more complicated system? No worries—the ServReach KVMultiport is interoperable with the ServReach KVMCube and the ServReach KVMGate (see "Related Products" on the previous screen).

    Best of all, you can manage the entire system with ServReach KVManager, an LDAP-compatible appliance that secures and coordinates access to all the target servers you and your users need to access. The KVManager is especially well-suited for applications with multiple target servers distributed over many sites.

  • Technical Specifications for ServReach KVMultiport KVMoIP (1 x 16), ServReach™ KVMultiport KVMoIP (1 x 16):

    Distance (Maximum) — To servers: 33 ft. (10 m)
    Operating Systems — Target servers: Windows NT® 4.0, Windows® 98 and higher, Novell® 3.12–6, Linux®, DOS;
    Client workstation: Windows NT 4.0, Windows 2000, XP, 2003 Server, or Vista running Internet Explorer 6.0 or 7.0
    Resolution — Host: 1600 x 1200 at 85 Hz (NOTE: Resolution on client computer should be higher than resolution on target server.)
    Video and Mouse Synchronicity — Microsoft or default OS driver
    CE Approval — Yes
    Connectors — Servers: (16) RJ-45;
    Video: (1) HD15 F;
    Keyboard and mouse: (2) 6-pin mini DIN F;
    Service: (1) RJ-11
    Power —100–240 VAC, 50–60 Hz, autosensing
    Size — 1.6"H x 16.9"W x 6.9"D (4.1 x 43.1 x 17.6 cm)
    Weight — 5.6 lb. (2.5 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for ServReach KVMultiport KVMoIP (1 x 16), ServReach™ KVMultiport KVMoIP (1 x 16):

    Manuals

    • ServReach KVMultiport KVMoIP (1 x 16) User Manual
      User Manual for the KVIP1016A (Version 2)

    Application Diagrams

    Black Box Explains


    Connect your ServReach KVMultiport KVMoIP (1 x 16), ServReach™ KVMultiport KVMoIP (1 x 16) with:

    Accessory: KV1121A

    USB Server Access Module

    USB Server Access Module (for the KV1108A, KV1116A, and KVIP1016A)

    Accessory: KV1120A

    PS/2® Server Access Module, PS/2 Server Access Module

    PS/2 Server Access Module (for the KV1108A, KV1116A, KVIP1016A)

    Accessory: KVIP1001A

    ServReach™ KVMCube KVMoIP (1 x 1)

    ServReach™ KVMCube KVMoIP (1 x 1)

    Accessory: KVMGR-32

    ServReach KVManager, 32 Devices

    ServReach KVM Manager Appliance, 32 Devices
