Datacom > Modems & CSUs

click photo to enlarge

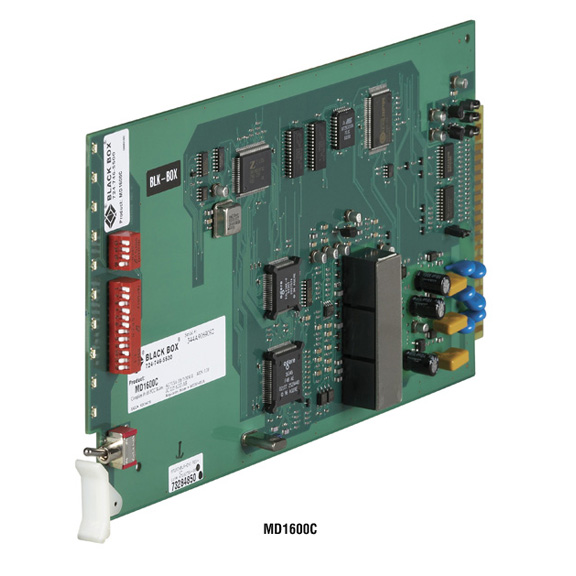

MD1600C

Photo may show similar product

Other views

Series II Rackmount Cards for the Modem Rack, V.34 Rackmount Modem Card for 2-/4-Wire

Replacement modem cards for the discontinued Modem Rack (RM1600).

MD1600C


One year Warranty

Product Highlights

  • Compatible with sync or async equipment.
  • The MD1600C supports speeds up to 33.6 kbps over dialup and 2- or 4-wire leased lines.
  • The MD1601C supports speeds up to 28.8 kbps over dialup and 2-wire leased lines.
  • Diagnostics with each modem card include monitor connect rate, error correction, and other call-status indicators.

  • Description

    Series II Rackmount Cards, V.34 Rackmount Modem Card for 2-/4-Wire


    Quick Facts

  • Compatible with sync or async equipment.
  • The MD1600C supports speeds up to 33.6 kbps over dialup and 2- or 4-wire leased lines.
  • The MD1601C supports speeds up to 28.8 kbps over dialup and 2-wire leased lines.
  • Diagnostics with each modem card include monitor connect rate, error correction, and other call-status indicators.

  • Further Details

    You have the power.
    These hot-swappable modem cards are loaded with features!

    Both cards work with dialup and 2-wire leased lines, plus they support faxing at up to 14.4 kbps.

    In addition, the MD1600C card provides Caller ID reporting and dial backup, and it supports Bell 103 and 212A standards across 4-wire leased lines. It can also store up to 30 callback numbers and support DTR and V.25 bis dialing. Use the DIP switch to configure it for optimal performance with an AS/400®.

    Virtual brainiacs.
    There’s even more to these modem cards. Both have intelligent features to make data transmission and operation smooth.

    Store up to 10 numbers on each card with the automatic dial feature. Each card also features autoanswering, speed conversion, remote configuration, autorate detection, callback security, and DTMF tone detection. Plus, flash memory enables future firmware updates, and LEDs provide simple monitoring of card status.


    Technical Specifications for Series II Rackmount Cards for the Modem Rack, V.34 Rackmount Modem Card for 2-/4-Wire:

    Compression — MNP® 5 and V.42 bis
    Error Correction — V.42
    Fax Compatibility — V.17 Group III
    Operation — MD1600C: Full-duplex over 2- or 4-wire leased lines or dialup lines;
    MD1601C: Full-duplex over 2-wire leased lines or dialup lines
    Protocol — Async or sync
    Speed (Maximum) — Line: MD1600C: 33.6 kbps; MD1601C: 28.8 kbps;
    Fax: 14.4 kbps
    Standards — ITU: V.34+;
    Bell: 212A, 103
    Connectors — RM1600: (16) RJ-11, (16) DB25 F
    Interface — RS-232
    Power — 90–245 VAC, 50–60 Hz
    Size — Full card
    These products work with:
    • RS-232 Cable, 25-Conductor, Male/Male (ECM25C)
    • Modem 3600 Standalone, AC (MD1000A-CABPAK-R2)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Series II Rackmount Cards for the Modem Rack, V.34 Rackmount Modem Card for 2-/4-Wire:


    Connect your Series II Rackmount Cards for the Modem Rack, V.34 Rackmount Modem Card for 2-/4-Wire with:

    Accessory: ECM25T-0010-MM

    Standard RS-232 Low-Noise Cable, 25 Conductors—Pins 1–25, Male/Male, 10-ft. (3.0-m)

    Standard RS-232 Low-Noise Cable, 25 Conductors—Pins 1–25, M/M, 10-ft. (3.0-m)
