Networking > Routers

click photo to enlarge

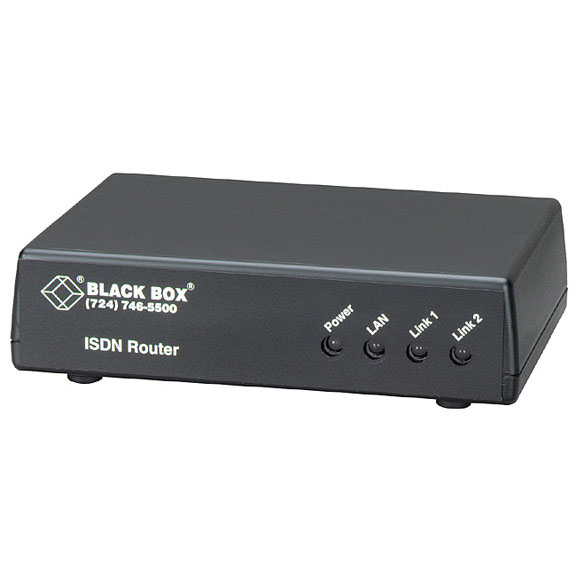

LR1560A-ST-R2

Photo may show similar product

Other views

Series 500 ISDN Router, Branch-Office, S/T Interface

Branch offices and small/home offices: We have your Net needs covered.

LR1560A-ST-R2


One year Warranty

Product Highlights

  • Connect branch or small/home offices to corporate networks or the Internet.
  • Provides everything you need for ISDN internetworking.


    • Description

    Series 500 ISDN Router, Branch-Office, S/T Interface


    Quick Facts

  • Connect branch or small/home offices to corporate networks or the Internet.
  • Provides everything you need for ISDN internetworking.

    • Further Details

    Branch-Office ISDN Routers
  • Connect up to 25 users to a central LAN or the Internet.
  • PPP and Multipoint software included for full interoperability with all ISPs.
  • Browser-based Net Wizard configuration.
  • Supports NAT and DHCP.
  • Connect up to two voice, fax, and modem devices to the voice ports.
  • Include data compression and SNMP.
  • Internet firewall protection.
  • Connect up to 10 node addresses to a central LAN or the Internet.

    Small-Office ISDN Routers:
  • Data compression boosts bandwidth up to 600%!
  • Send or receive data at rates up to 64 kbps (128 kbps with BONDING).
  • Route IP/IPX protocols and bridge all other nonroutable protocols.
  • PAP, CHAP, and XID security keep your network safe from intruders.

    Series 500 Branch-Office ISDN Routers
    With Series 500 Branch-Office ISDN Routers, you can connect up to 25 remote users to a central LAN or the Internet.

    Backed by high-speed ISDN BRI lines, these routers enable all users to send or receive data at rates up to 64 kbps (128 kbps with BONDING). You can even send or receive phone and fax calls at the same time. Just attach phone and fax lines to the voice/fax ports—the router does the rest, directing calls to the appropriate device.

    Protocol spoofing prevents excessive on-line charges by closing down ISDN connections during idle periods and re-establishing them as needed. Data compression enables you to boost bandwidth up to 600%!

    Series 500 Small-Office ISDN Routers
    Use the Small-Office ISDN Routers to connect up to 10 learned or configured users to a central LAN or the Internet. Users can remotely access and transfer files, send print jobs, and send and receive e-mail. You can change users at any time.

    One feature you’ll like is the Internet firewall protection that keeps out hackers. The firewall secures all the stations on your local network while allowing access to your Web server.

    Data compression increases the capacity of both B channels from 128 kbps up to 512 kbps. The amount of time needed to send data is less—and so are your line charges!

    You can also reduce your analog phone charges by connecting up to two analog devices, such as a fax and modem or phone, to the router’s two voice ports.

    Both routers include a 10BASE-T Ethernet LAN port and an ISDN BRI WAN module.


    • Technical Specifications for Series 500 ISDN Router, Branch-Office, S/T Interface:

    Protocols — LAN: IP, IPX™;
    WAN: PPP
    CE Approval — LR1500A-US-R3
    Interface — LAN: 10BASE-T MDI and MDI-X ports;
    WAN: ISDN BRI U or S/T
    Connectors — LAN: RJ-45;
    WAN: ISDN BRI U or S/T
    Power — 12 VDC, 1 A
    Size — 1.6"H x 6.1"W x 4.3"D (4.1 x 15.5 x 10.9 cm)

    These products work with:
    • CAT5 100-MHz Patch Cable, 4-Pair, Straight-Pinned (EVMSL05)
    Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Series 500 ISDN Router, Branch-Office, S/T Interface:


    Connect your Series 500 ISDN Router, Branch-Office, S/T Interface with:
