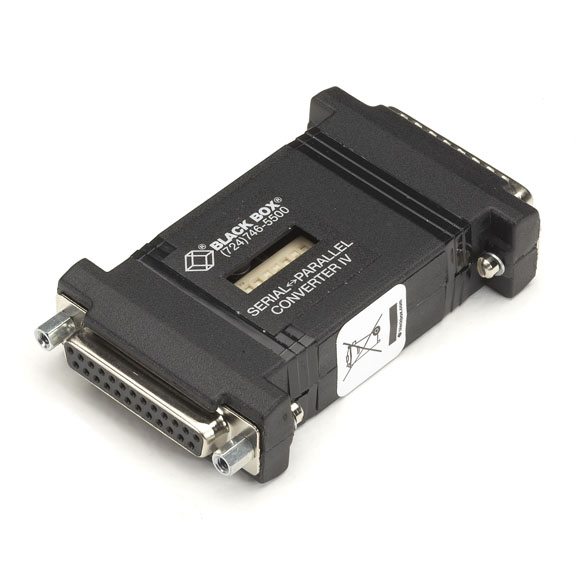

Serial to Parallel Converter IV

A simple way to convert RS-232 to parallel data and vice versa.

PI125A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Automatically converts RS-232 serial data to parallel data format and vice versa.
  • Senses and selects parallel/serial modes, plus DCE/DTE modes.
  • No AC power required.


  • Description

    Serial to Parallel Converter IV


    Quick Facts

  • Automatically converts RS-232 serial data to parallel data format and vice versa.
  • Senses and selects parallel/serial modes, plus DCE/DTE modes.
  • No AC power required.

  • Further Details

  • Serial data rates to 38.4 kbps.
  • Supports both software and hardware flow control.
  • Configure baud rate, parity, word length, and flow control easily with external DIP switches.
  • Five-state LED indicates status and diagnostics.
  • Ultra-miniature ABS plastic case.


  • Technical Specifications for Serial to Parallel Converter IV:

    Data Format 7 or 8 bits; 1 or 2 stop bits; even, odd, or no parity
    Data Rates 300, 600, 1200, 2400, 4800, 9600, 19,200, 38,400 bps
    Interface EIA RS-232 async serial (autosensing DTE/DCE) and IBM® PC parallel
    Connectors (1) DB25 M, (1) DB25 F
    Power From the RS-232 interface
    Size 3.4"H x 1.3"W x 0.8"D (8.7 x 3.3 x 2 cm)
    Weight 0.1 lb. (0.5 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Serial to Parallel Converter IV:


    Connect your Serial to Parallel Converter IV with:
