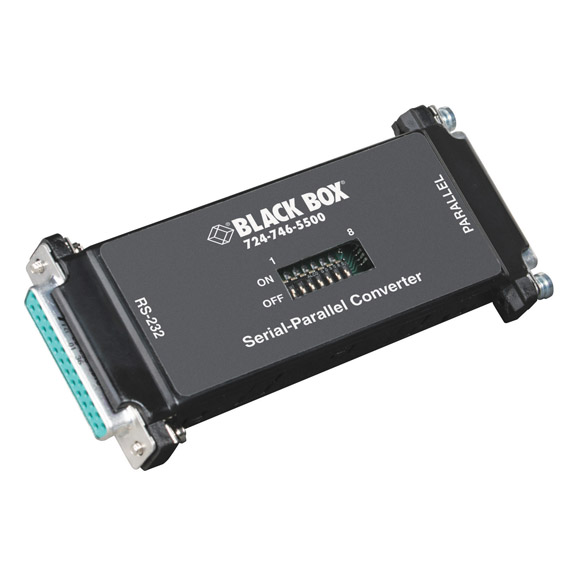

Serial to Parallel Converter IV

The serial/parallel converter for 25 MHz—and higher—machines.

PI1115A-US

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Converts serial to parallel or parallel to serial.
  • Automatically selects parallel-to-serial and serial-to-parallel operation and DCE/DTE modes.


  • Description

    Serial to Parallel Converter IV


    Quick Facts

  • Converts serial to parallel or parallel to serial.
  • Automatically selects parallel-to-serial and serial-to-parallel operation and DCE/DTE modes.

  • Further Details

  • Supports software and hardware flow control.
  • Compatible with all popular printers and computers.
  • Has a power supply for low-power interfaces.
  • Just flip switches to choose word structure and speed.
  • Has serial data rates up to 115.2 kbps.


  • Technical Specifications for Serial to Parallel Converter IV:

    Buffer 96 Bytes
    Data Format 7 data bits, even or odd parity;
    8 data bits, no parity; 1 stop bit
    Diagnostics Self test
    Flow Control Serial: Hardware handshaking DTR Software X-ON/X-OFF;
    Parallel: Hardware (Busy, Acknowledge)
    Speed (Maximum) 115.2 kbps
    CE Approval Yes
    Interface Asynchronous RS-232 serial and parallel DB25
    Connectors (2) DB25 F
    Power From the interface or DTR and RTS or optional power supply
    Size 4.3"H x 1.7"W x 0.8"D (10.9 x 6.7 x 2 cm)
    Weight 1 lb. (0.5 kg)
    This product works with:
    • Premium PC/AT Modem Cables (EVMBMC)
    • Parallel Printer Cables (BC00202)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Serial to Parallel Converter IV:

    Product Data Sheets

    Application Diagrams
