Industrial > Peripheral Switching & Sharing

click photo to enlarge

SW552A

Photo may show similar product

Other views

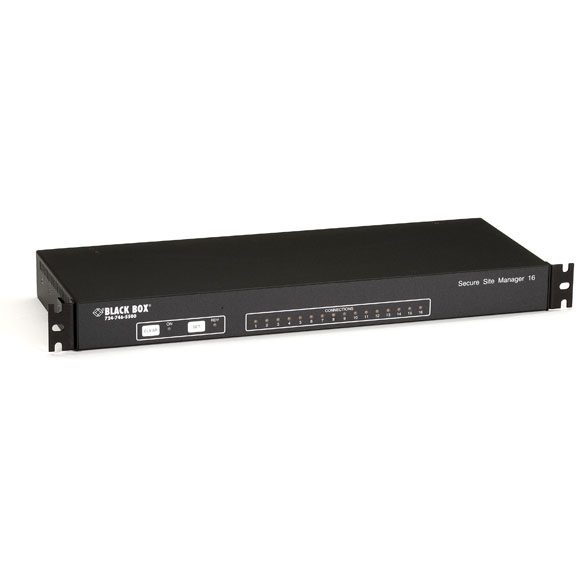

Secure Site Manager, 16-Port

Secure access to your network equipment’s serial console ports from anywhere!

SW552A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Manage your routers or servers remotely.
  • Provides in-band and out-of-band access to DB9 RS-232 serial console ports and maintenance ports on UNIX® servers, routers, and any other network equipment that has a serial console port.
  • Share multiple console ports via a single VT100™ terminal or a PC.
  • Access serial ports over the network via SSH connections and simple menu-driven commands, or through a discrete TCP port connection to one of the unit’s serial outputs.

  • Description

    Secure Site Manager, 16-Port


    Quick Facts

  • Manage your routers or servers remotely.
  • Provides in-band and out-of-band access to DB9 RS-232 serial console ports and maintenance ports on UNIX® servers, routers, and any other network equipment that has a serial console port.
  • Share multiple console ports via a single VT100™ terminal or a PC.
  • Access serial ports over the network via SSH connections and simple menu-driven commands, or through a discrete TCP port connection to one of the unit’s serial outputs.

  • Further Details

  • Includes a built-in V.92 modem and a 10BASE-T/100BASE-TX port.
  • Features two command interfaces: a Web browser and a command-driven text interface.
  • Full matrix capability enables you to connect any two ports, even if they have different communications settings.
  • Send buffered console messages via SYSLOG. Each port has 256 KB of buffering.
  • A buffer mode enables individual ports to store parameters and capture data.
  • Alert via SNMP when incoming console messages are captured.
  • Secure! Features SSHv2 encryption, RADIUS authentication, and HTTPS/SSL.
  • Provides two levels of security: one for the supervisor and one for the user.
  • Flash-upgradable firmware.

  • Technical Specifications for Secure Site Manager, 16-Port:

    Coding — 7/8 bits; Even/Odd/No Parity; 1, 2 stop bits
    Compliance — UL®, cUL, FCC Class A
    Data Rate — Up to 115.2 kbps
    Flow Control — X-ON/X-OFF, RTS/CTS, Both, None
    Memory — 256 KB per port; stores parameters and captured data
    Modem — Internal, 56K, V.92
    Timeout — No Activity disconnects: none or 1, 5, 15, 30, or 90 minutes
    CE Approval — Yes
    RoHS — Yes
    Connectors — 10BASE-T/100BASE-TX: (1) RJ-45;
    RS-232: (16) DB9 M
    Indicators — LEDs: Power ON, Ready, (16) Data connection
    Power — 100–240 VAC, 50–60 Hz, 5 watts
    Size — 1.75"H (1U) x 19"W x 6.5"D (4.4 x 48.3 x 16.5 cm)
    Weight — Shipping: 6 lb. (2.7 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Secure Site Manager, 16-Port:

    Manuals

    • Secure Site Manager, 16-Port
      Installation and User Guide (1/7/2012)

    Product Data Sheets

    Application Diagrams


    Connect your Secure Site Manager, 16-Port with:

    Accessory: IC107A-R3

    RS-232 to RS-422 Converter, Standalone

    RS-232 to RS-422 Converter, Standalone

    Accessory: EVMTBMC-0006

    Premium AT Modem Cable, DB9 Female/DB25 Male, 9-Conductor, 24 AWG, 6-ft. (1.8-m)

    Premium AT Modem Cable, DB9 Female/DB25 Male, 9-Conductor, 24 AWG, 6-ft. (1.8-m)

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A Five year warranty is included.

    Extended Two years for one Warranty Available


    Protect your purchase with an additional Two years for oneDouble Diamond™ warranty!
    Cost: $206.00

    Extended Three years for two Warranty Available


    Protect your purchase with an additional Three years for twoDouble Diamond™ warranty!
    Cost: $411.99

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    The most complete product warranty exclusively from Black Box

    The Double Diamond™ Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most products come with a one- or two-year warranty. Some products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life! Standard Warranty features are as follows:

    Worry-Free Purchases

    If your new Black Box® brand products are accidentally damaged, you're covered with this no-questions asked warranty. FREE

    Coverage

    Double Diamond™ is the standard warranty that comes with your new Black Box® brand product. Most products come with a one- or two-year warranty.

    Lifetime Guarantees

    Many products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life.

    Fast Service

    During the warranty period, Black Box® Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Extra Coverage

    Extend your warranty or protect a previously purchased Black Box® brand product* for an additional year for only 10% of the current retail price! And when you do, we give you the second year of extended coverage free! FREE Tech Support Hotline. No cost. No contracts. No kidding!

    No-Risk 45-Day Return Policy

    If it's not right, send it back.
    (Excludes custom built products)

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! Forget It.
    Tech Support Hotline 100% FREE! $$$
    Product SKU Price Quantity
    Secure Site Manager, 16-Port SW552A $2,059.95

    Remote Console Port and Remote Power Manager, 100–120 VAC SW549A-R2 $1,289.95

    Secure Site Manager, 8-Port SW551A $1,849.95
